D-Link xStack DES-3200 Series Reference Guide

xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
165

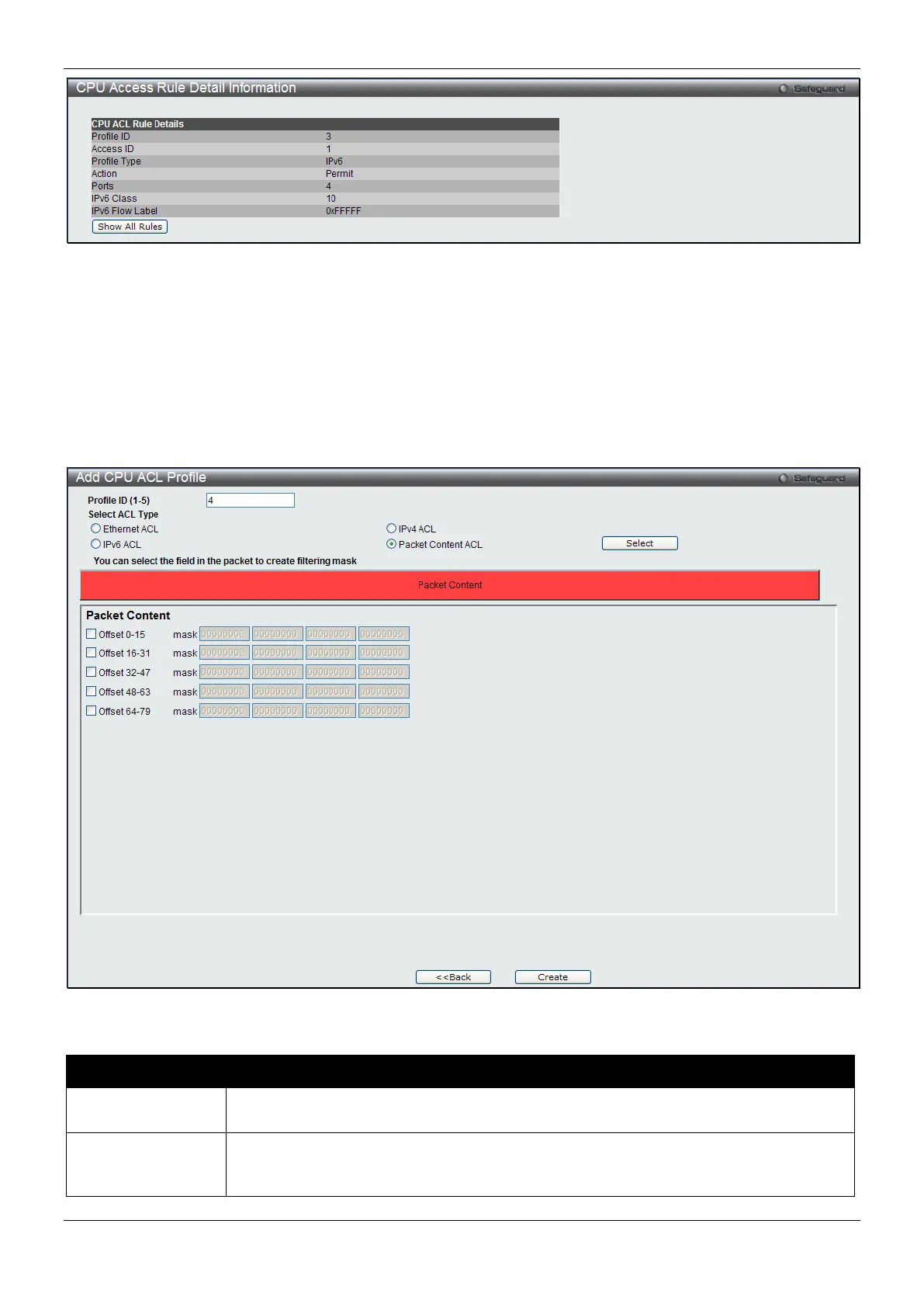

Figure 7-38 CPU Access Rule Detail Information (IPv6 ACL)
Click the Show All Rules button to navigate back to the CPU Access Rule List.
Adding a CPU Packet Content ACL Profile
The window shown below is the Add CPU ACL Profile window for Packet Content. To use specific filtering masks in
this ACL profile, click the packet filtering mask field to highlight it red. This will add more filed to the mask.
After clicking the Add CPU ACL Profile button, the following page will appear:
Figure 7-39 Add CPU ACL Profile (Packet Content ACL)
The fields that can be configured are described below:
Parameter Description
Profile ID (1-5)
Here the user can enter a unique identifier number for this profile set. This value can be
set from 1 to5.
Select ACL Type
Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or packet
content mask. This will change the menu according to the requirements for the type of
profile.
