xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
39
Group
• Add to group – Add a candidate to a group. Clicking this option will reveal the following dialog box for
the user to enter a password for authentication from the Candidate Switch before being added to the
SIM group. Click OK to enter the password or Cancel to exit the dialog box.

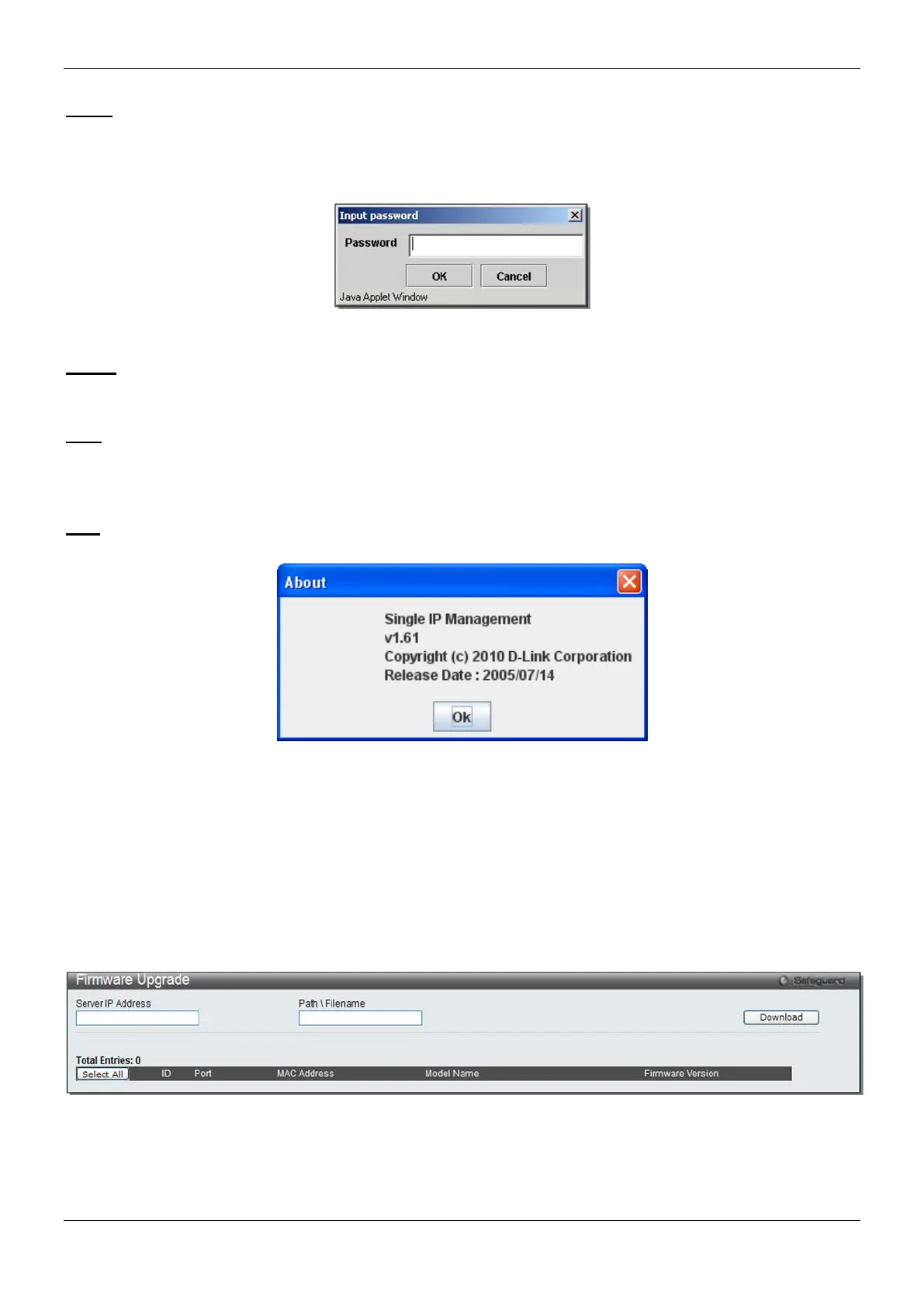

Figure 3-26 Input password window
• Remove from Group – Remove an MS from the group.
Device
• Configure – Will open the Web manager for the specific device.
View
• Refresh – Update the views with the latest status.
• Topology – Display the Topology view.
Help
• About – Will display the SIM information, including the current SIM version.
Figure 3-27 About window
Firmware Upgrade
This screen is used to upgrade the firmware from the Commander Switch to the Member Switch. Member Switches
will be listed in the table and will be specified by ID, Port (port on the CS where the MS resides), MAC Address,
Model Name and Version. To specify a certain Switch for firmware download, click its corresponding check box
under the Port heading. To update the firmware, enter the Server IP Address where the firmware resides and
enter the Path/Filename of the firmware. Click Download to initiate the file transfer.
To view the following window, click Management > Single IP Management > Firmware Upgrade, as show below:
Figure 3-28 Firmware Upgrade window
