Click the Group List link to configure the multicast address group list settings for the specific entry.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
After clicking the Group List
link, the following page will appear:

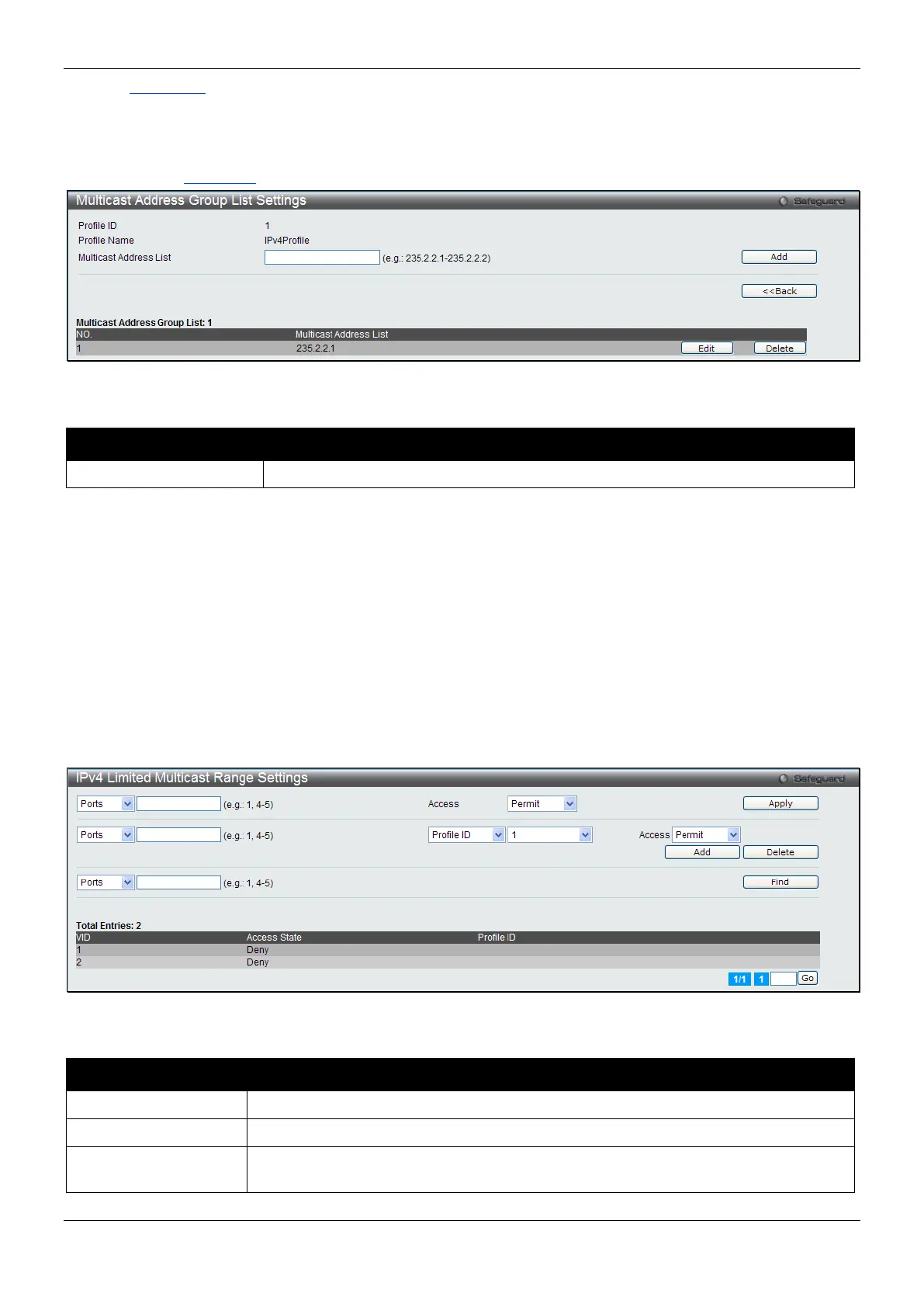

Figure 4-65 Multicast Address Group List Settings window
The fields that can be configured are described below:
Parameter Description
Multicast Address List
Enter the multicast address list.
Click the Add button to add a new entry based on the information entered.
Click the <<Back button to discard the changes made and return to the previous page.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
IPv4 Limited Multicast Range Settings
Users can configure the ports and VLANs on the Switch that will be involved in the Limited IPv4 Multicast Range.
The user can configure the range of multicast ports that will be accepted by the source ports to be forwarded to the
receiver ports.
To view the following window, click L2 Features > Multicast Filtering > IPv4 Multicast Filtering > IPv4 Limited
Multicast Range Settings, as show below:
Figure 4-66 IPv4 Limited Multicast Range Settings window
The fields that can be configured are described below:
Parameter Description
Ports / VID List
Select the appropriate port(s) or VLAN IDs used for the configuration.
Access
Assign access permissions to the ports selected. Options listed are Permit and Deny.
Profile ID / Profile
Name
Use the drop-down menu to select the profile ID or profile name used and then assign
Permit or Deny access to them.
Click the Apply button to accept the changes made.
