Operational East Port
Display the operational east port value.
Admin RPL Port Specify the RPL port used. Options to choose from are West Port, East Port, and
None.
Operational RPL Port
Display the operational RPL port value.
Admin RPL Owner
Specify to enable or disable the RPL owner node.
Operational RPL
Owner
Display the operational RPL owner value.
Protected VLAN(s)
Specify to add or delete the protected VLAN group.
Ring MEL (0-7)
Specify the ring MEL of the R-APS function. The default ring MEL is 1.
Holdoff Time (0-10000)
Specify the hold-off time of the R-APS function. The default hold-off time is 0
milliseconds.
Guard Time (10-20000)
Specify the guard time of the R-APS function. The default guard time is 500
milliseconds.
WTR Time (5-12)
Specify the WTR time of the R-APS function.
Revertive
Specify the state of the R-APS revertive option.
Current Ring State
Display the current Ring state.
Click the Apply button to accept the changes made.
Click the <<Back button to return to the previous window.
After clicking the Sub-Ring Information
link, the following window will appear:

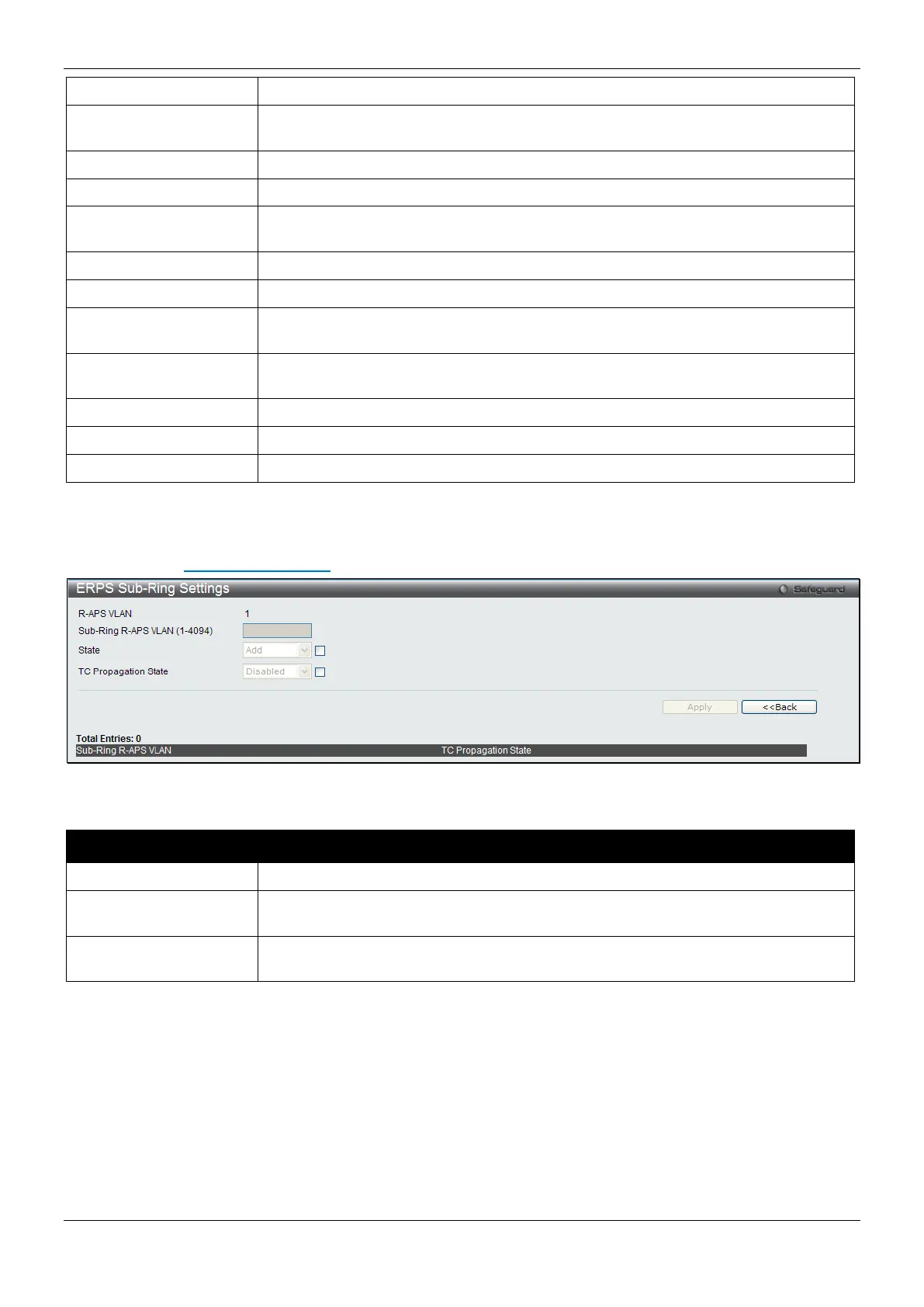

Figure 4-76 ERPS Sub-Ring Settings window
The fields that can be configured are described below:
Parameter Description
Sub-Ring R-APS VLAN
Enter the Sub-Ring R-APS VLAN ID used here.
State Specify the ERPS Sub-Ring state here. Options to choose from are Add and
Delete.
TC Propagation State Specify the TC Propagation state here. Options to choose from are Enabled and
Disabled.
Click the Apply button to accept the changes made.
Click the <<Back button to return to the previous window.
