Chapter 5 L3 Features
IPv4 Static/Default Route Settings
IPv4 Route Table
IPv6 Static/Default Route Settings
IPv4 Static/Default Route Settings
The Switch supports static default routing for IPv4 formatted addressing. Users can create a gateway for IPv4.
Once the gateway has been set, the Switch will send an ARP request packet to the next hop router that has been
set by the user. Once an ARP response has been retrieved by the switch from that next hop, the route becomes
enabled. However, if the ARP entry already exists, an ARP response will not be sent.
Entries into the Switch’s forwarding table can be made using a gateway.
To view the following window, click L3 Features > IPv4 Static/Default Route Settings, as show below:

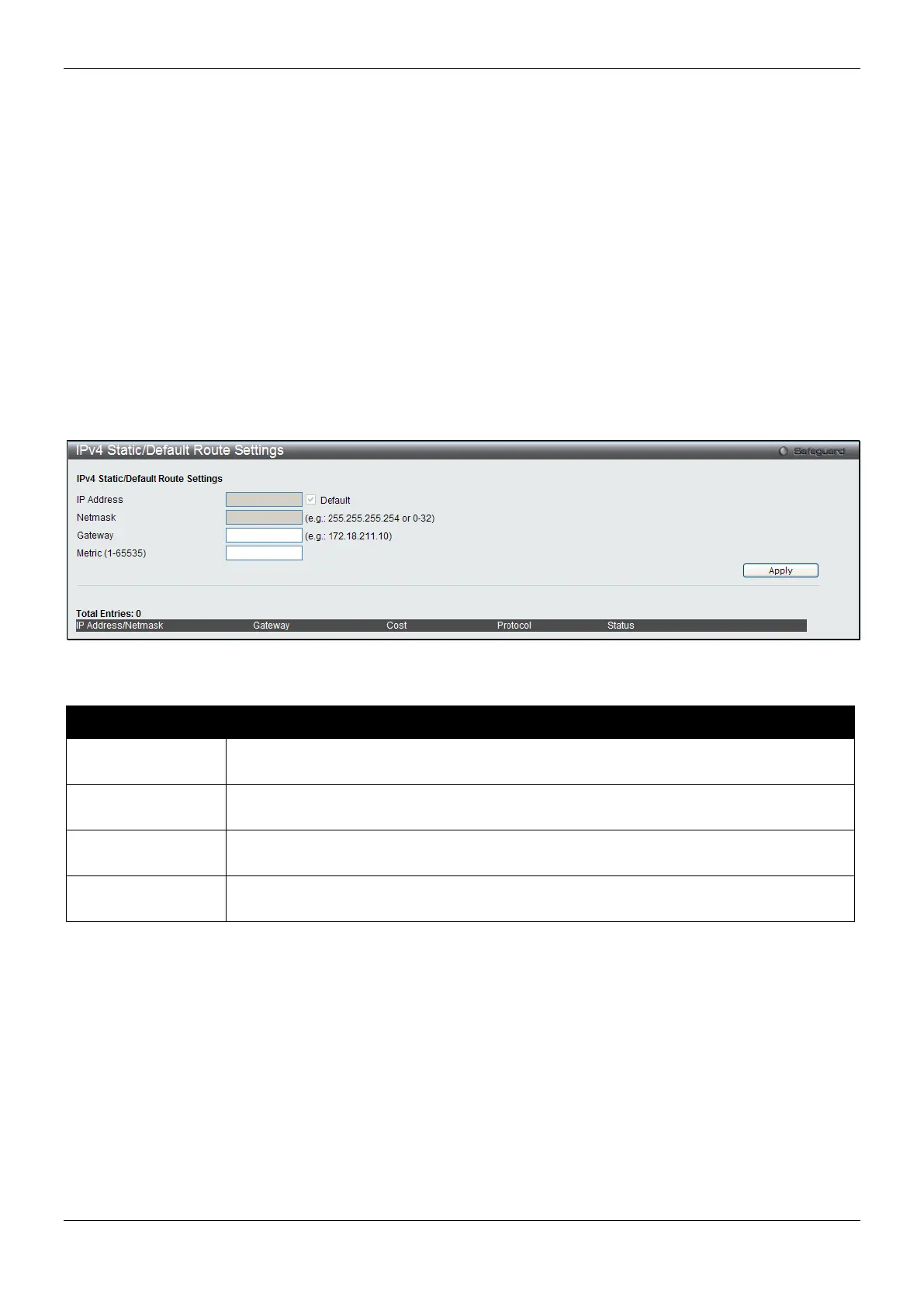

Figure 5-1 IPv4 Static/Default Route Settings window
The fields that can be configured are described below:
Parameter Description
IP Address
This field allows the entry of an IPv4 address to be assigned to the static route. Tick the
Default check box to assign to the default route.
Netmask
This field allows the entry of a subnet mask to be applied to the corresponding subnet
mask of the IP address.
Gateway
This field allows the entry of a Gateway IP Address to be applied to the corresponding
gateway of the IP address.
Metric (1-65535)
Represents the metric value of the IP interface entered into the table. This field may read
a number between 1 and 65535.
Click the Apply button to accept the changes made.
IPv4 Route Table
The IP routing table stores all the routes information of the Switch. This window is used to display all the route
information on the switch.
To view the following window, click L3 Features > IPv4 Route Table, as show below:
