Chapter 10 OAM
CFM
Ethernet OAM
DULD Settings
Cable Diagnostics
CFM
CFM Settings
This window is used to configure the CFM parameters.
To view this window, click OAM > CFM > CFM Settings, as shown below:

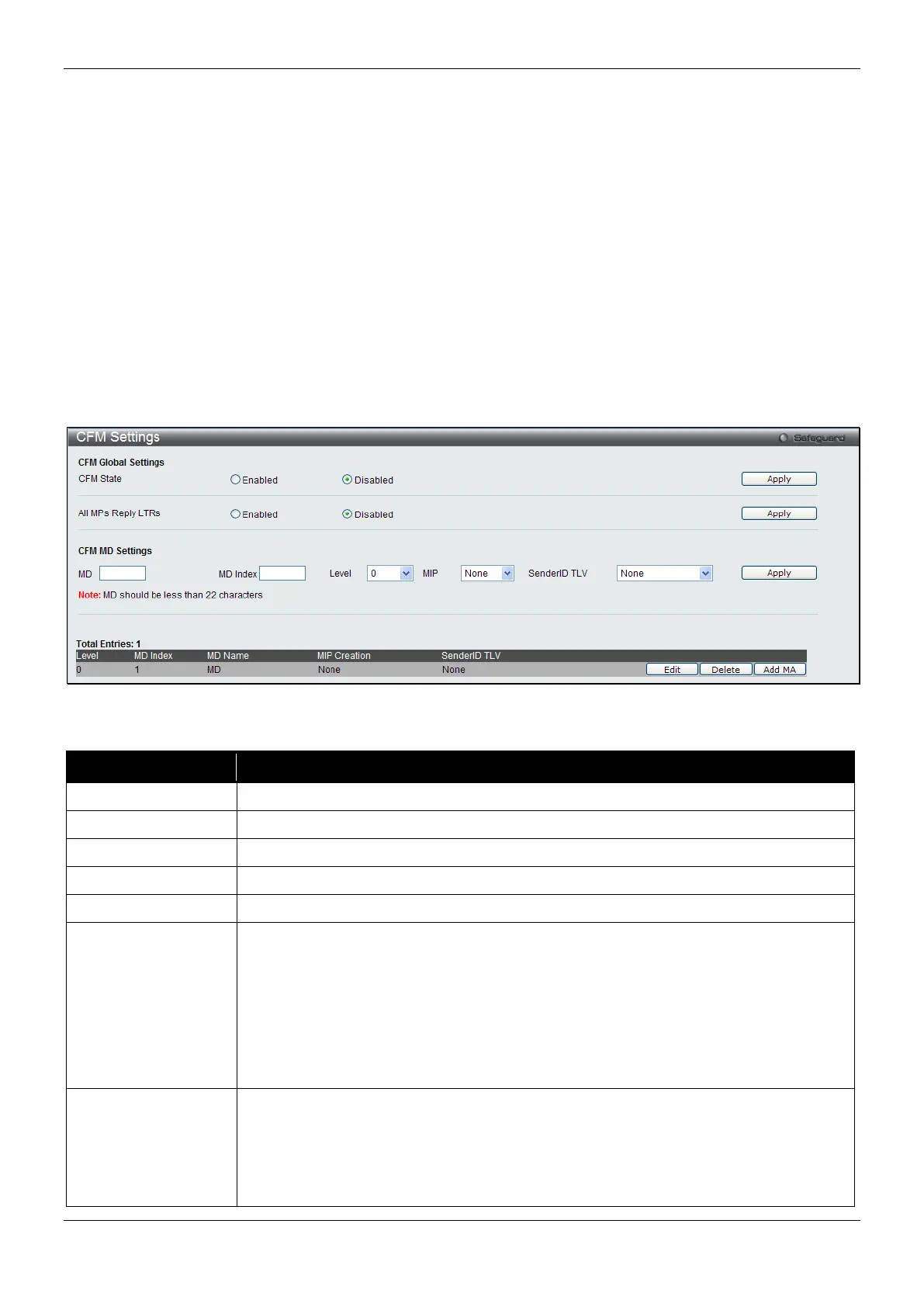

Figure 10-1 CFM Settings Window
The fields that can be configured are described below:
Parameter Description
CFM State
Click to enable or disable the CFM feature.
All MPs Reply LTRs
Click to enable or disable all MPs to reply LTRs.
MD
Enter the maintenance domain name.
MD Index
Specify the maintenance domain index used.
Level
Use the drop-down menu to select the maintenance domain level.
MIP
This is the control creations of MIPs.
None – Don’t create MIPs. This is the default value.
Auto – MIPs can always be created on any ports in this MD, if that port is not
configured with a MEP of this MD. For the intermediate switch in a MA, the setting must
be auto in order for the MIPs to be created on this device.
Explicit – MIPs can be created on any ports in this MD, only if the next existent lower
level has a MEP configured on that port, and that port is not configured with a MEP of
this MD.
SenderID TLV
This is the control transmission of the SenderID TLV.
None – Don’t transmit sender ID TLV. This is the default value.
Chassis – Transmit sender ID TLV with chassis ID information.
Manage – Transmit sender ID TLV with managed address information.
Chassis Manage – Transmit sender ID TLV with chassis ID information and manage
