D-Link xStack DES-3200 Series Reference Guide

xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
195
Member Ports
Enter the list of ports that have been configured for the Guest VLAN.
From Port / To Port
Use the drop-down menus to select a range of ports to be configured for MAC-based
access control.
State
Use this drop-down menu to enable or disable MAC-based access control on the port
or range of ports selected in the Port Settings section of this window.
Mode
Toggle between Port-based and Host-based.
Aging Time (1-1440) Enter a value between 1 and 1440 minutes. The default is 1440. To set this value to
have no aging time, select the Infinite option.
Block Time (0-300)
Enter a value between 0 and 300 seconds. The default is 300.
Max User (1-1000) Enter the maximum amount of users of the Switch. Tick the No Limit check box to
have 1000 users.
Click the Apply button to accept the changes made for each individual section.
Click the Add button to add a new entry based on the information entered.
Click the Delete button to remove the specified entry.
MAC-based Access Control Local Settings
This window is used to configure a list of MAC addresses, along with their corresponding target VLAN, which will
be authenticated for the Switch. Once a queried MAC address is matched in this window, it will be placed in the
VLAN associated with it here. The Switch administrator may enter up to 128 MAC addresses to be authenticated
using the local method configured here.
To view this window, click Security > MAC-based Access Control (MAC) > MAC-based Access Control Local
Settings as shown below:

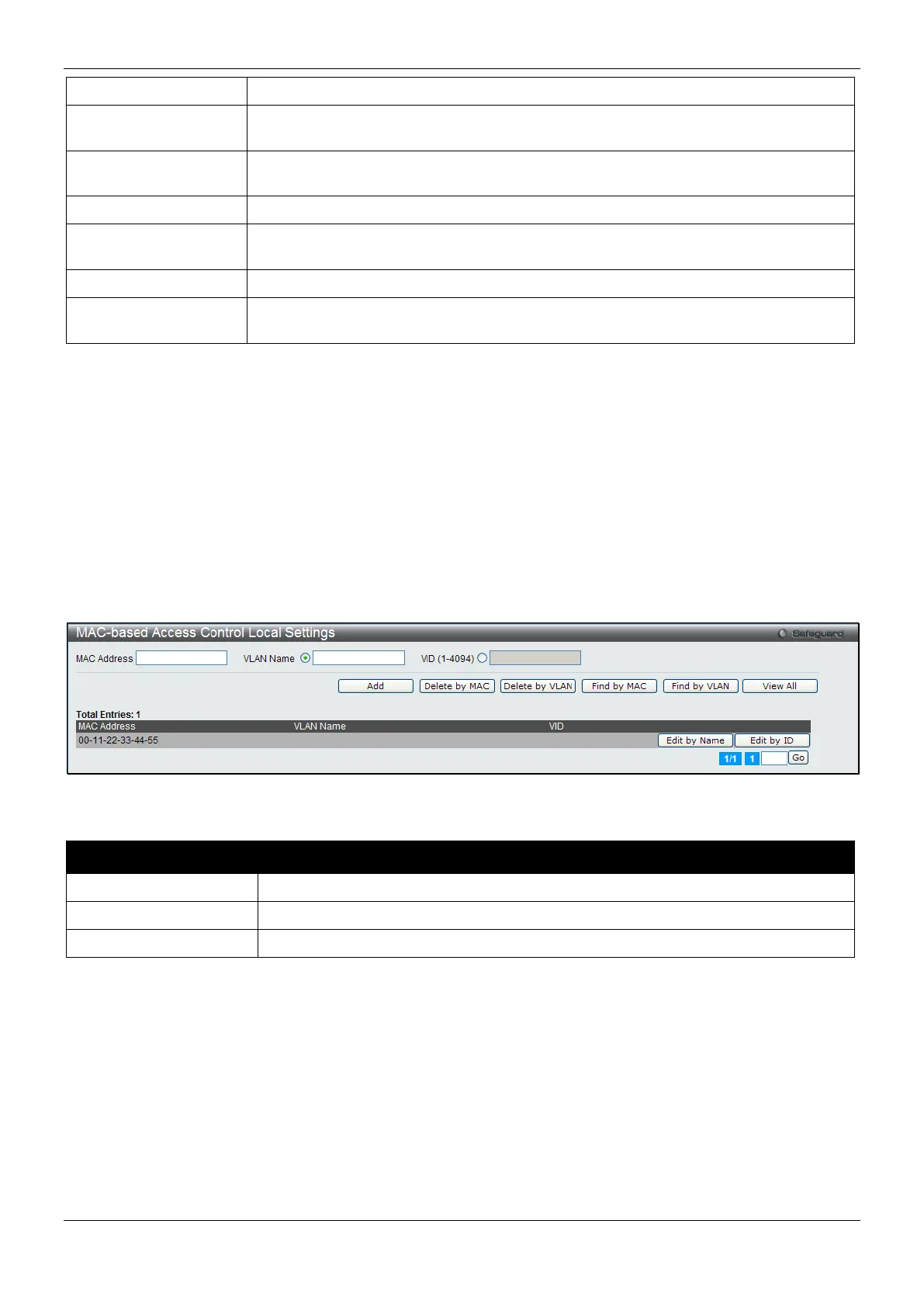

Figure 8-33 MAC-based Access Control Local Settings window
The fields that can be configured are described below:
Parameter Description
MAC address
Enter the MAC address that will be added to the local authentication list here.
VLAN Name
Enter the VLAN name of the corresponding MAC address here.
VID (1-4094)
Enter the VLAN ID of the corresponding MAC address here.
Click the Add button to add a new entry based on the information entered.
Click the Delete by MAC button to remove the specific entry based on the MAC address entered.
Click the Delete by VLAN button to remove the specific entry based on the VLAN name or ID entered.
Click the Find by MAC button to locate a specific entry based on the MAC address entered.
Click the Find by VLAN button to locate a specific entry based on the VLAN name or ID entered.
Click the View All button to display all the existing entries.
Click the Edit by Name to modify the specific VLAN name.
Click the Edit by ID button to modify the specific VLAN ID.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
To change the selected MAC address’ VLAN Name, the user can click the Edit by Name button.
