Double VLAN Settings
This window is used to enable or disable the double VLAN State settings.
To view this window click, L2 Features > VLAN > Double VLAN, as shown below:

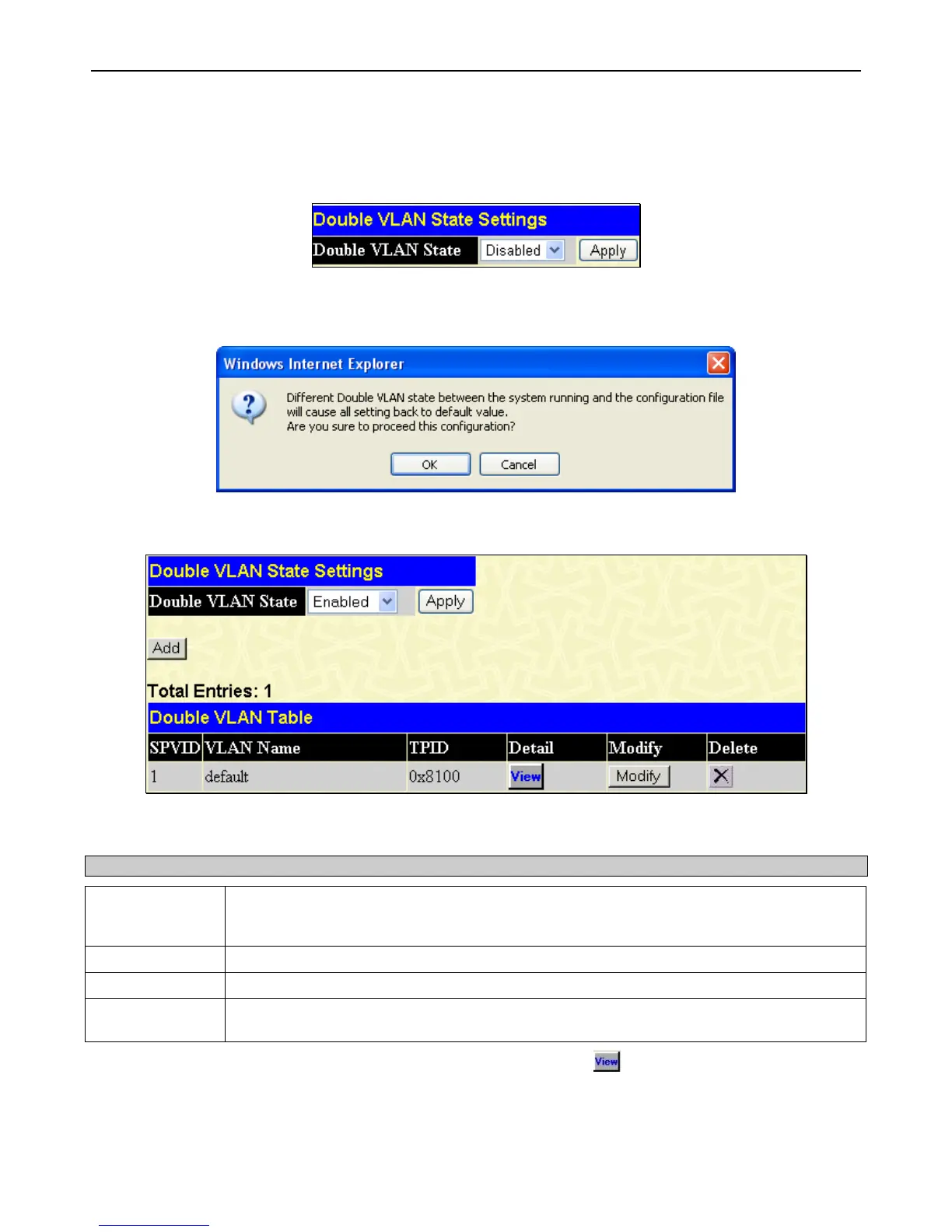

Figure 3 - 9 Double VLAN State Settings window
Choose Enabled using the drop-down menu and click Apply. The user will be prompted with the following warning window.
Click OK to continue.
Figure 3 - 10 Alert window
After being prompted with a success message, the user will be presented with this window to configure for Double VLANs.
Figure 3 - 11 Double VLAN State Settings window
Parameters shown in the previous window are explained below:
Parameter Description
Double VLAN
State
Use the drop-down menu to enable or disable the Double VLAN function on this Switch.
Enabling the Double VLAN will return all previous VLAN configurations to the factory default
settings and remove Static VLAN configurations from the GUI.
SPVID
The VLAN ID number of this potential Service Provider VLAN.
VLAN Name
The name of the VLAN on the Switch.
TPID
The tagged protocol ID of the corresponding VLAN that will be used in identification of this
potential Double VLAN, written in hex form.
The user may view configurations for a Double VLAN by clicking its corresponding button, which will display the following
read-only window.
