ACL (Access Control List)
Time Range
Access Profile Table
ACL Flow Meter
CPU Interface Filtering
Time Range
This window is used in conjunction with the Access Profile feature to determine a starting point and an ending point, based on
days of the week, when an Access Profile configuration will be enabled on the Switch. Once configured here, the time range
settings are to be applied to an access profile rule using the Access Profile Table window. The user may enter up to 64 time range
entries on the Switch.
NOTE: The Time Range commands are based on the time settings of the Switch.
Make sure to configure the time for the Switch appropriately for these commands
using commands listed in the following chapter, Time and SNTP Commands.
To view this window, click ACL > Time Range, as shown below:

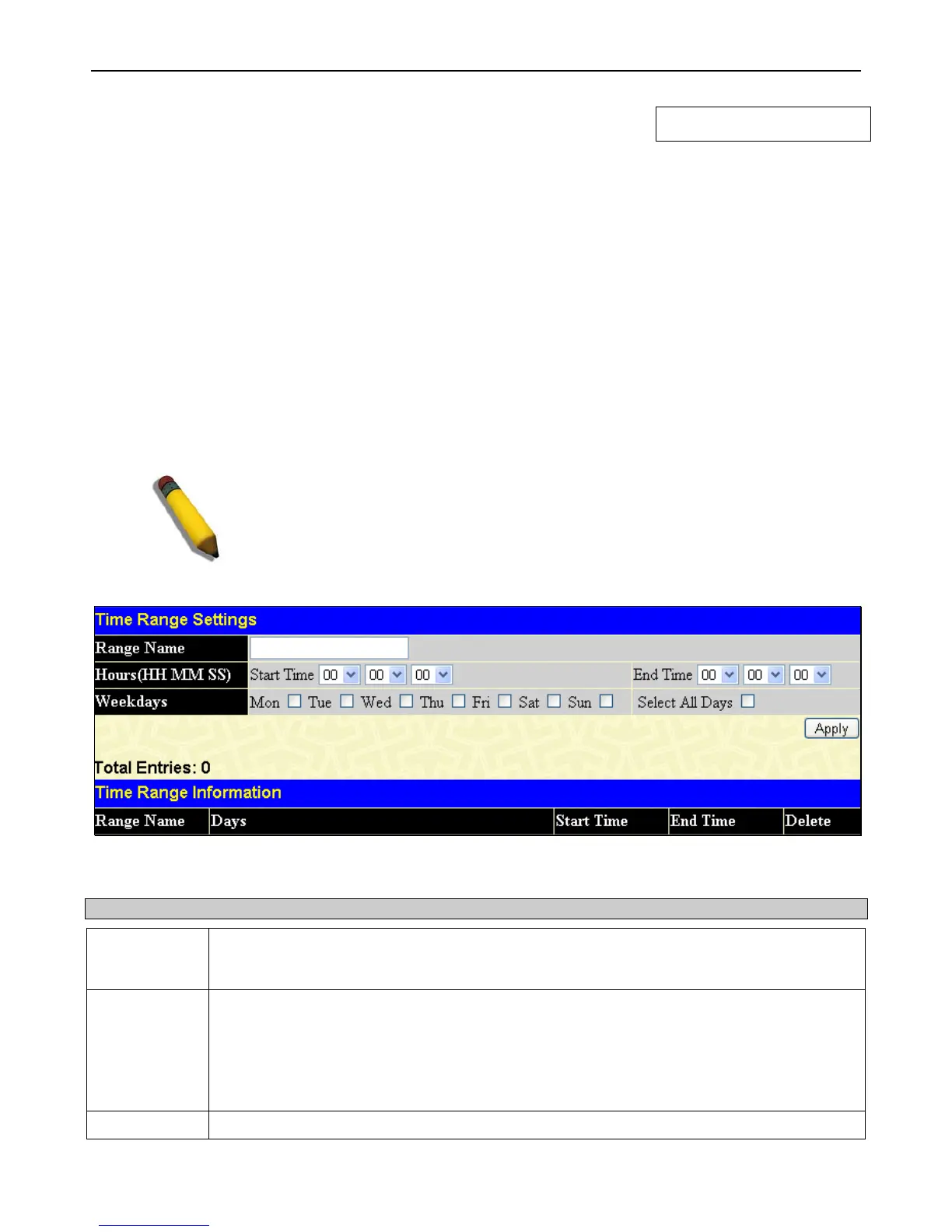

Figure 5 - 1 Time Range Settings window
The user may adjust the following parameters to configure a time range on the Switch:
Parameter Description
Range Name
Enter a name of no more than 32 alphanumeric characters that will be used to identify this time
range on the Switch. This range name will be used in the Access Profile Table window to identify
the access profile and associated rule to be enabled during this time range.
Hours
This parameter is used to set the time in the day that this time range is to be enabled using the
following parameters:
• Start Time – Use this parameter to identify the starting time of the time range, in hours,
minutes and seconds, based on the 24-hour time system.
• End Time – Use this parameter to identify the ending time of the time range, in hours,
minutes and seconds, based on the 24-hour time system.
Weekdays
Use the check boxes to select the corresponding days of the week that this time range is to be
To Next Page
