The user may also view this window if any port/host is authenticated.

Parameter Description

Port List

Enter the port list you wish to find. To view all ports tick the Select All Ports check box.

MAC Address

Displays the MAC address of the client that is present when configured in mac based mode.

It displays “-p” when configured in port based mode.

State

The Authenticator State value can be: Authenticated, Authenticating, or blocked.

VLAN ID

Displays the assigned VLAN ID. If a port/host is authenticated and the authorization Network

is enabled, the assigned VLAN is determined by the VLAN assigned from RADIUS server. If

there is no target VLAN information or invalid VLAN information embedded in RADIUS

message it will be ignored.

Assigned Priority

Displays the assigned priority. If a port is authenticated and the authorization is enabled, the

802.1p default priority can be controlled by the RADIUS server via the passing value. The

value of 802.1p comes from when the RADIUS server overwrites the locally configured ports.

If the assigned priority is not valid (less than 0 or greater than 7) it will be ignored. In this

case, the switch still adopts the local setting. The default priority is used to classify the

priority for untagged packets. The 802.1p priority is on per port basis.

However, for host-based authentication mode, the assigned 802.1p will be assigned for each

host (MAC).

Authenticator Statistics

This table contains the statistics objects for the Authenticator PAE associated with each port. An entry appears in this table for

each port that supports the Authenticator function. Enter the ports you wish to view and click Search.

To view the Authenticator Statistics, click Monitoring > Port Access Control > Authenticator Statistics, as shown below.

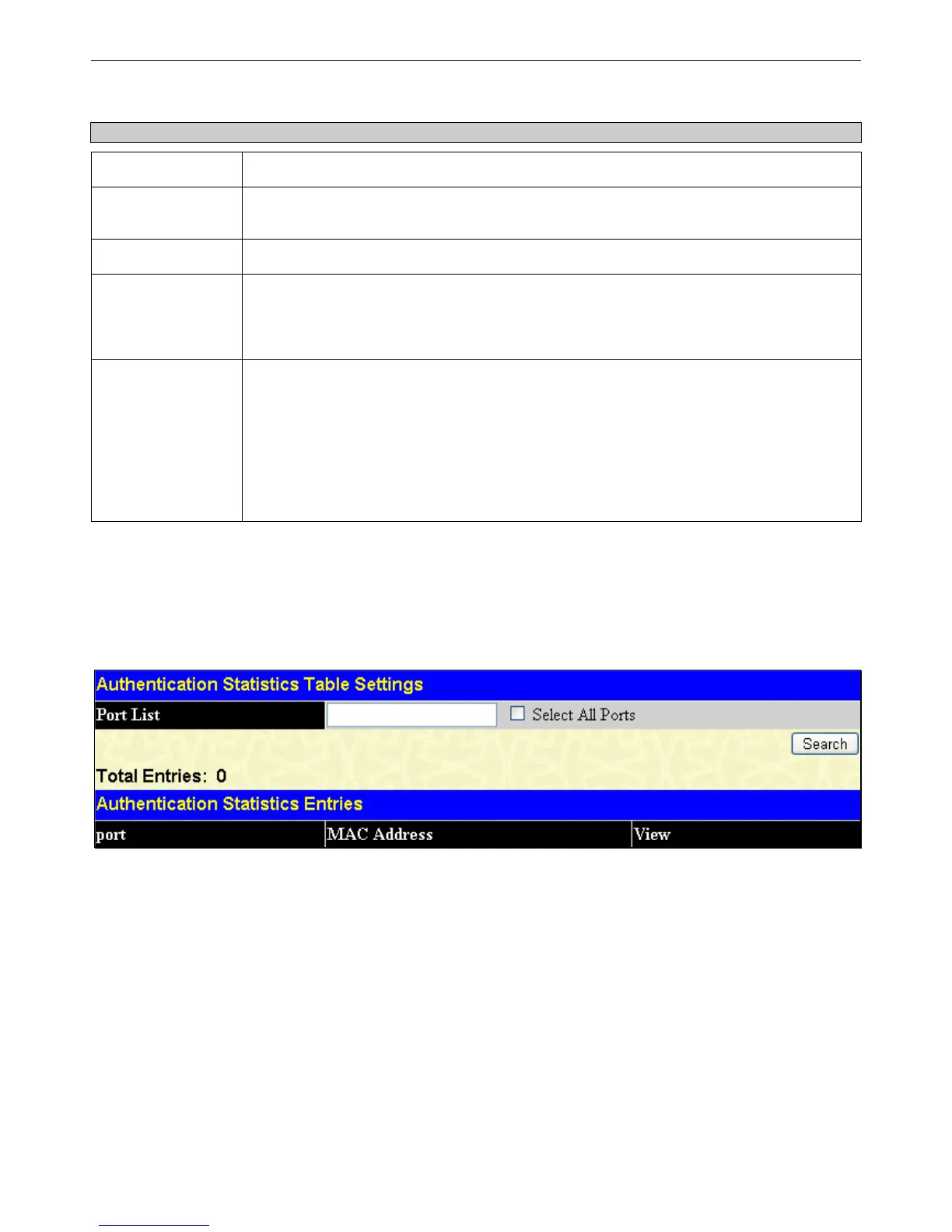

Figure 7 - 24 Authenticator Statistics window

Authenticator Session Statistics

This table contains the session statistics objects for the Authenticator PAE associated with each port. An entry appears in this table

for each port that supports the Authenticator function. Enter the ports you wish to view and click Search.

To view this window, click Monitoring > Port Access Control > Authenticator Session Statistics, as shown below.
