PoE System Settings
This window is used to configure PoE settings on the Switch.
To view this window, click Administration > PoE > PoE System Settings, as shown below:

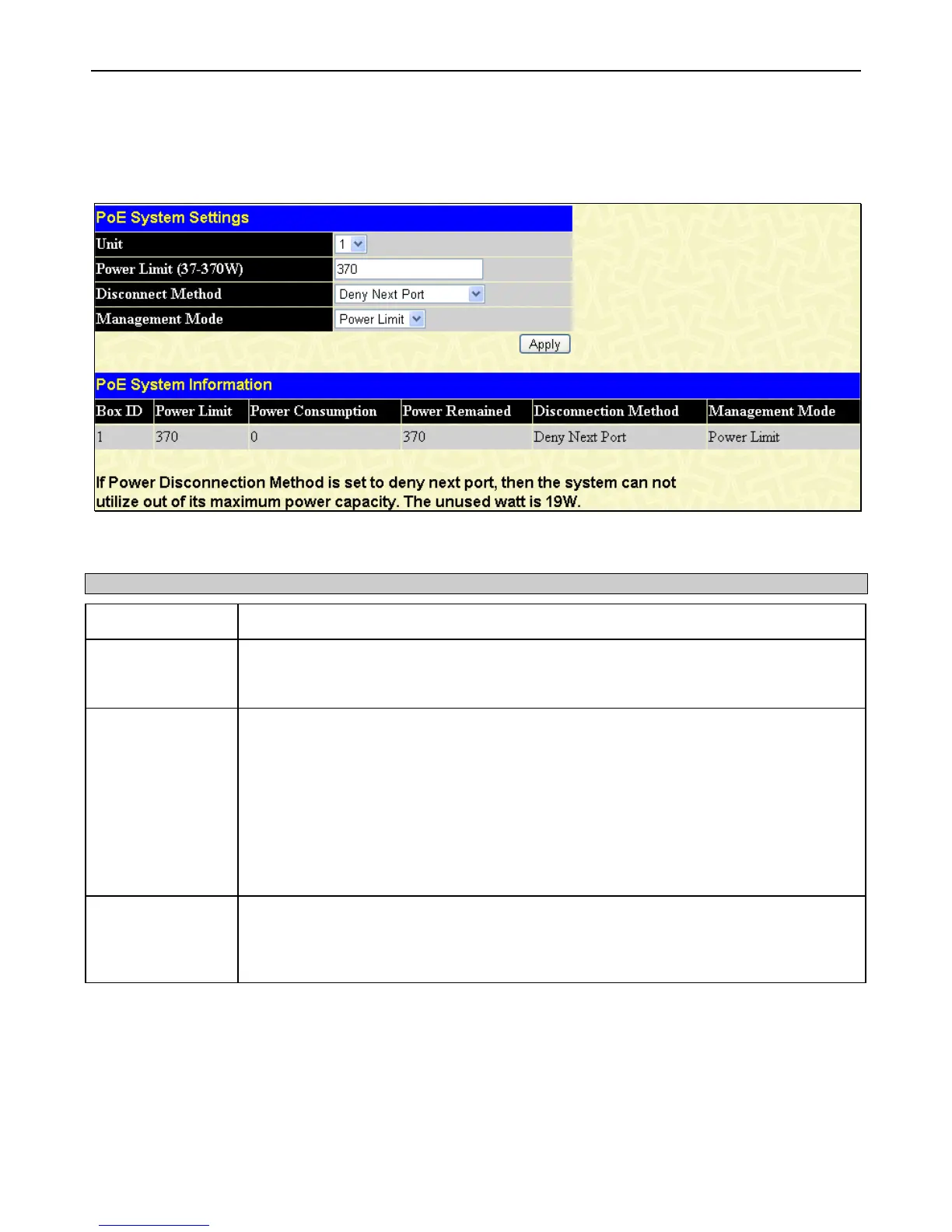

Figure 2 - 87 PoE System Settings window
The following parameters can be configured:
Parameter Description
Unit
Choose the switch in the switch stack for which to configure the PoE settings.
Power Limit (37-
370W)
Sets the limit of power to be used from the Switch’s power source to PoE ports. The user may
configure a Power Limit between 37 and 370W for the DGS-3426P. The default setting is
370W.
Disconnect Method
The PoE controller uses either Deny next port or Deny low priority port to offset the power limit
being exceeded and keep the Switch’s power at a usable level. Use the drop-down menu to
select a Disconnect Method. The default for the Power Disconnect Method is Deny next port.
Both Power Disconnection Methods are described below:
Deny next port – After the power limit has been exceeded, the next port attempting to power
up is denied, regardless of its priority.
Deny low priority port – After the power limit has been exceeded, the next port attempting to
power up causes the port with the lowest priority to shut down to allow the high-priority and
critical priority ports to power up.
Management Mode
Use the drop down menu to select the management mode.
Power Limit – Specifies that the previously set power limit will be implemented.
Auto – Specifies that system will automatically determine the management mode.
Click Apply to implement changes made.
PoE Port Settings
This window is used to configure the PoE port settings on the Switch.
To view this window, click Administration > PoE > PoE Port Settings:
