xStack
®
DGS-3426G Layer 2 Gigabit Ethernet Managed Switch
147
MST Configuration Identification
The following windows allow the user to configure a MSTI instance on the Switch. These settings will uniquely identify a
multiple spanning tree instance set on the Switch. The Switch initially possesses one CIST or Common Internal Spanning Tree of
which the user may modify the parameters for but cannot change the MSTI ID for, and cannot be deleted.
To view this window, click L2 Features > Spanning Tree > MST Configuration Identification, as shown below:

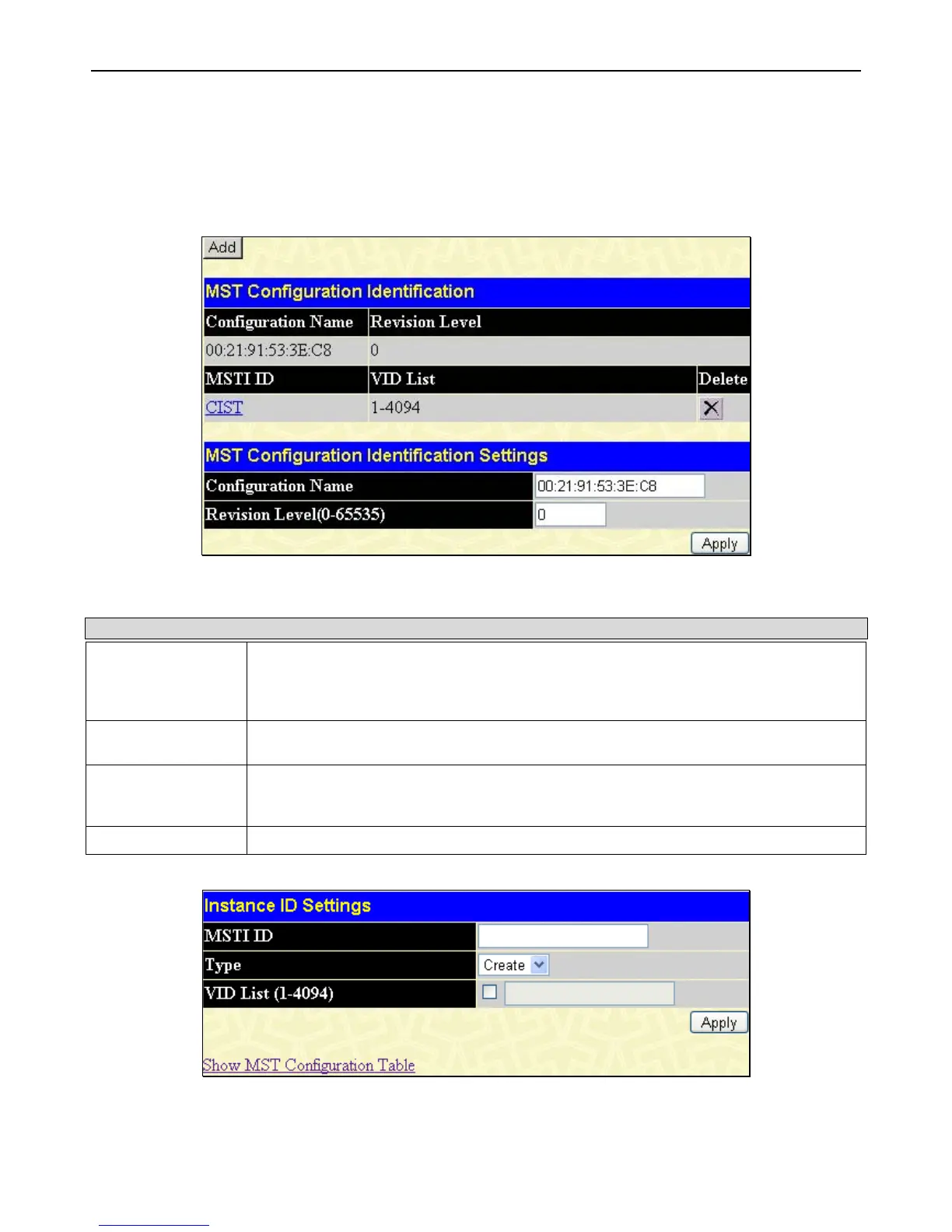

Figure 3 - 45 MST Configuration Identification window
The window above contains the following information:
Parameter Description
Configuration Name
A previously configured name set on the Switch to uniquely identify the MSTI (Multiple
Spanning Tree Instance). If a configuration name is not set, this field will show the MAC
address to the device running MSTP. This field can be set in the STP Bridge Global Settings
window.
Revision Level
This value, along with the Configuration Name will identify the MSTP region configured on
the Switch.
MSTI ID
This field shows the MSTI IDs currently set on the Switch. This field will always have the
CIST MSTI, which may be configured but not deleted. Clicking the hyperlinked name will
open a new window for configuring parameters associated with that particular MSTI.
VID List
This field displays the VLAN IDs associated with the specific MSTI.
Clicking the Add button will reveal the following window to configure:
Figure 3 - 46 Instance ID Settings window (Add)
The user may configure the following parameters to create a MSTI in the Switch.
