xStack
®
DGS-3426G Layer 2 Gigabit Ethernet Managed Switch
305
Packet Size
The Web Manager allows packets received by the Switch, arranged in six groups and classed by size, to be viewed as either a line
graph or a table. Two windows are offered. To select a port to view these statistics for, first select the Switch in the switch stack
by using the Unit drop-down menu and then select the port by using the Port drop-down menu. The user may also use the real-
time graphic of the Switch and/or switch stack at the top of the web page by simply clicking on a port.
To view this window, click Monitoring > Packet Size, as shown below:

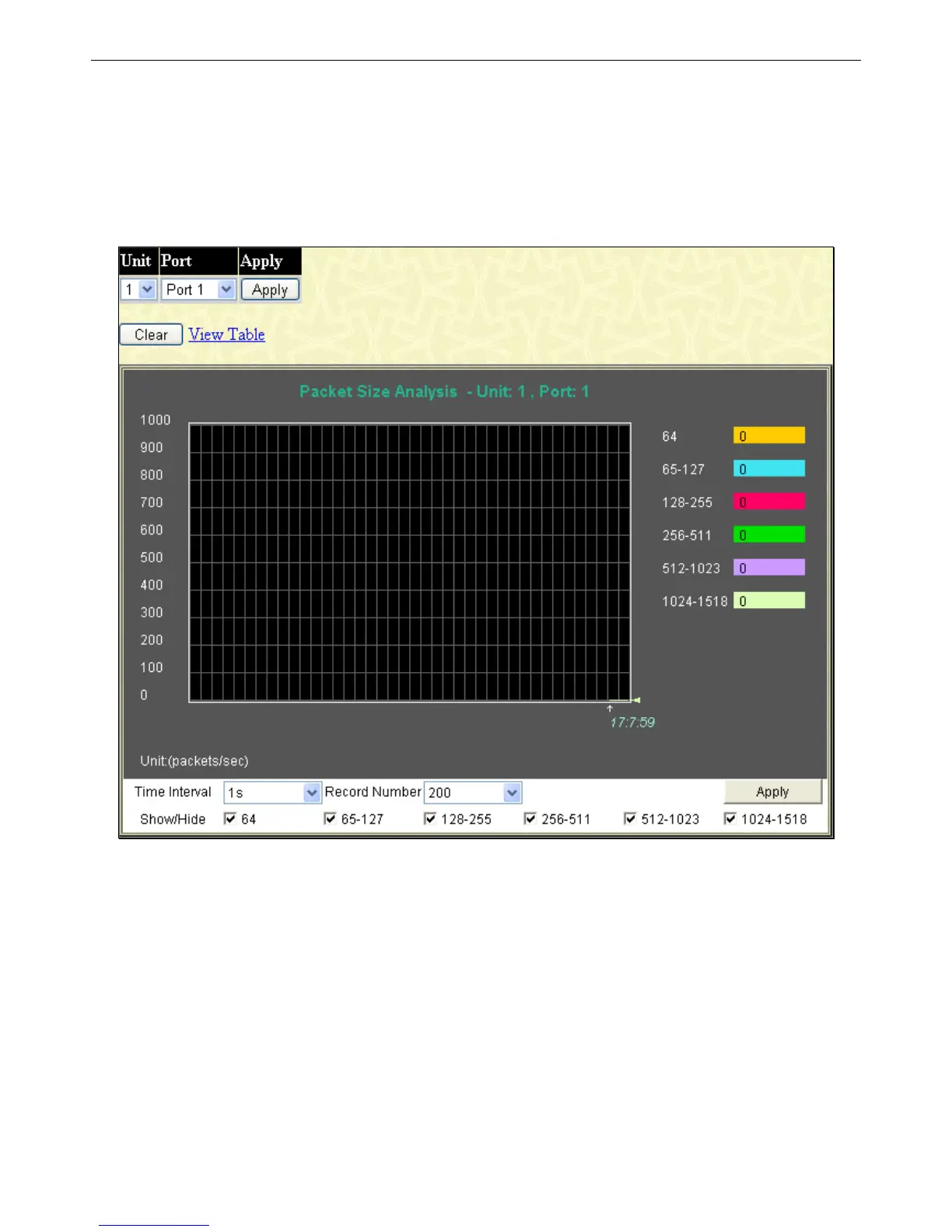

Figure 7 - 17 Rx Size Analysis window (line graph)
