2 and 4094.
State
Use the drop-down menu to enable or disable the selected Multicast VLAN.
Member Port
Enter a port or list of ports to be added to the Multicast VLAN. Member ports will become the
untagged members of the multicast VLAN.
Tagged Member
Port
Enter a port or list of ports to be added to the Multicast VLAN as a tagged member port.
Source Port
Enter a port or list of ports to be added to the Multicast VLAN. Source ports will become the
tagged members of the multicast VLAN.
Replace Source
IP
This field is used to replace the source IP address of incoming packets sent by the host before
being forwarded to the source port.
Click Apply to implement settings made.
To configure the new Multicast VLAN Group List, click the corresponding Modify button in the IGMP Snooping Multicast
VLAN Table which will reveal the following window to be configured.

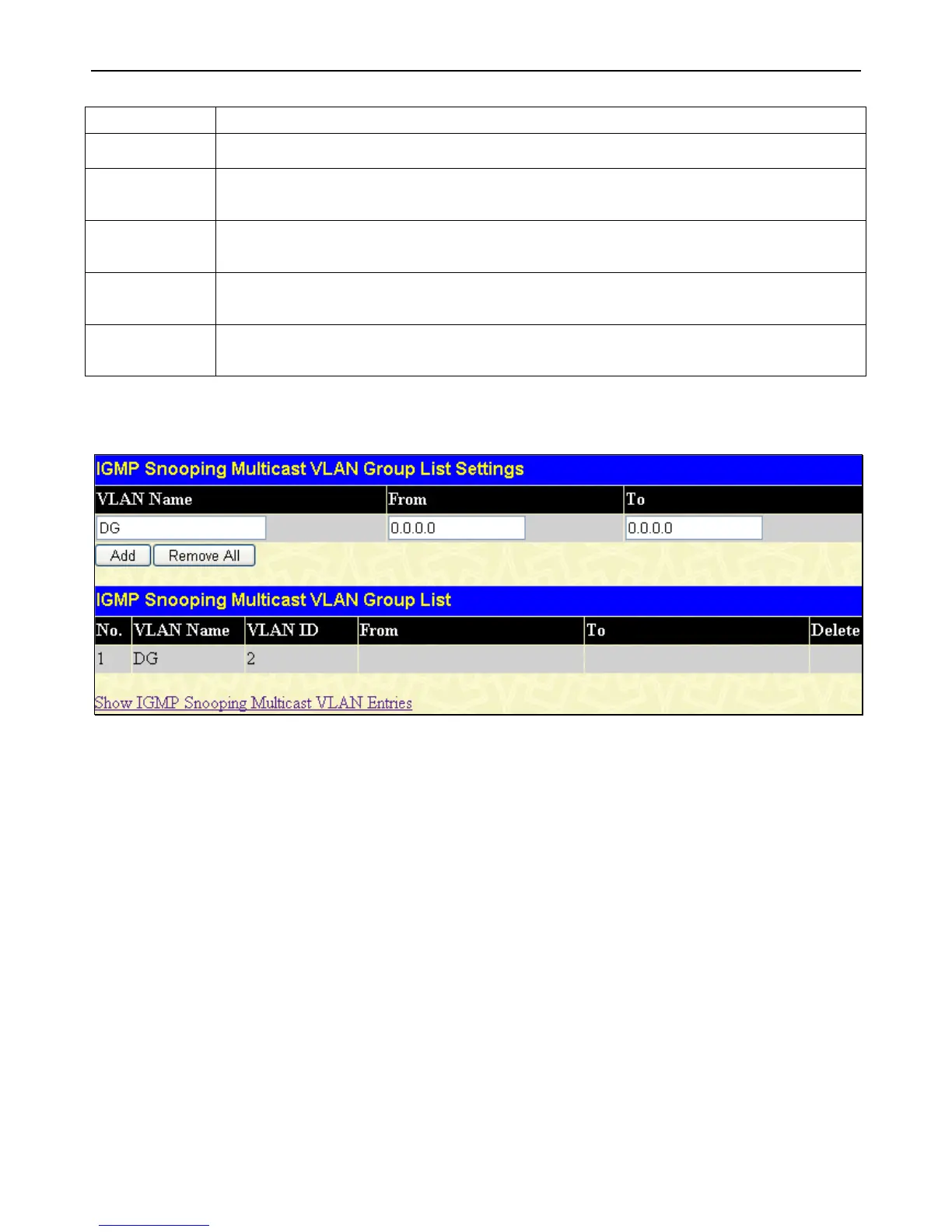

Figure 3 - 35 IGMP Snooping Multicast VLAN Group List Settings
Enter an existing VLAN Name and range and click Add. To remove all entries click the Remove All button.
Limited IP Multicast (IGMP Filtering) Address Range Settings
This window allows the user to specify which multicast address(es) reports are to be received on specified ports on the Switch.
This function, also known as IGMP Filtering, will therefore limit the number of reports received and the number of multicast
groups configured on the Switch. The user may set an IP address or range of IP addresses to accept reports (Permit) or deny
reports (Deny) coming into the specified switch ports.
To view this window, click L2 Features > IGMP Snooping > Limited Multicast Address Range Settings as shown below:
To configure Limited IP Multicast Range:
Choose the port or sequential range of ports using the From/To port drop-down menus.
Use the remaining drop-down menus to configure the parameters described below:
