250 Management: Installing Array Components
5 Connect all the power cables to the array.
6 Turn on the array and the host server.

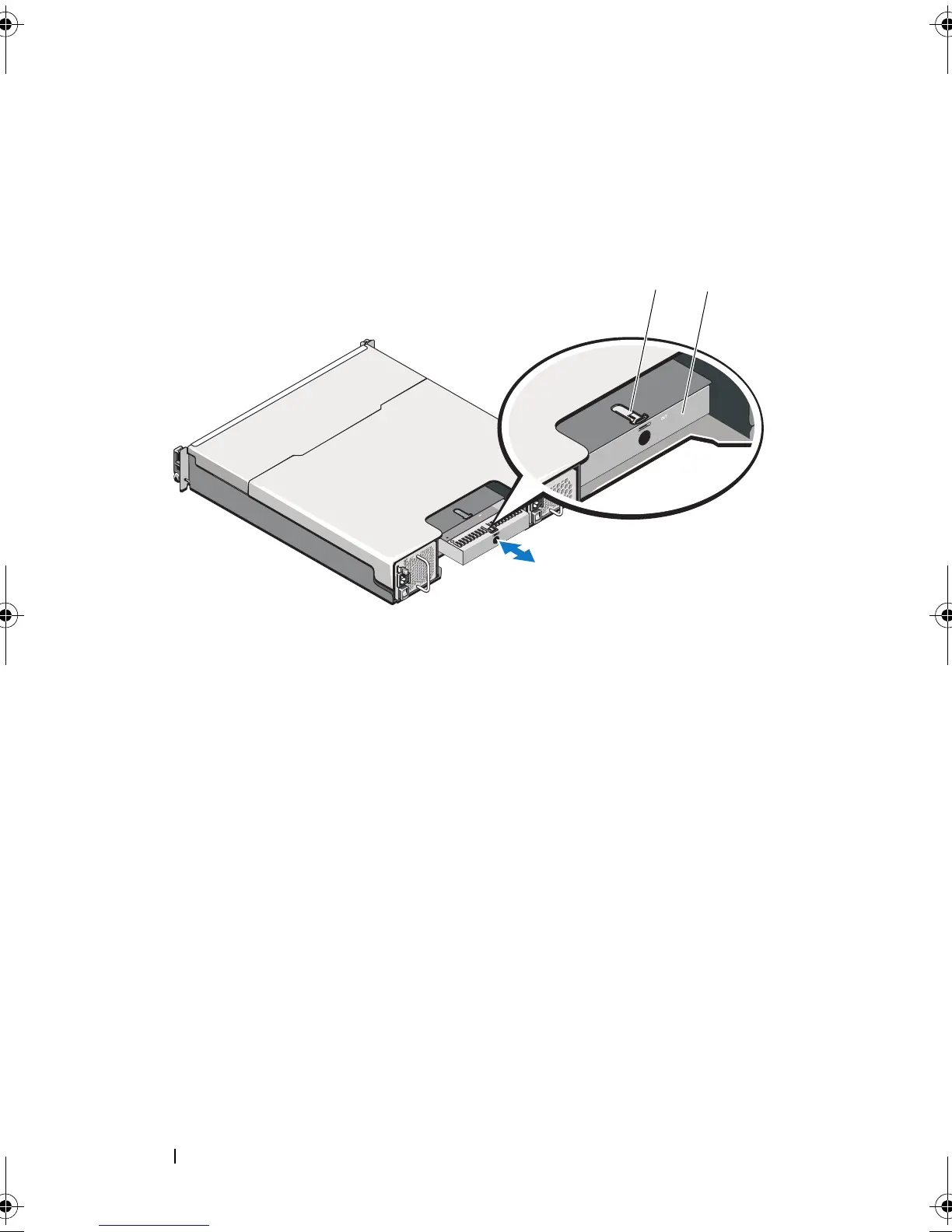

Figure 16-7. Removing and Installing a RAID Controller Module Blank
Installing a RAID Controller Module Blank
To install a RAID controller module blank:
1
Align the blank with the RAID controller module bay
2 Insert the blank into the chassis until it clicks into place.
1 release latch 2 RAID controller module blank
1 2
book.book Page 250 Friday, September 23, 2011 2:46 PM

Dell POWERVAULT MD3600F Specifications

General

HDD speed	15000 RPM
RAID levels	0, 1, 5, 6, 10
Data transfer rate	8 Gbit/s
Storage drive size	3.5 \
Storage drive capacity	600 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	3.6 TB
Maximum supported storage capacity	36 TB
Number of storage drives installed	6
Number of storage drives supported	12
Chassis type	-
Product color	Gray
LED indicators	Power, Status
AC input voltage	90-264 V
AC input frequency	47/63 Hz
Number of power supply units	1
Power supply unit (PSU) capacity	600 W
Operating altitude	-16 - 3048 m
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	561 mm
Width	446.3 mm
Height	86.8 mm
Weight	29300 g
