Delta ASDA Series User Manual

Introduction of PR Operation ASDA Series Application Note
1-6 March, 2015
Click Change to change the setting.

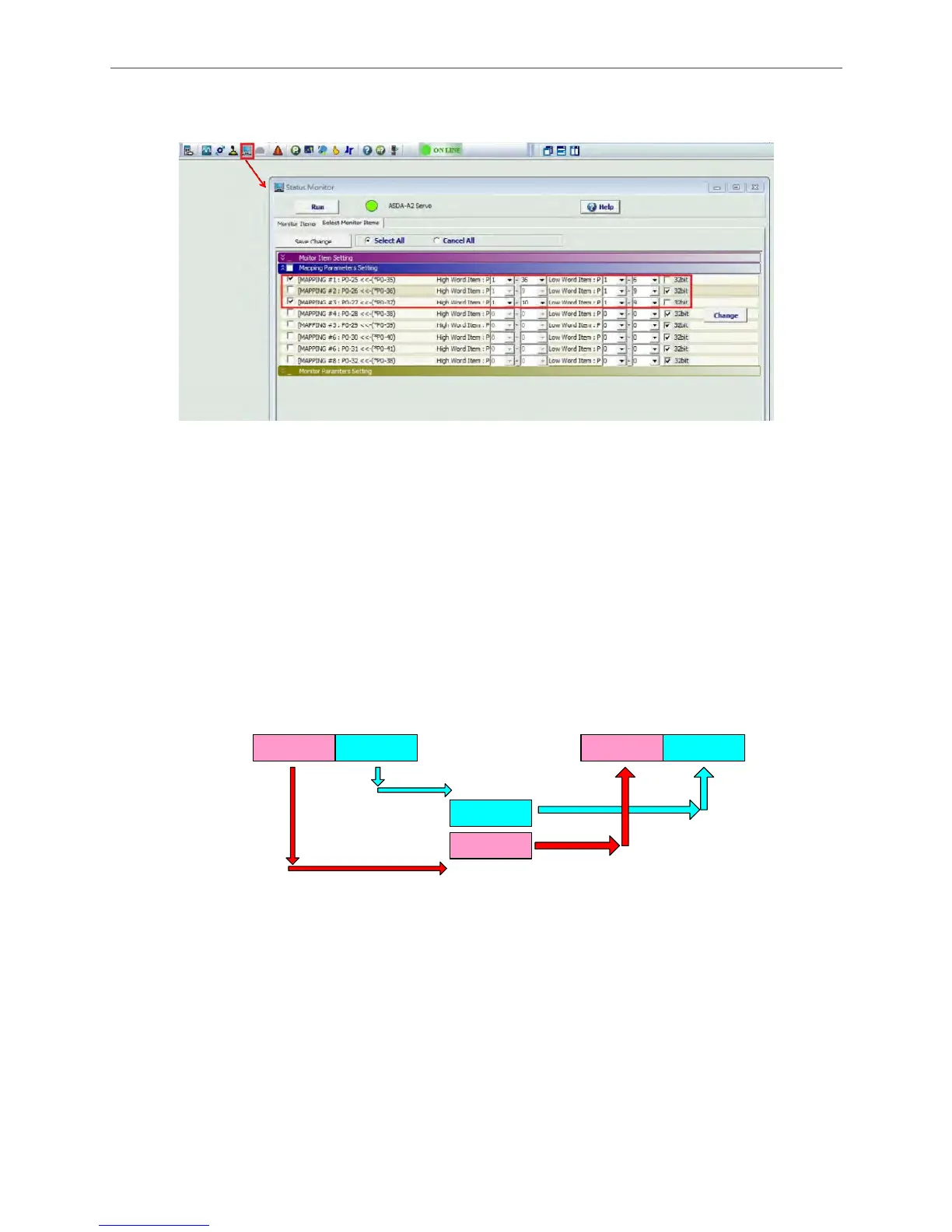

Figure 1.6 Using Status Monitor to Configure Mapping Parameter
The size of mapping index and mapping content is 32-bit. A mapping parameter can map to two
16-bit parameters. The parameter content specified by the low-word will be mapped to the
low-word of the mapped content. The parameter content specified by the high-word will be
mapped to the high-word of the mapped content. For example, P1-06 and P1-36 are both
parameters of 16-bit; In P0-37, when 0x0106 is written into the low-word and 0x0124 is written
into the high-word, the low-word of P0-27 will show the content of P1-06 and the high-word will
show the content of P1-36. See Figure 1.7.
0x0123
0x5678
0x0124 0x0106
Mapping Parameter
P0-27
0x01230x5678
16- bit
Parameters
P1-06
P1-36
Index of Mapping Parameter
P0-37
Format of Data: 0GAB
G: Parameter Group
AB: Parameter # in Hex.
Figure 1.7 Example of Mapping a 16-bit Parameter
