3.3.3.2 Camshaft is Disabled and Label Positioning
The label positioning sensor determines the disengagement of camshaft and the outstretched
part positioning. It can be adjusted by different label lengths and different demand. See Figure
3.3.4 for the adjustment of outstretched part positioning.

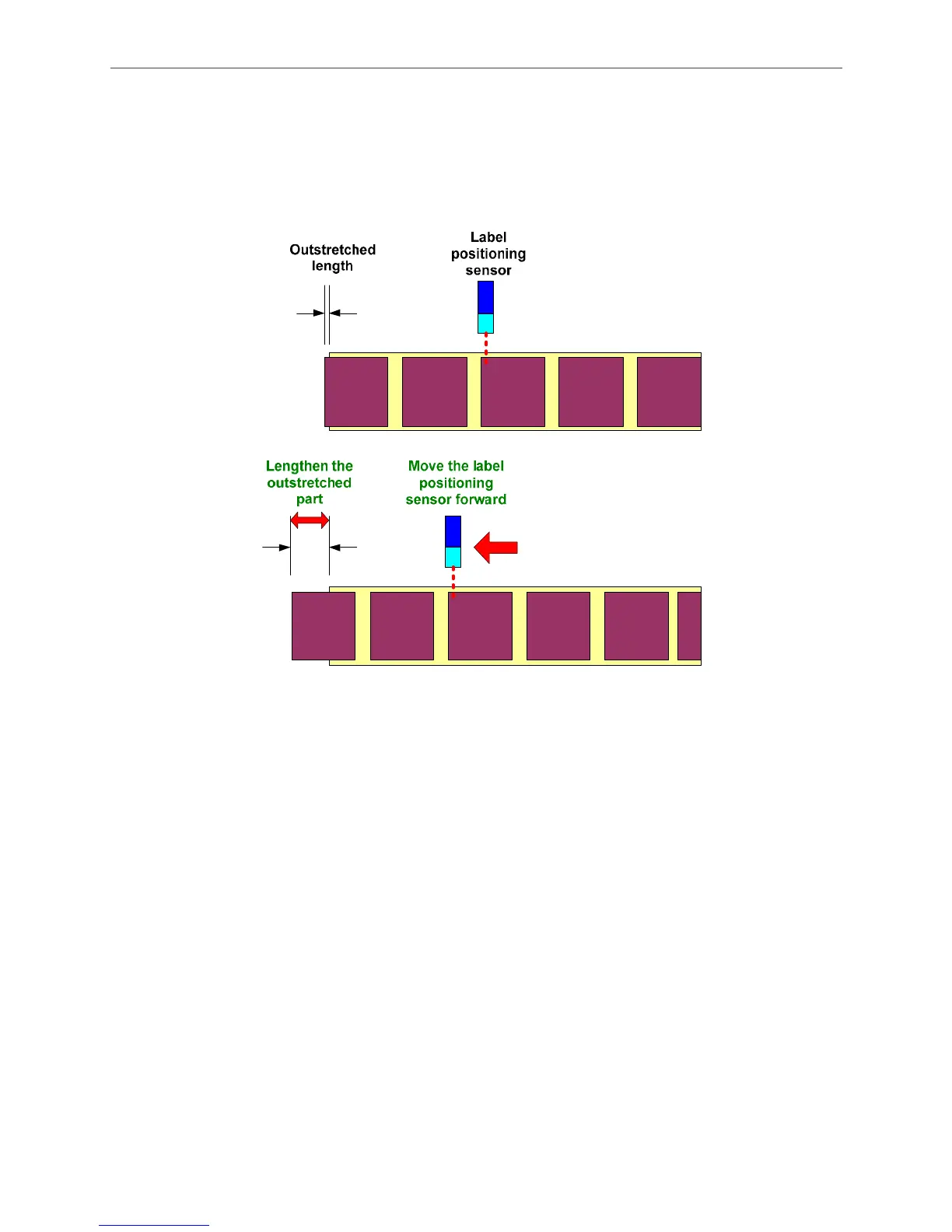

Figure 3.3.4 Adjust the outstretched part positioning
The label positioning sensor is used to control the time the camshaft disengages, prepare the
label for the next cycle and control its outstretched part positioning (the stop position). This signal
sets up the trigger event and calls the corresponding PR to complete the disengaged control of
the camshaft and the outstretched length of the label. See Figure 3.3.5.
