ASDA Series Application Note Application Examples
March, 2015 3-23
3.2 Application to Winding Machine
3.2.1 Description
This chapter aims at the application of ASDA-A2 on wrapping machine. The configuration
function of tape can be done by electronic cam of ASDA-A2. The main parameters such as the
width of tape, the interval of tape and the length of bobbin can be modified easily. The detailed
description will be elaborated in later parts of this chapter.
3.2.2 System Theorem and Scheme
Bobbin is the master axis. When it rolls, it sends out the pulse to command the slave axis
simultaneously. The slave axis operates by its internal E-cam curve and the master axis to finish
the wrapping on bobbin. ASDA-A2 servo drive is mainly in charge of the configuration of tape.

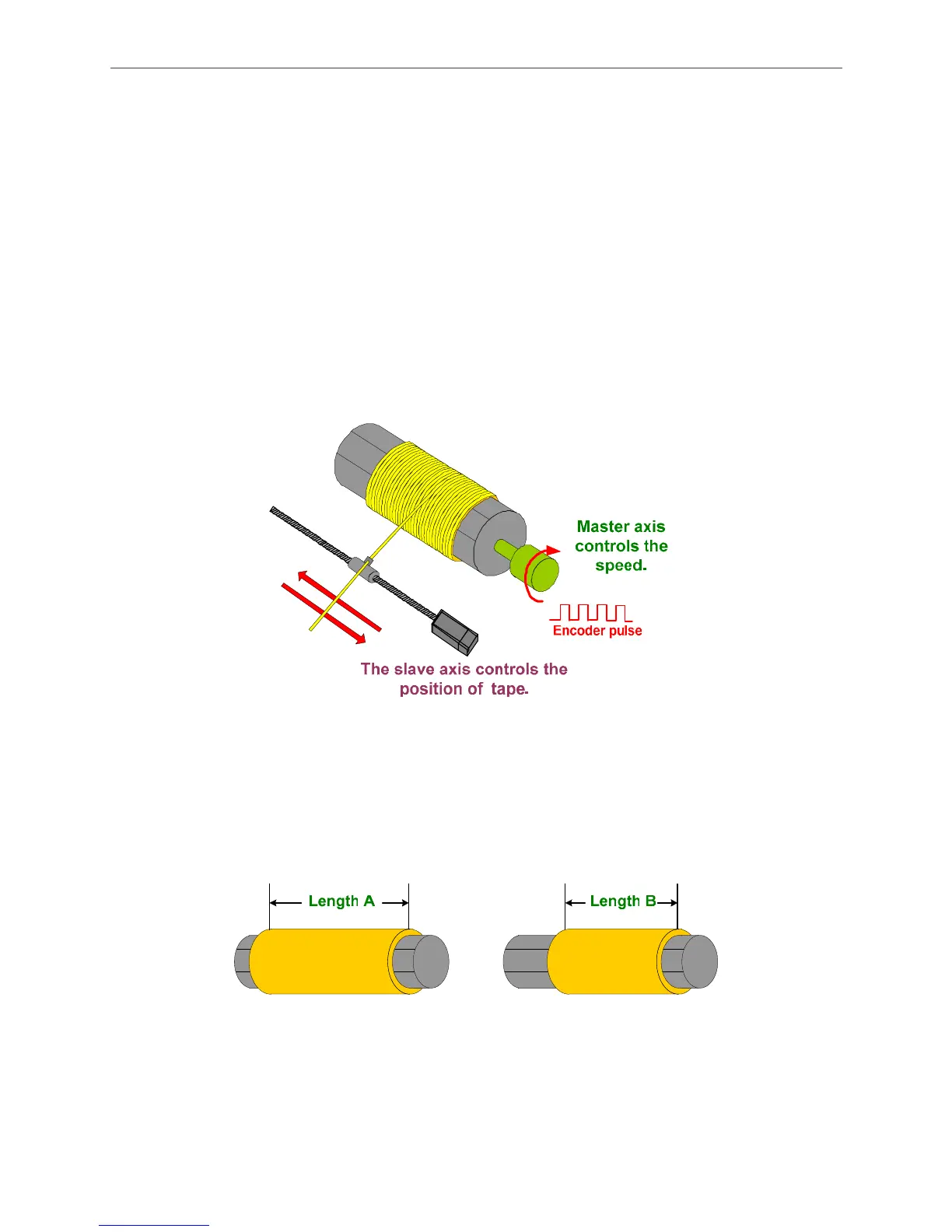

Figure 3.2.1 Wrapping machine system
3.2.2.1 Master Axis
In master axis, when using different length of bobbin, adjusting the parameters of the slave axis
can complete the setting. When the master axis rolls, it sends out the pulse to command the
slave axis.
Figure 3.2.2 Different length of bobbin
