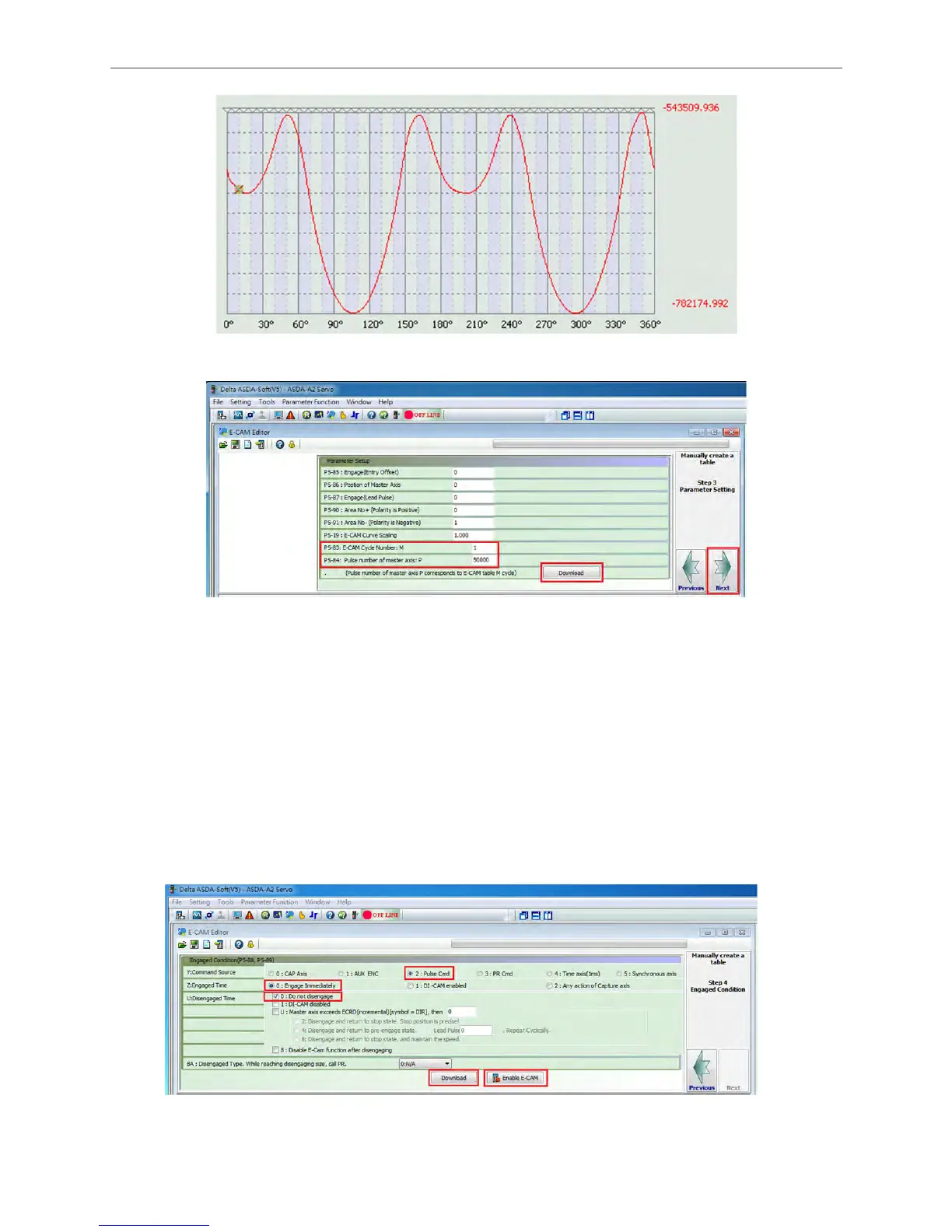

Figure 3.1.23 E-Cam Curve
Figure 4 Setting Pulse Resolution of Master Axis
P5-83 (E-Cam Cycle Number: M): Set to 1. This value is subject to change based on the required
motion.
P5-84 (Pulse number of master axis): P: Set to 50000. The master axis (rectangle carrier) sends
50000 pulses whenever it makes one rotation. This E-Cam curve will be carried out once within
50000 pulses.
When setting completed, click on Download to download the setting values to the servo drive.
Then, click Next.
Parameter Settings for Slave Axis
Figure 3.1.25 E-Cam Parameter Settings
