Installing Hardware

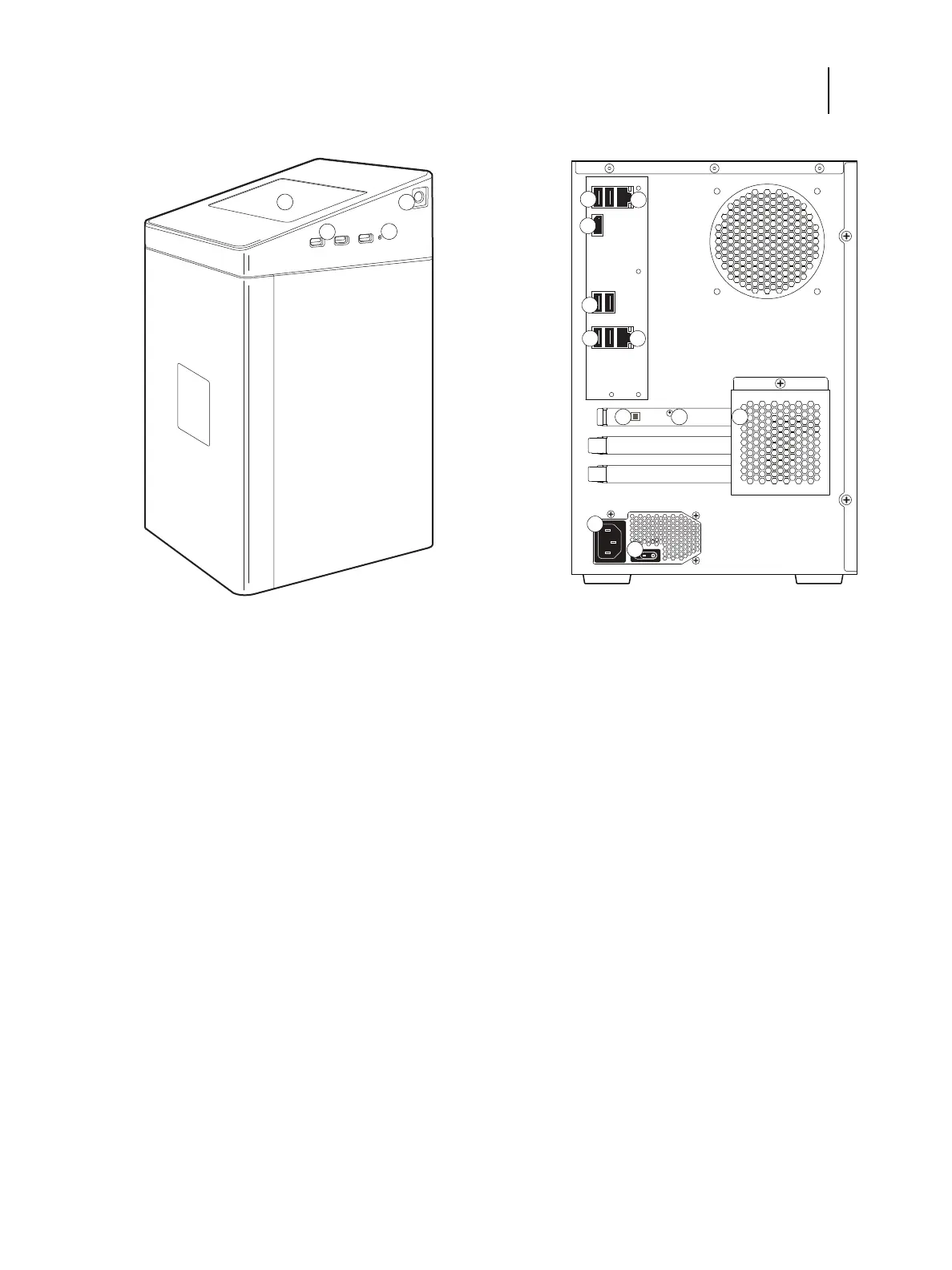

Figure 4: E-35A front and connector panel
Front panel Connector panel
1 Fiery QuickTouch LCD 5 Type A USB2.0 ports (x2)
2 Type A USB 3.0 ports (x3) 6 Network port (upper RJ-45)
3 Reset button 7 Display port
4 Power button 8 Type A USB2.0 ports (x2)
Note: Do not use the USB ports on the Fiery QuickTouch
for keyboard/mouse connections for the service purpose.
Note: Unlabeled connectors/ports are not used.
9 Type A USB3.0 ports (x2)
10
Printer interface (Crossover Ethernet) cable port (Lower
RJ-45)
11 Type B USB port for power synchronization
12 OFF/ON switch for power synchronization
OFF: Left
ON: Right
13 Cover
14 Power connector
15 Power switch
|: Power On
O: Power Off
