FLEX-6000 Signature Series – Maestro User Guide

Page 54

13.3 TURNING ALL TRACKING NOTCH FILTERS ON OR OFF

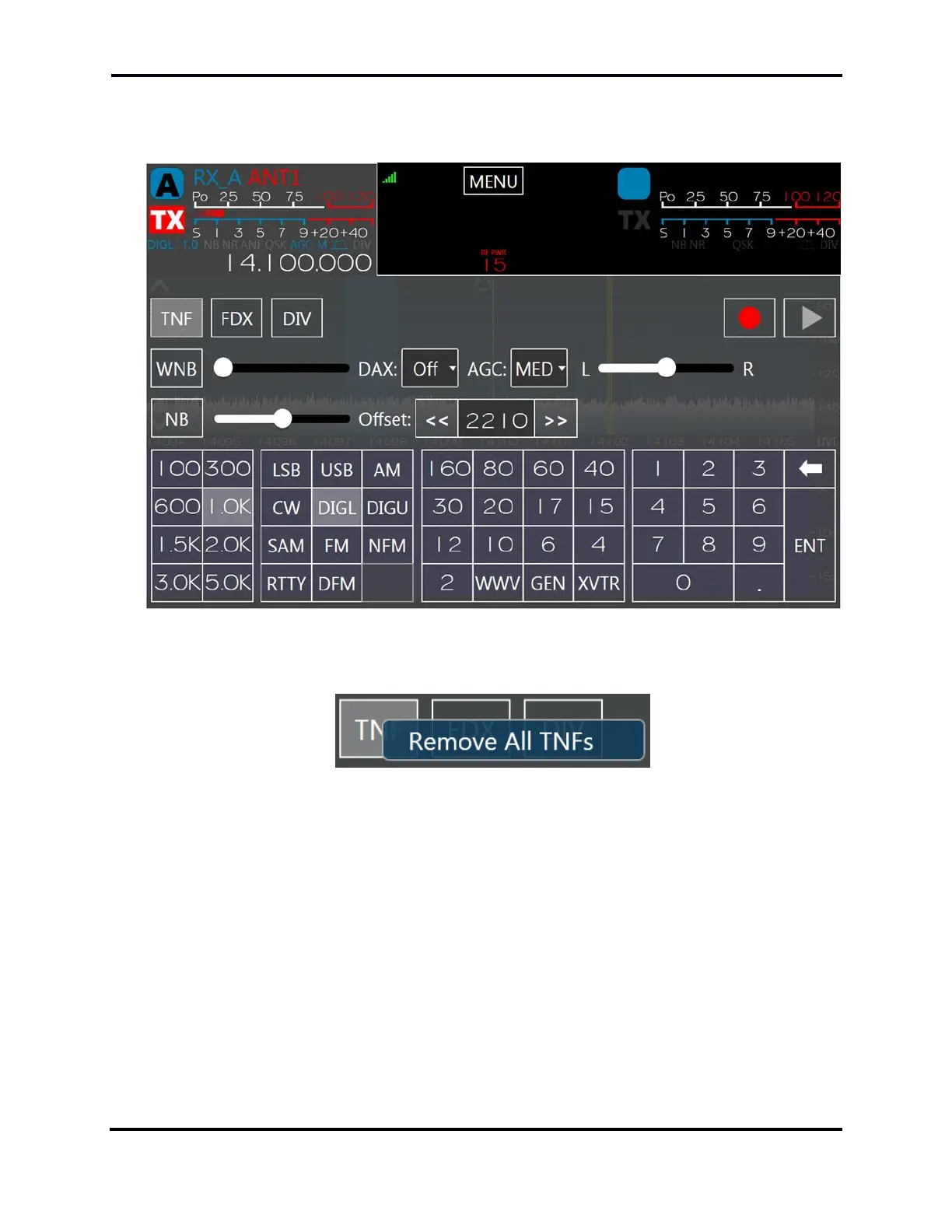

To disable all TNFs at the same time, touch on the TNF button in the top-left corner of the Slice menu.

To remove all TNFs, tap and hold the TNF button. The Remove All TNFs option will appear as shown

below. Tap the option to remove all TNFs.
