17.4 HOW TO CONFIGURE THE AUDIO CONTROLS FOR PHONE MODES
Connect a suitable microphone to the RJ45 MIC1 connector or the 1/8
th
inch TRS MIC2 connector on

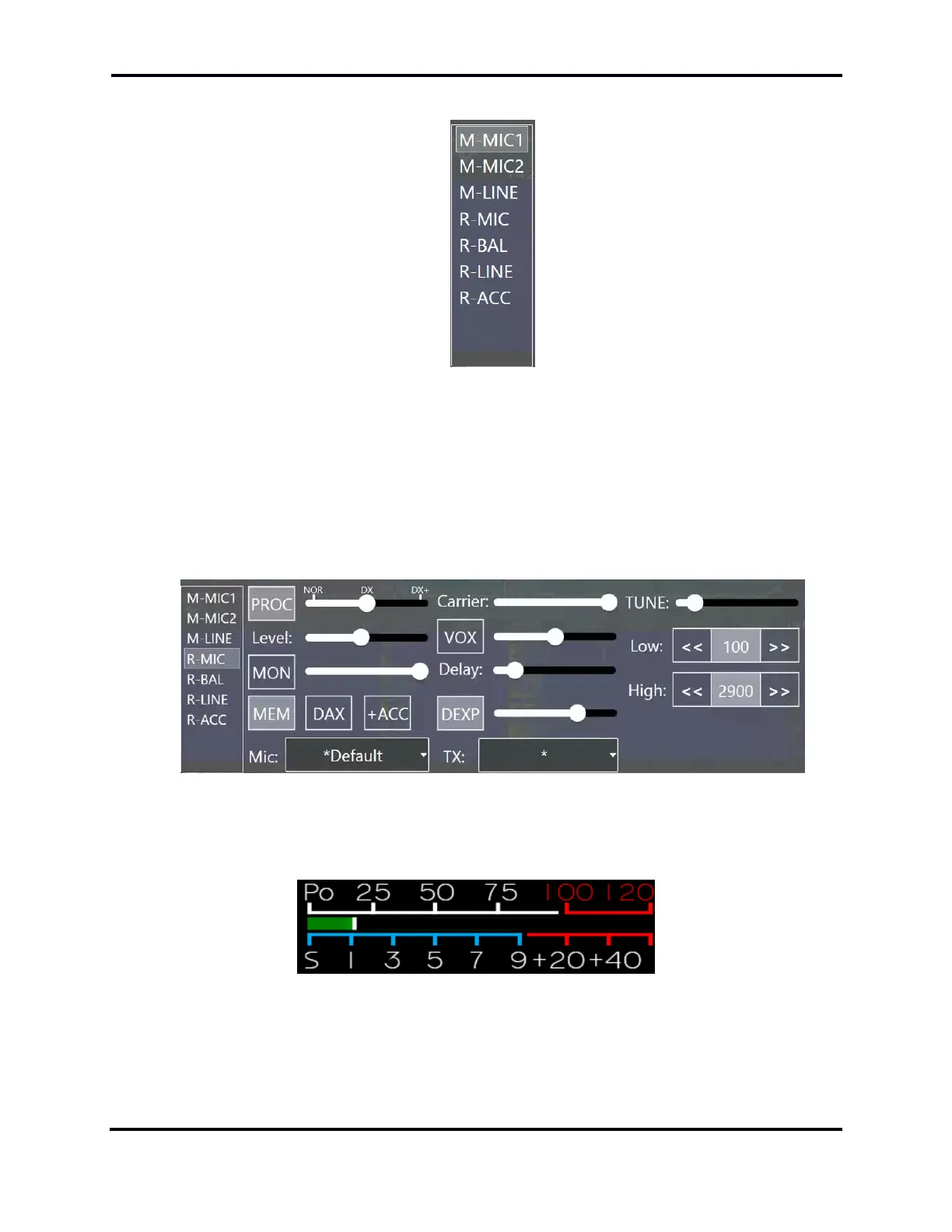

the back panel of the Maestro. Press the Maestro TX Menu button to bring up the TX Menu, then
select the appropriate microphone from the microphone list at the left side of the menu. See section
33.6.1, Audio Modes Transmitter Menu for a description of the inputs. See section 17.4.7, DAX TX
Channel and Microphone Interaction for information about coordinating DAX TX channel usage with
microphones.
17.4.1 Setting the Transmit Filter Bandwidth
The bandwidth of a single sideband transmission is determined by the Low and High bandwidth
controls found on the TX Menu. The bandwidth is adjustable up to 10 KHz in 50 Hz steps. The
transmit bandwidth is double for symmetric sideband modes such as AM.
Each Slice Receiver can display an input level meter. Tap the Slice Receiver meter display to cycle
through the available meters. There are two indicator components of the microphone or input Level
meter that show the actual audio input level. The leftmost component is a solid bar indicating the
average input level and the smaller box-like component farther to the right of the average input level
bar is the peak level indicator. The Level meter indicator bars also utilize three colors to visually
