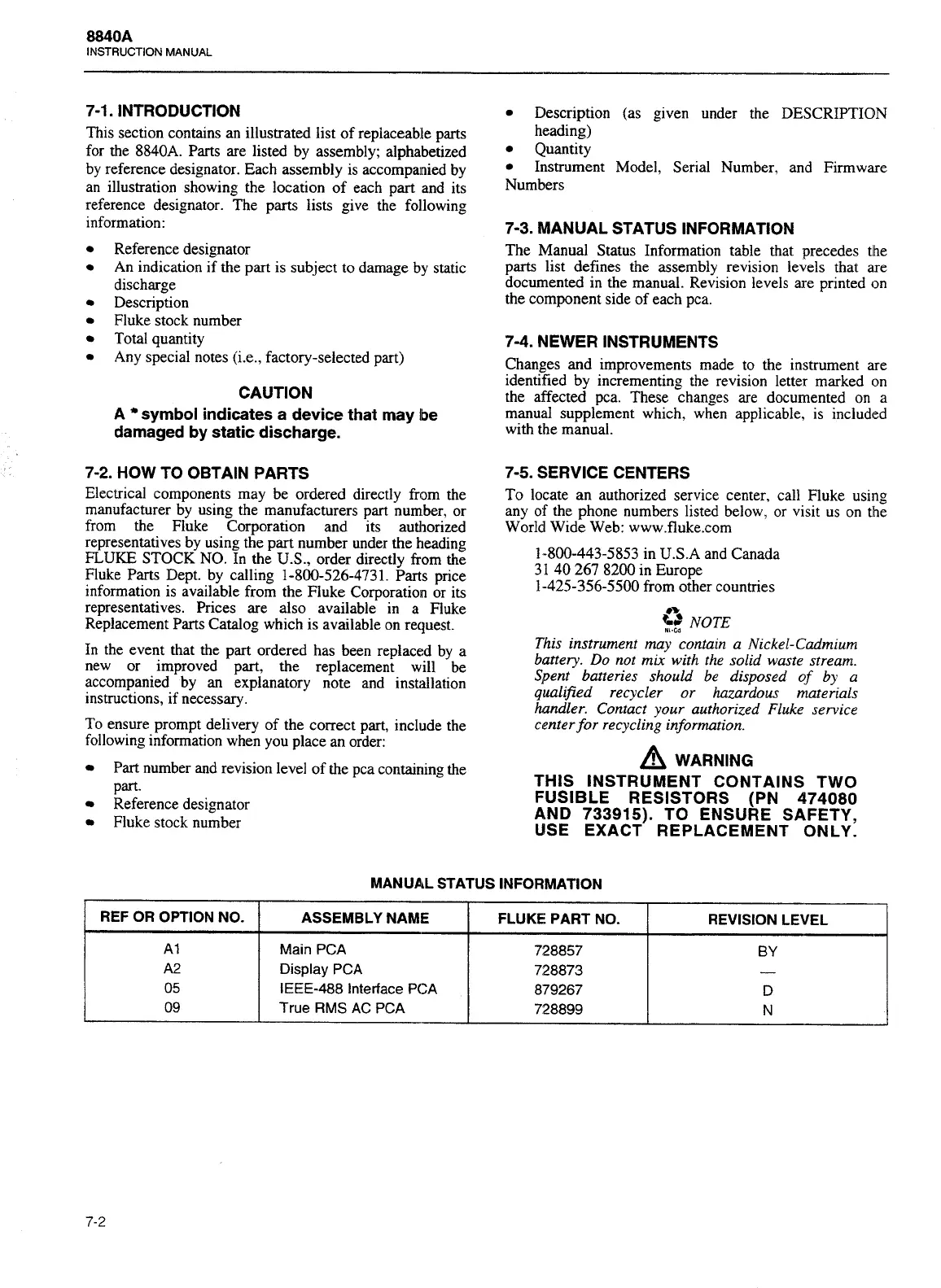

7-1. INTRODUCTION
This section contains an illustrated list of replaceable parts
for the 8840A. Parts are listed by assembly; alphabetized
by reference designator. Each assembly is accompanied by
an illustration showing the location of each part and its
reference designator. The parts lists give the following
information:
Reference designator
An indication if the part is subject to damage by static
discharge
Description
Fluke stock number
Total quantity
Any special notes (i.e., factory-selected part)
CAUTION
A
symbol indicates a device that may Ibe
damaged by static discharge.
7-2. HOW TO OBTAIN PARTS
Electrical components may be ordered directly from the
manufacturer by using the manufacturers part number, or
from the Fluke Corporation and its authorized
representatives by using the part number under the heading
FLUKE
STOCK NO. In the U.S., order directly from the
Fluke Parts Dept. by calling 1-800-526-4731.
Parts
price
information is available from the Fluke Corporation or its
representatives. Prices are also available in a Fluke
Replacement Parts Catalog which is available on request.
In the event that the part ordered has been replaced by a
new or improved part, the replacement will be
accompanied by an explanatory note and installation
instructions, if necessary.
To ensure prompt delivery of the correct part, include the
following information when you place an order:
Part number and revision level of the pca containing the
Part.
Reference designator
Fluke stock number
Description (as given under the DESCRIPTION
heading)
Quantity
Instrument Model, Serial Number, and Firmware
Numbers
7-3. MANUAL STATUS INFORMATION
The Manual Status Information table that precedes tlhe
parts list defines the assembly revision levels that are
documented in the manual. Revision levels are printed on
the component side of each pca.
7-4. NEWER INSTRUMENTS
Changes and improvements made to the instrument are
identified by incrementing the revision letter marked on
the affected pca. These changes are documented on
a
manual supplement which, when applicable, is included
with the manual.
7-5. SERVICE CENTERS
To locate an authorized service center, call Fluke using
any of the phone numbers listed below, or visit us on the
World Wide Web: www.fluke.com
1-800-443-5853 in U.S.A and Canada
3
1
40 267 8200 in Europe
1-425-356-5500 from other countries
This instrument may contain
a
Nickel-Cadmium
battery. Do not mix with the solid waste stream.
Spent batteries should be disposed of by a
qualified recycler or hazardous materials
handler. Contact your authorized Fluke service
center for recycling information.
WARNING
THIS INSTRUMENT CONTAINS TWO
FUSIBLE RESISTORS (PN 474080
AND 733915). TO ENSURE SAFETY,
USE EXACT REPLACEMENT ONLY.
MANUAL STATUS INFORMATION
REF OR OPTION NO.
A1
A2
05
09
ASSEMBLY NAME
Main
PCA
Display
PCA
IEEE-488 Interface
PCA
True
RMS
AC PCA
FLUKE PART NO.
728857
728873
879267
728899
REVISION LEVEL
BY
D
N
