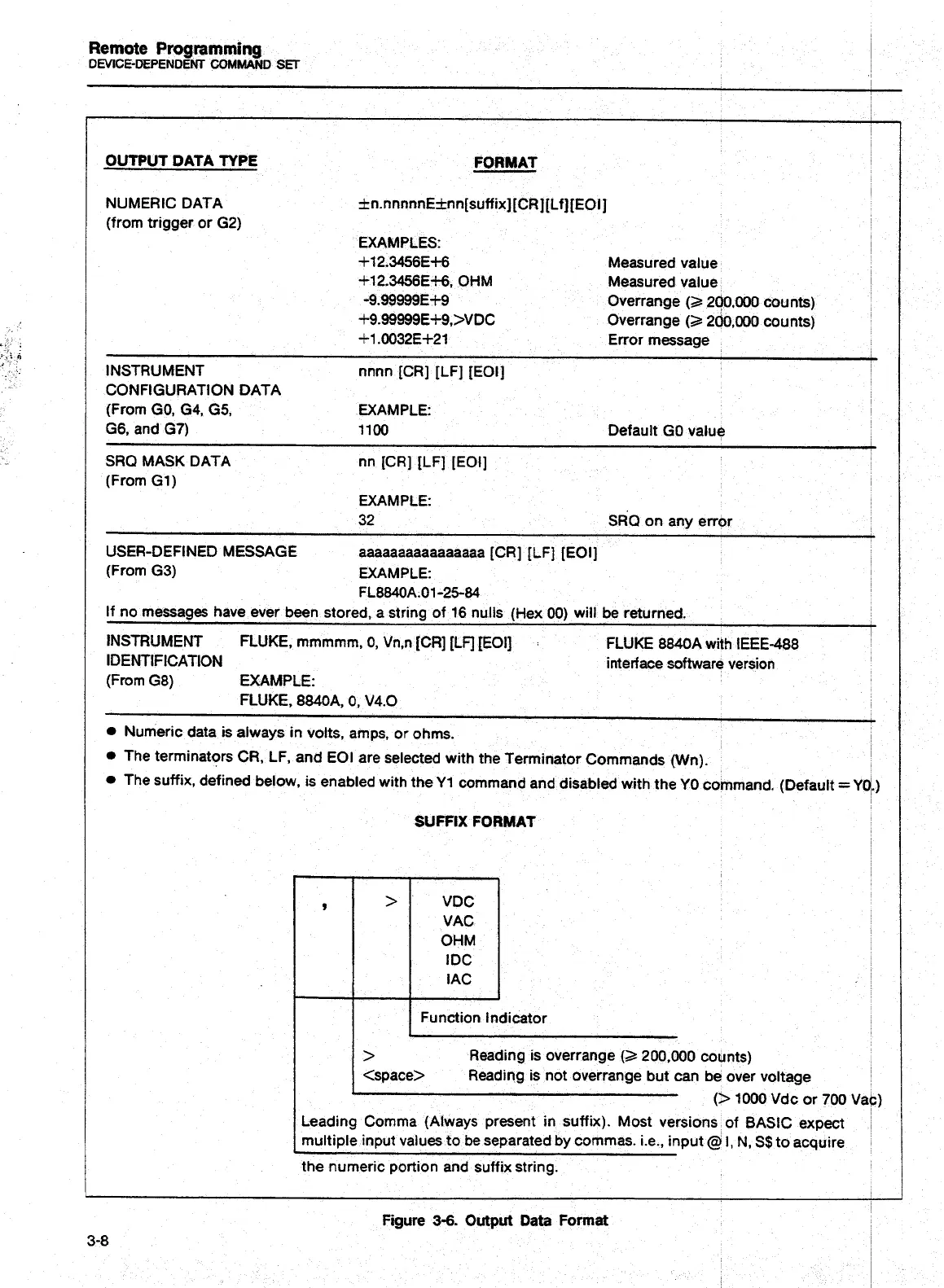

Remote
Programming
DMCE-DEPENDENT
COMMAND
SET
OUTPUT DATA
TYPE
FORMAT
NUMERIC DATA
f
n.nnnnnEf nn[suffix][CR][Lf][EOI]
(from trigger or G2)
EXAMPLES:
+I
2.34!56E+6 Measured value
+12.34!56Ei-6, OHM Measured value
-9.99999E+9 Overrange
(2
200.000 counts)
+9.99999€+9,>VDC Overrange
(3
260,000 counts)
4-1.0032E+21 Error message
INSTRUMENT nnnn [CR] [LF] [EOI]
CONFIGURATION DATA
(From GO, 64, G5, EXAMPLE:
G6,
and G7) 1100 Default GO value
SRQ MASK DATA
nn [CR] [LF] [EOI]
(From GI)
EXAMPLE:
32 SRQ on any error
USER-DEFINED MESSAGE
aaaaaaaaaaaaaaaa [CR] [LF] [EOI]
(From G3) EXAMPLE:
FL8840A.01-25-84
If no messages have ever been stored,
a
string of 16 nulls
(Hex
00) will be returned.
INSTRUMENT
FLUKE, mmmmm,
0,
Vn,n [CR]
[Lfl
[EOI]
FLUKE 8840A with IEEE488
IDENTIFICATION
interface software version
(From G8)
EXAMPLE:
FLUKE, 8840A,
0,
V4.0
Numeric data is always in volts, amps, or ohms.
The terminators
CR,
LF, and EOI are selected with the Terminator Commands fWn).
The suffix, defined below, is enabled with the Y1 command and disabled with the
YO
command. (Default
=
Yl
SUFFIX FORMAT
9
>
VDC
VAC
OHM
IDC
IAC
Function Indicator
>
Reading is overrange
(2
200,000 counts)
<space> Reading is not overrange but can be over voltage
(>
1000 Vdc or 700 V;
Leading Comma (Always present in suffix). Most versions of BASIC expect
multiple input values to
be
separated by commas. i.e., input
@
I, N, S$ to acquire
C
the numeric portion and suffix string.
Figure
3-6.
Output
Data
Format
