Remote Programming
DEVICE-DEPENDEM COMMAND
SET
I
FUNCTION COMMANDS
F1 VDC (Default)
F2 VAC
F3 2 WIRE kn
F4 4WlRE kn
F5 mA DC
F6 mA AC
RANGE COMMANDS
Autorange On (Default)
200 mV, 200n
2V, 2 kn
20v, 20
kn
200V, 200 kn
1000V dc, 700V ac, 2 Mn, 2000 mA
20 Mn
Autorange Off
T ERMlNATOR COMMANDS
WO Enable CR LF EOl (Default)
W1 Enable CR
LF
Only
W2 Enable CR E01 Only
W3 Enable CR Only
W4 Enable LF EOI Only
W5 Enable LF Only
W6 Enable EOl Only
W7 Disable All Output Terminators
CLEAR COMMANDS
*
Device Clear (Resets B84OA to default conc
XO Clear Error Register
SINGLE-TRIGGER COMMAND
?
Trigger Measurement
GET COMMANDS
READING RATE COMMANDS
GO
Get lnstrument Configuration (F,R,S, and
T
SO Slow (Default) GI Get SRQ Mask
S1 Medium G2 Get Calibration Input Prompt
S2 Fast
G3 Get User-Defined Message
G4
Get Calibration Status
TRIGGER MODE COMMANDS
G5 Get IAB Status (Input P/R, AutorangeOn/Ofl
Offset On/Off)
REARPANEL
G6
GetYWStatus(SuffixEnabled/Disr
MODE TRIGGER DELAY
Terminator Selection)
G7 Get Error Status
TO (Default) Internal Disabled
-
G8
Get lnstrument Identification
T1 External Evabled
On
T2 External
~isabled On Note: G2 valid only in calibration mode.
T3 External
Enabled Off
T4 External Disabled
Off
PUT COMMANDS
PO
Put lnstrument Configuration (F,R,S, and T
Note: Delay is enabled by entering
EXTRIG modewhile
P1 Put SRQ Mask
in local. P2 Put Variable Calibration Value
P3 Put User-Defined Message
OFFSET COMMANDS
Note: P2 and P3 valid only in calibration mode.
BO Offset Off (Default)
PUT COMMAND FORMAT
B1 Offset On
N (value) PO
DISPLAY COMMANDS
N (value) P1
N (value) P2
DO Normal Display (Default) P3 (16 ASCII characters)
Dl Blank Display
SUFFIX COMMANDS
YO
Disable Output Suffix (Default if talker/listener)
Y1
Enable Output Suffix (Default in talk-only mode)

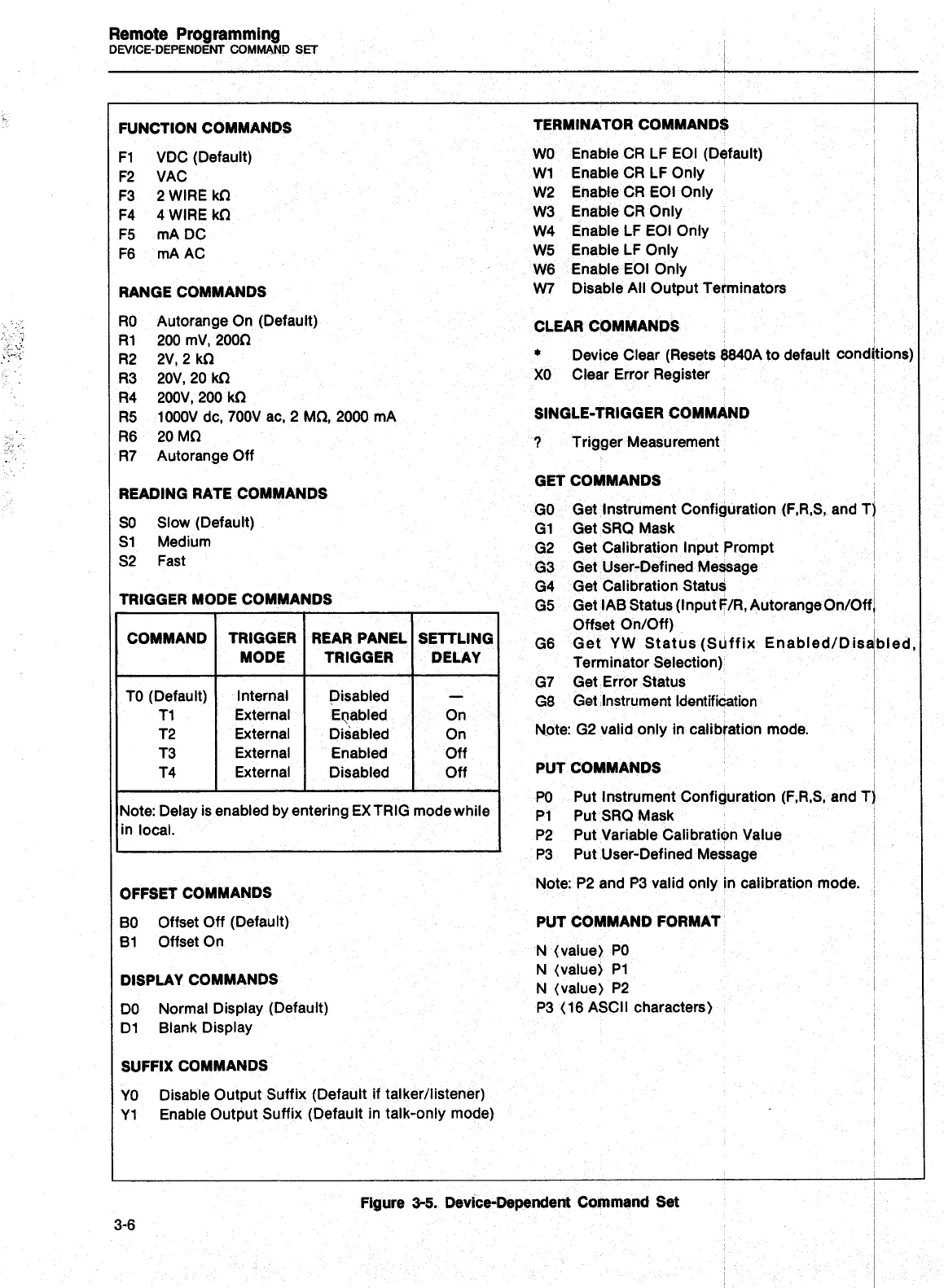

Figure
3-5.
Device-Dependent
Command
Set
