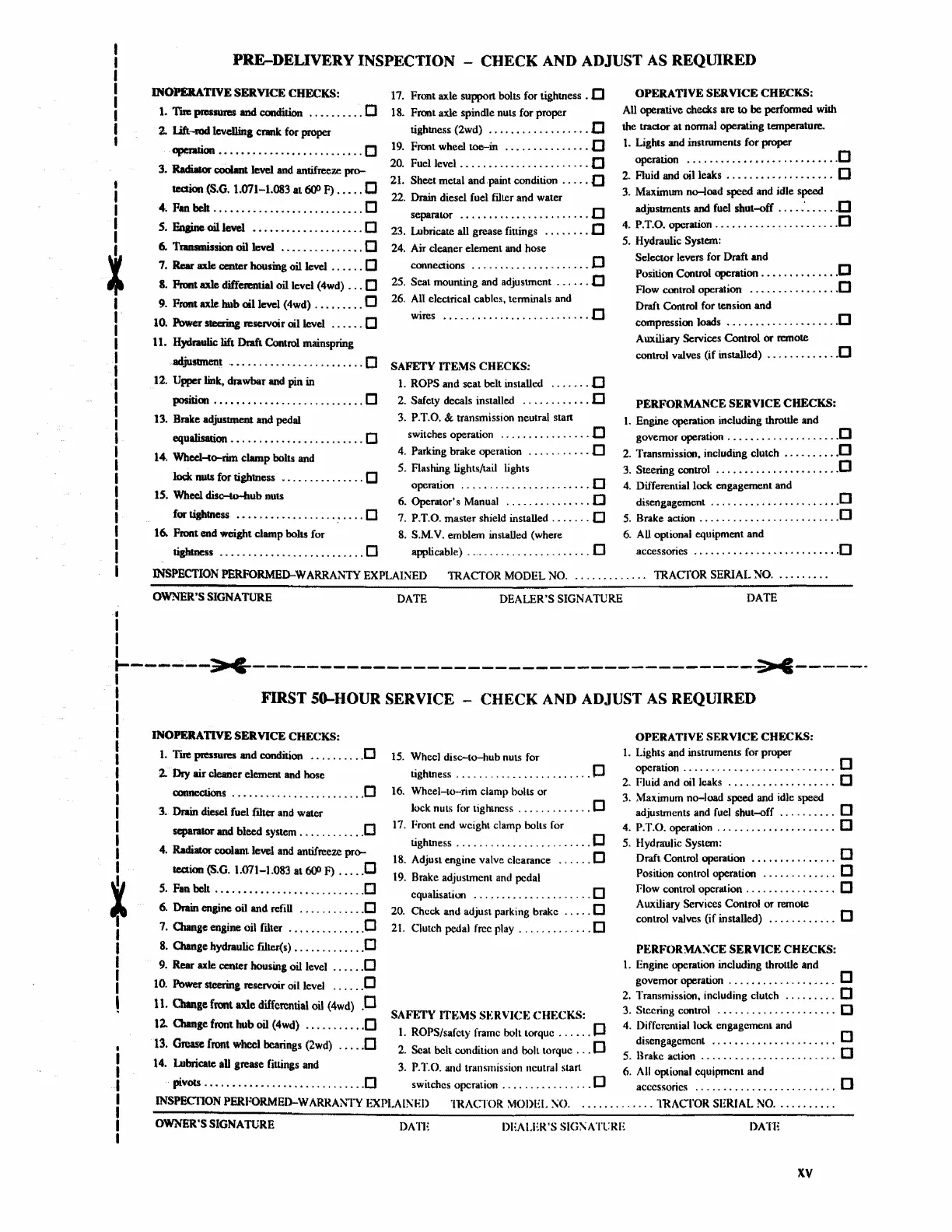

PRE-DELIVERY INSPECTION - CHECK AND ADJUST AS REQUIRED
INOPERATIVE SERVICE CHECKS:
17. Front axle support bolts for tightness . Cl
1. Tim pmssures and condition •••....... 0 18. Front axle spindle nuts for proper
2. Uft-rod levelling crank for proper tightness (2wd) .............•.... CJ
cpenuion .......................... 0 19. Front wheel toe-in ............... 0
20. Fuel level . . . . . . . . .............. 0
3. Radialor coolant level and antifreeze pro-
tection (S.G. 1.071-1.083 at 6QO F) .•... 0
4. Fan belt ...•.....•.•..•..•......... 0
s. Ensine oil 1eve1 .................... a
21. Sheet metal and paint condition ....• 0
22. Drain diesel fuel filter and water
separator ....................... 0
23. Lubricate all grease fittings ........ 0
6. Tllllllmission oil level ............... 0
24. Air cleaner element and hose
7. Rear axle center housing oil level ...... a
connections . . . . . . . . . . . . . . . ..... a
8. Front axle cliffenmtial oil level (4wd) ... a
25. Seat mounting and adjustment ...... C
9. From axle hub oil level (4wd) ..•...... 0
10. Power steering reservoir oil level ...... a
26. All electrical cables, terminals and
wires
.......................... 0
11. Hydraulic lift Draft Control mainspring
adjusbnent
·· • · · · · · · · · · · · · · · · · · · · · · · 0 SAFETY ITEMS CHECKS:
12. Upper link. drawbar and pin in 1. ROPS and seat belt installed ....... 0
p>sition ..........•................ D 2. Safety decals installed . . . . ....... 0
13. Brake adjustment and pedal
3. P.T.O. & transmission neutral start
switches operation
................ 0
4. Parking brake operation ........... 0
5. Flashing lights/tail lights
ope.ration
....................... 0
6. Operator's Manual ............... 0
equalisation .•...................... 0
14. Wheel-to-rim clamp bolts and
lock nuts for tightness ............... D
IS. Wheel disc-to-hub nuts
for tightness .•........•....... : .... D
7. P.T.O. master shield installed ....... 0
OPERATIVE SERVICE CHECKS:
All operative checks are to be perfonned with
the tractor at nonnal operating temperature.
J. Lights and instruments
for proper
operation ..........•.•..•........... a
2. Fluid and oil leaks . .. . . .. . . .. .. . . . • .. a
3. Maximmn no-load speed and idle speed
adjustments
and fuel shut-off .... : ...... a
4. P.T.o. operation ...................... a
5. Hydraulic System:
Selector levers for Draft and
Position Control operation ...•....•.•••. C
Flow control operation .............•.. C
Draft Control for tension and
compression loads .............••••... a
Auxiliary Services Control or remote
control valves (if installed) ...•.....•... C
PERFORMANCE SERVICE CHECKS:
l. Engine operation including throttle and
governor operation ....•........•...... 0
2. Transmission, including clutch .......... C
3. Steering control ...................... 0
4. Differential lock engagement and
disengagement . . . . . . . . . . . . . . . . ...... 0
5. Brake action ..................•...... 0
16. Front end weight clamp bolts for 8. S.M.V. emblem installed (where 6. All optional equipment and
tightness ......•.•••............... 0 applicable) ....................... D accessories .......................... O
INSPECTION PERFORMED-WARRANTY EXPLAINED lRACTOR MODEL NO. . . . . . . . . . . . . . lRACTOR SERIAL NO. ........ .
OWNER'S SIGNATURE
DATE DEALER'S SIGNATURE
DATE
I
I
I
~---~--~-------------------------------------~-----·
i
I
I
I
I
I
'
FIRST S~HOUR SERVICE
CHECK AND ADJUST AS REQUIRED
INOPERATIVE SERVICE CHECKS:
1. Tue pressures and condition .......... D
15. Wheel disc-to-hub nuts for
2. Dry air cleaner element and hose
tightness
........................ 0
connections ..•..................... D
16. Wheel-to-rim clamp bolls or
3. Drain diesel fuel filter and water
lock nuts
for tightness ............. CJ
separator and bleed system ............ CJ
4. Radiator coolant level and antifreeze pro-
tcclion (S.G. 1.071-1.083 at W> F) ..... 0
S. Fan belt ..•.•.......•.•............ CJ
17. Front end weight clamp bolts for
tightness
........................ 0
18. Adjust engine valve clearance ...... 0
19. Brake adjustment and pedal
equalisation . . . . . . . . . . . .
. . ... a
6. Drain engine oil and refill ............ 0
20. Check and adjust parking brake ..... 0
7. Oaange engine oil filter .............. D
21. Clutch pedal free play ............. 0
8. Change hydraulic filter(s) ............. D
9. Rear axle center housing oil level ...... D
10. Power steering reservoir oil level ...... D
11. Oiange front axle differential oil (4wd) .0
12. Change front hub oil (4wd) ........... a
13. Gn:ase front wheel bearings (2wd) ..... C
SAFETY ITEMS SERVICE CHECKS:
1. ROPS/safcty frame bolt torque ...... 0
2. Scat belt condition and bolt torque . . D
OPERATIVE SERVICE CHECKS:
1. Lights and instruments for proper
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . a
2. Fluid and oil leaks . . . . . . . . . . . . . . . . . . . 0
3. Maximum no-load speed and idle speed
adjustments and
fuel shut-off .......... a
4. P.T.O. operation ..................... 0
5. Hydraulic System:
Draft Control operation . . . . . . . . . . . . . . . Q
Position control operation . . . . . . . . . • . . . 0
Flow control operation . . . . . . . . . . . . . . . . a
Auxiliary Services Control or remote
control valves
(if installed) ............ a
PERFOR:'.\.fA~CE SERVIC•; CHECKS:
1. Engine operation including throttle and
governor operation . . . . • . . . . . . . . • . . • . a
2. Transmission, including clutch ......... 0
3. Steering control . . . . . . . . . . . ........ C
4. Differential lock engagement and
disengagement . . . . . . . . . . . . . . . . . . . .
a
5. Brake action ........................ 0
14. Lubrica1e all grease fittinos and 3 p 1· () d t · · t I tart
• . . . . an ransm1ss1on ncu ra s 6. All op1.ional equipment and
pivots ..•.....•...••••.•........... 0 switches operation ................ D accessories . . . . . . . . . . . . . . . . . . . . . . . . . a
INSPECTION PERFORMED-WARRANTY EXPl..Al!\ED "IRACTOR MODEL '.\0. . ............ lRACTOR SERIAL NO .......... .
OWNER'S SIGNATURE
DATE DEALER'S SIG:\ATL:RE DATE
xv

Ford 3930 Specifications

General

Engine Type	Diesel
Horsepower	52 hp
Type	Utility tractor
Fuel Type	Diesel
Gears	8 forward and 2 reverse
PTO Power	45 hp
PTO Speed	540 rpm
Hydraulic System	Open center
Fuel Capacity	14.5 gal (55 L)
Transmission	8-speed
Engine	Ford
Displacement	201 ci (3.3 L)
