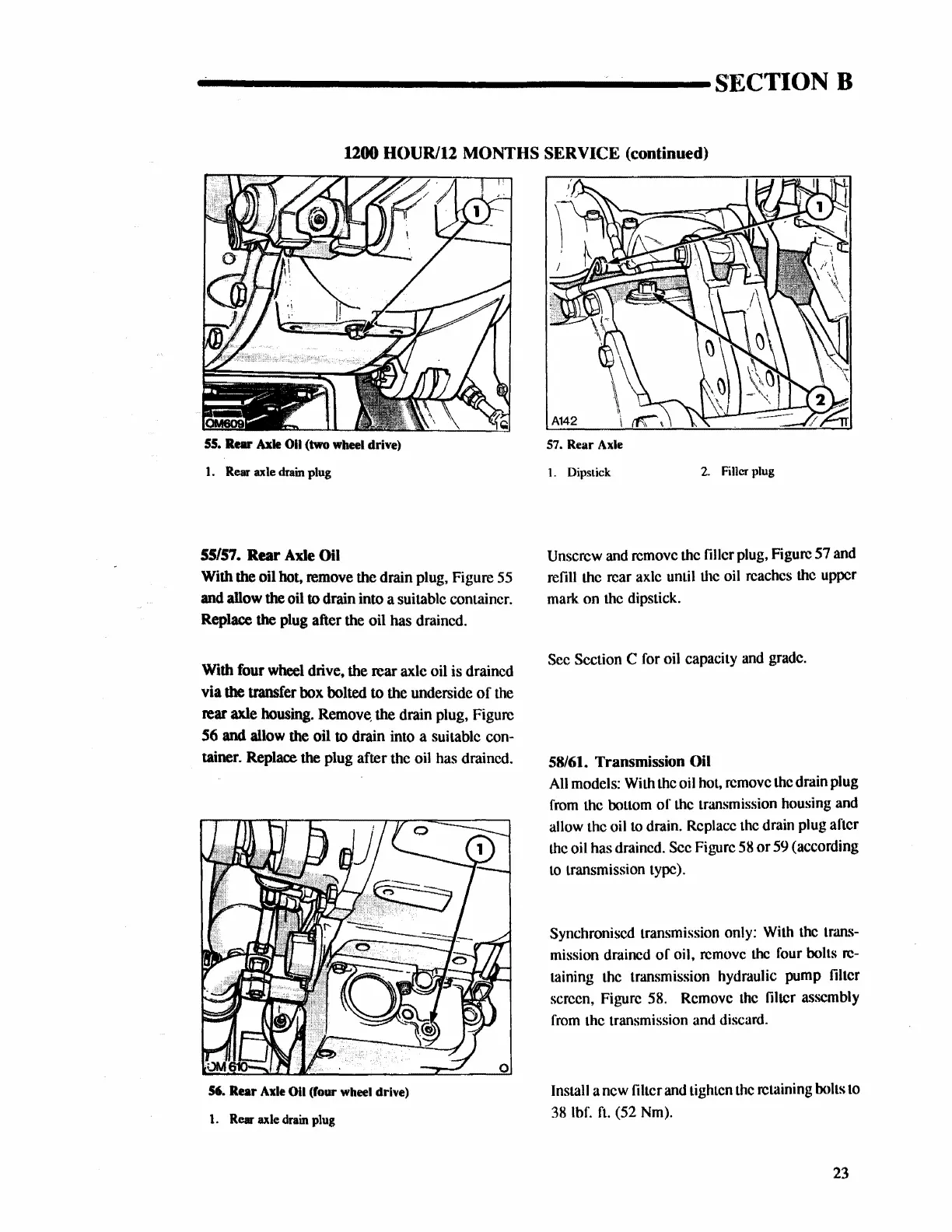

---------------SECTION
B
1200 HOUR/12 MONTHS SERVICE (continued)
55.
Rear
Axle
011
(two
wheel drive)
1.
Rear axle drain plug
55/57.
Rear
Axle Oil
With the oil hot, remove the drain plug, Figure
55
and allow the oil to drain into a suitable container.
Replace
the
plug after the oil has drained.
With four wheel drive, the
rear axle oil is drained
via
the
transfer box bolted to the underside
of
the
rear axle housing.
Remove,
the drain plug, Figure
56
and
allow the oil
to
drain into a suitable con-
tainer. Replace the plug after the oil has drained.
56.
Rear
Axle Oil (four wheel drive)
1.
Rear axle drain plug
57. Rear Axle
1.
Dipstick
2.
Filler plug
Unscrew
and
remove the filler plug, Figure 57 and
refill
the rear
ax.le
until
tJ1c
oil reaches
the
upper
mark on the dipstick.
Sec Section C for oil capacity
and
grade.
58/61. Transmission Oil
All
models: With the oil hot, remove the drain
plug
from
the
l::x>ttom
of
the transmission housing and
allow the oil
to
drain. Replace the drain
plug
after
the
oil has drained. Sec
Fil:,rurc
58
or 59 (according
to
transmission type).
Synchronised transmission only: With
the
trans-
mission drained
of
oiJ,
remove
the
four bolls
re-
taining the transmission hydraulic
pump
filter
screen, Figure
58. Remove
the
filler assembly
from
the transmission and discard.
Install a new
filter and tighten
the
retaining
tx>lls
to
38
tbf. ft. (52 Nm).
