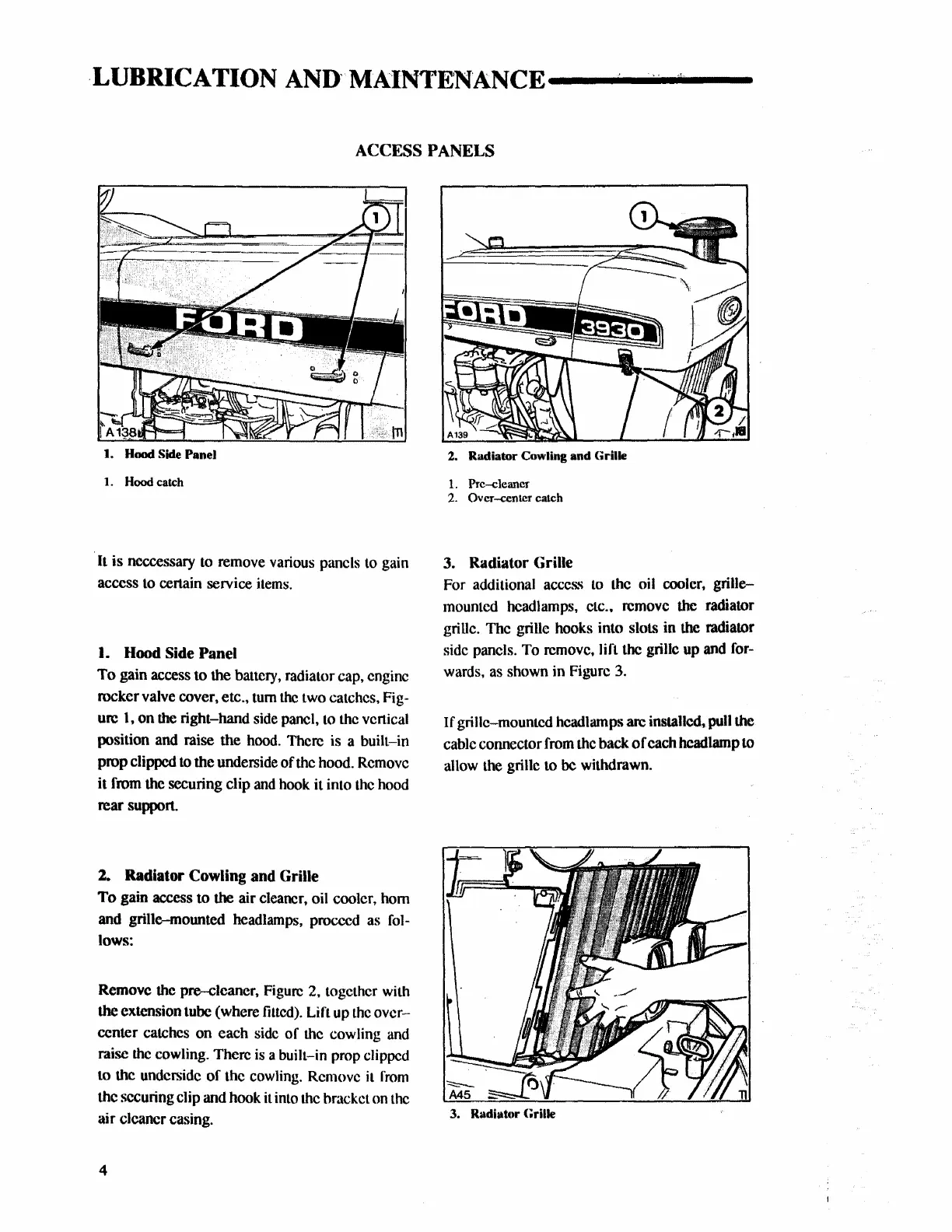

-LUBRICATION
AND·MAINTE'N'ANCE-.....-.....-----
ACCESS PANELS
1. Hood Side Panel
1.
Hood
catch
It is ncccessary to remove various panels
lo
gain
access to certain service
items.
I.
Hood Side Panel
To
gain
access
to the
battery,
radiator
cap,
engine
rocker
valve cover, etc.,
turn
the
two catches, Fig-
ure
1,
on the right-hand
side
panel, to the vertical
position and raise
the
hood.
There is a built-in
prop clipped
to
the underside of the hood. Remove
it
from
the
securing clip
and
hook
it into
the
hood
rear support.
2. Radiator Cowling and Grille
To
gain access to the air cleaner, oil cooler, horn
and grille-mounted headlamps, proceed as
fol-
lows:
Remove the pre-cleaner,
Figure
2, together with
the extension tube (where
fitted).
Lirt
up
the
ovcr-
ccntcr
catches
on
each side of
the
cowling
and
raise the cowling. There is a built-in prop clipped
lo
the
underside
of
the
cowling.
Remove
it
from
the securing clip and hook
it
into
the
bracket
on
the
air cleaner
casing.
4
2. Radiator Cowling
and
Grille
1. Pre-cleaner
2.
Over-center catch
3.
Radiator Grille
For additional access
lo
the oil cooler, grille-
mountcd headlamps, etc.. remove the radiator
grille. The grille
hooks
into
slot.~
in
the
radiator
side panels. To remove, lift the grille up
and
for-
wards,
as
shown
in Figure 3.
If
grille-mounted headlamps arc installed,
pull
the
cable
connector
from
the
back of
each
headlamp
to
allow
the grille
lo
be
withdrawn.
3. Radiator Grille
