Ford 3930 User Manual

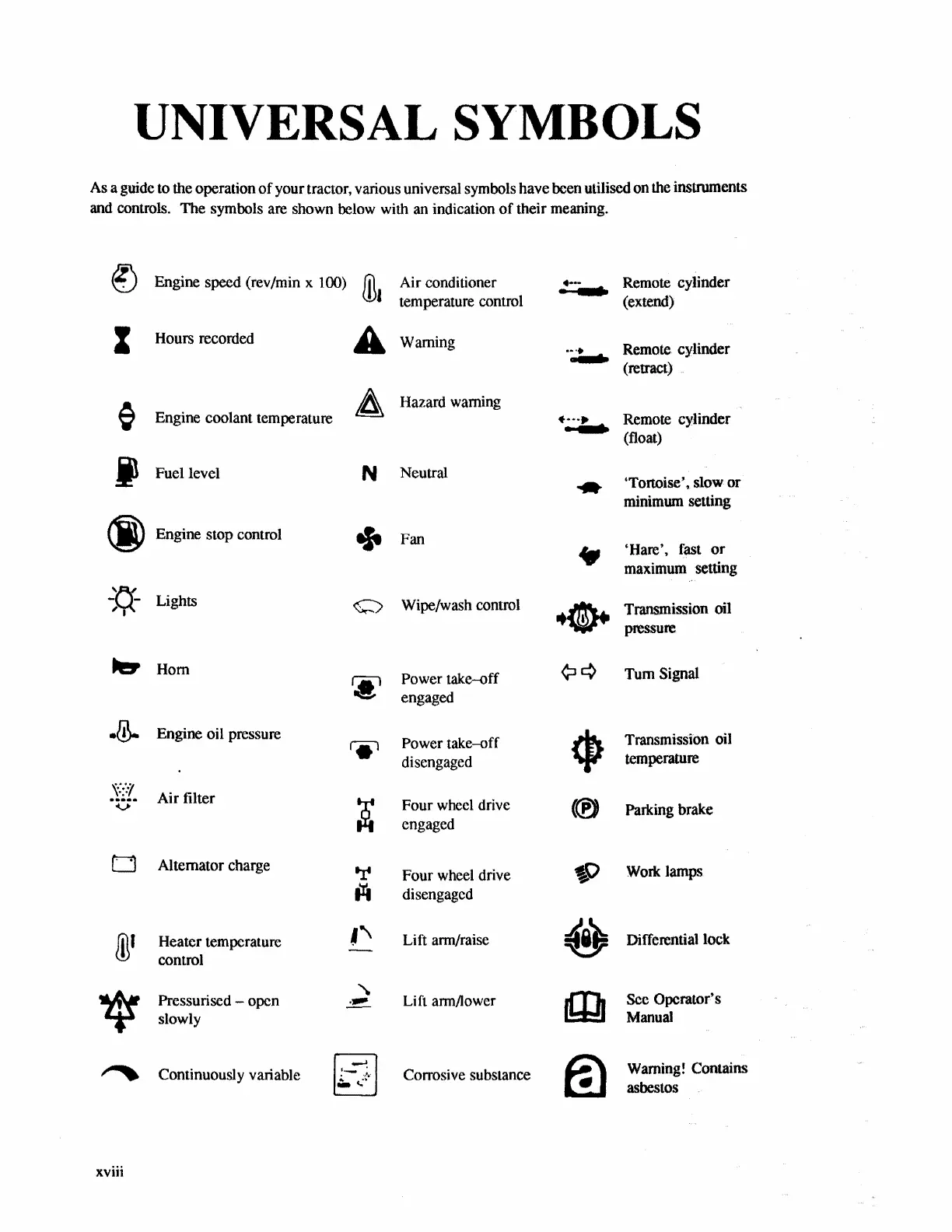

UNIVERSAL SYMBOLS
As a guide to the operation of your tractor, various universal symbols have been utilised on the instruments
and controls. The symools are shown below with an indication of their meaning.
~ Engine speed (rev/minx JOO) ffii
Air conditioner
temperature control
Z Hours recorded
A Warning
~ A Hazard warning
)ii Engine coolant temperature
j1 Fuel level N Neutral
@ Engine stop control + Fan
'Q
- - Lights
, I
~Hom
.@..
ffi'
xviii
Engine oil pressure
Air filter
Alternator charge
Heater temperature
control
Pressurised - open
slowly
Continuously variable
<S::) Wipe/wash control
Power take-off
engaged
Power take-off
disengaged
Four
wheel drive
engaged
Four
wheel drive
disengaged
Li ft ann/raise
Li ft ann/lower
Corrosive substance
.....
•
Remote cylinder
(extend)
·:.;:..... Remote cylinder
(retract)
• · .. ., Remote cylinder
_..... (float)
...
<®
'Tortoise', slow or
minimum setting
'Hare', fast or
maximum setting
Transmission oil
pressure
Tum Signal
Transmission oil
temperature
Parking brake
Work lamps
Differential
lock
Sec
Operator's
Manual
Warning! Contains
asbestos

Ford 3930 Specifications

General

Engine Type	Diesel
Horsepower	52 hp
Type	Utility tractor
Fuel Type	Diesel
Gears	8 forward and 2 reverse
PTO Power	45 hp
PTO Speed	540 rpm
Hydraulic System	Open center
Fuel Capacity	14.5 gal (55 L)
Transmission	8-speed
Engine	Ford
Displacement	201 ci (3.3 L)
