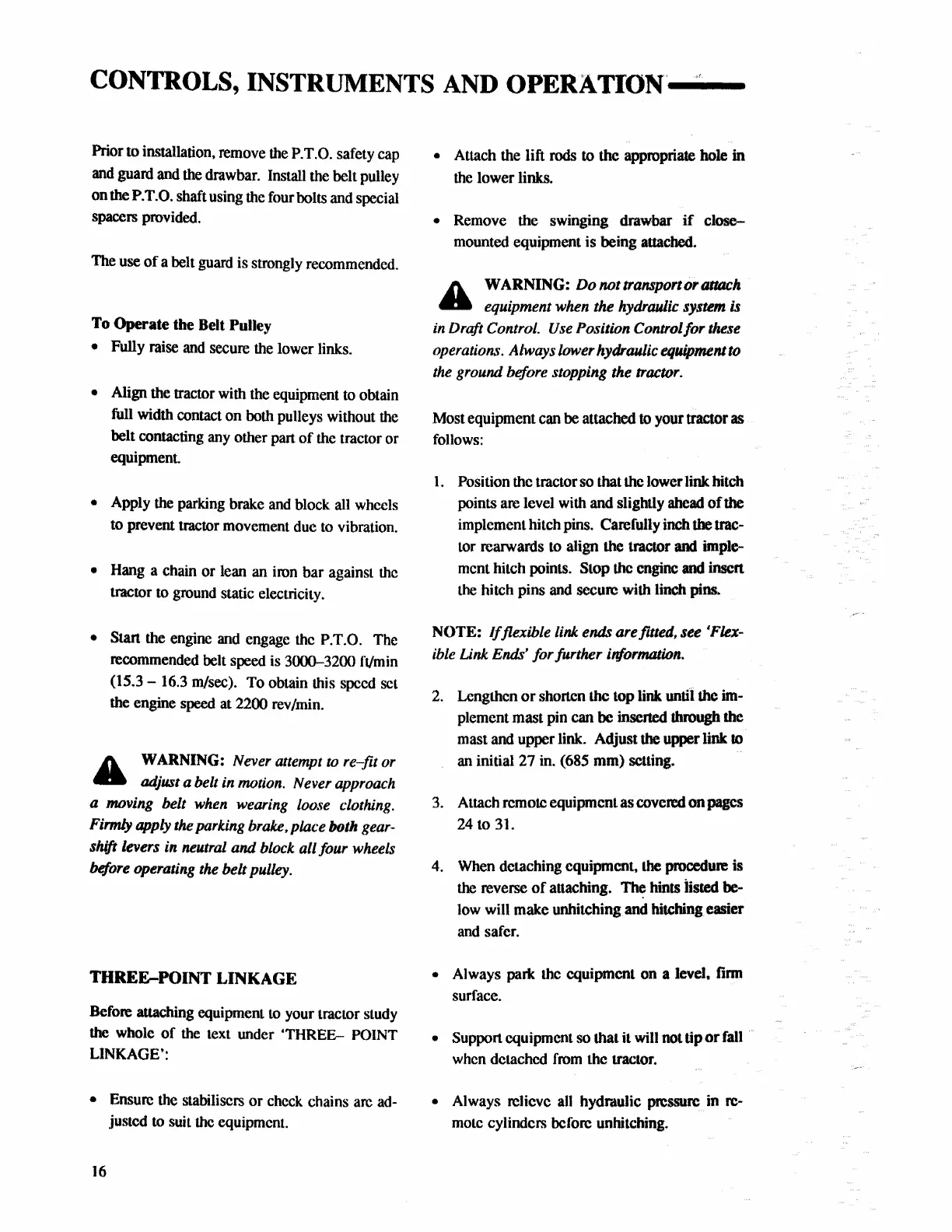

CONTROLS, INSTRUMENTS AND
OPERATION,--
Prior to installation, remove
the
P.T.O. safety cap
and
guard and the drawbar. Install the belt pulley
on the
P.
T.O. shaft using the four bolts and special
spacers provided.
The
use
of a belt guard is strongly recommended.
To Operate the Belt Pulley
• Fully
raise
and
secure the lower links.
• Align the tractor with the equipment to obtain
full width contact on both pulleys without
the
belt contacting any other part of the tractor or
equipment.
• Apply the parking brake
and
block all wheels
to prevent tractor movement due
to
vibration.
• Hang a chain or lean an iron bar against
the
tractor to ground static electricity.
• Start the engine and engage the P.T
.0.
The
recommended belt speed
is
3000-3200 ft/min
(15.3 -
16.3
m/sec).
To
obtain this speed set
the engine
speed
at 2200 rev/min.
A
WARNING:
Never attempt
to
re-fit or
4llla adjust a belt in motion. Never approach
a moving belt
when
wearing loose clothing.
Firmly apply
the
parking brake, place both gear·
shift levers
in neutral and block all four wheels
before operating
the
belt pulley.
THREE-POINT LINKAGE
Before attaching equipment
to
your tractor study
the whole
of
the
text under 'THREE- POINT
LINKAGE•:
• Ensure
the
stabilisers or check chains are
ad-
justed
to
suit
the
equipment.
16
• Attach the lift
rods
to
the
appropriate
hole
in
the
lower links.
• Remove
the
swinging drawbar
if
close-
mounted equipment is being attached.
A
WARNING:
Do
not
transport
or
attach
4lla
equipment when the hydraulic
system
is
in
Draft Control.
Use
Position Control/or these
operations. Always lower
hydraulic equipment
to
the
ground before stopping the tractor.
Most
equipment can
be
attached to
your
tractor as
follows:
1.
Position the tractor so that the lower link hitch
points
are
level with and slightly ahead
of
the
implement hitch pins. Carefully inch the trac-
tor rearwards
to
align the tractor and imple-
ment hitch points.
Stop the engine
and
insert
the hitch pins
and
secure
with
linch pins.
NOTE:
I/flexible link
ends
are fitted,
see
'Flex-
ible
Link Ends' for further itformation.
2.
Lengthen
or
shorten the lop link until
the
im-
plement mast pin can
be
inserted through
the
mast and upper link. Adjust the upper link to
an
initial 27
in.
(685 mm) selling.
3. Attach remote equipment
as
covered
on
pages
24
to
31.
4.
When detaching equipment,
the
procedure is
the
reverse
of
attaching.
Th~
hints iisted be-
low will make unhitching and hitching easier
and
safer.
• Always park the equipment on a level,
firm
surface.
• Support equipment so that it will not tip
or
fall
when detached
from
the tractor.
• Always relieve
all
hydr.tulic pressure in re·
mote cylinders before unhitching.
