---------------SECTION
B
300
HOUR
SERVICE
(continued)

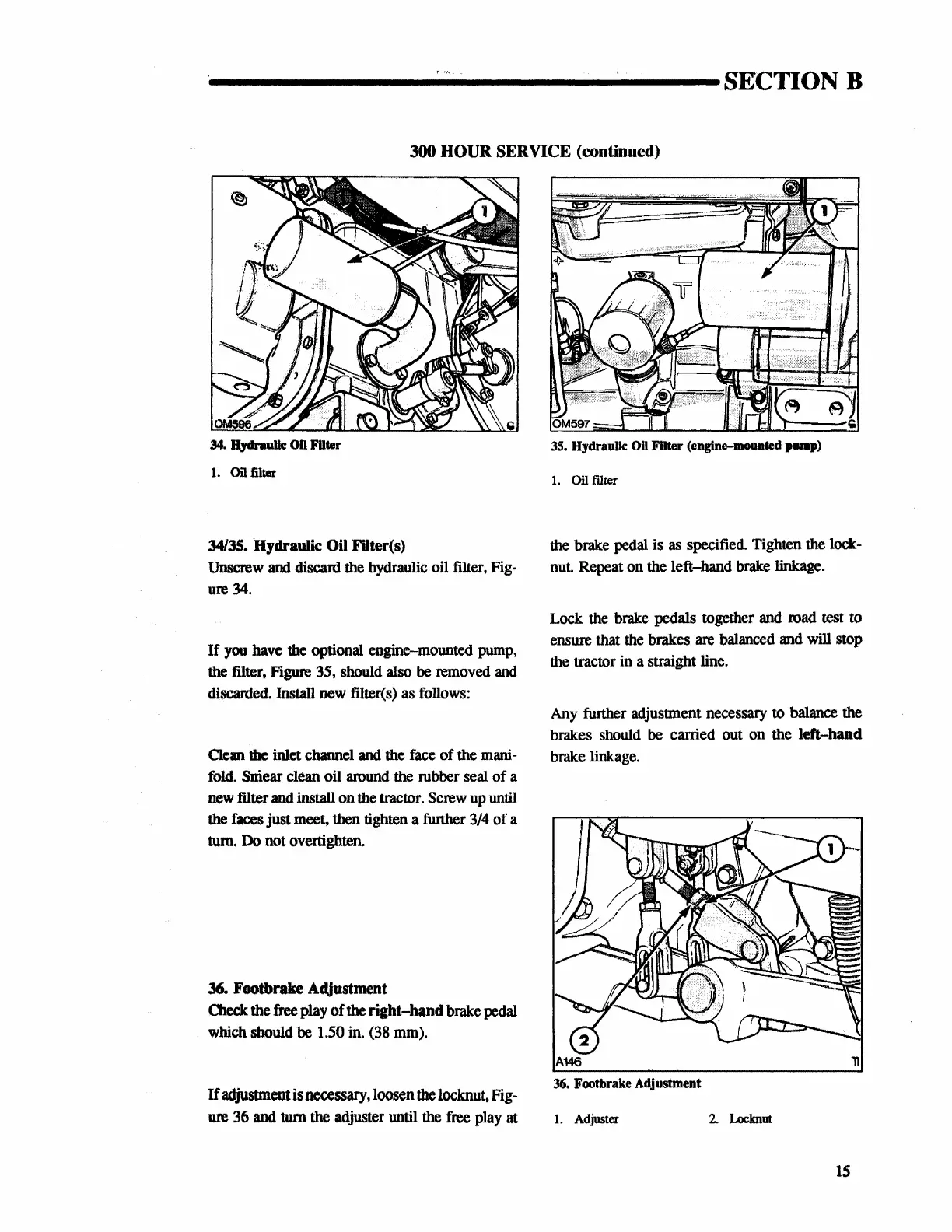

1. Oil filter
34/35. Hydraulic Oil Filter(s)
Unscrew
and
discard the hydraulic oil filter, Fig·
ure
34.
If
you
have the optional engine-mounted pump,
the filter, Figure 35, should also
be removed
and
discarded. Install new filter(s) as follows:
Clean
the inlet channel
and
the face of the mani-
fold.
Sniear clean oil around the rubber seal
of
a
new tilter
and
install on the tractor. Screw
up
until
the faces just meet, then tighten a
further 3/4 of a
tum.
Do
not
overtighten.
36. Footbrake Adjustment
Check the free
play
of
the right-hand brake pedal
which should
be
1.50 in.
(38
mm).
If
adjustment is
necessary,
loosen
the
locknut,
Fig-
ure
36
and tum the adjuster
until
the free
play
at
35. Hydraullc Oil Filter (engine-mounted pump)
1.
Oil filter
the brake pedal is
as
specified. Tighten the lock-
nut. Repeat on the left-hand brake linkage.
Lock the brake pedals together and road test
to
ensure that the brakes are balanced and
will
stop
the tractor in a straight line.
Any
further adjustment necessary
to
balance the
brakes should
be
carried out on the left-hand
brake linkage.
A146
11
36. Footbrake Adjustment
1.
Adjuster
2.
Locknut
15
To Next Page
