5.7 C-CPU Board (05P0729)/C-IF Board (05P0730)
5-42
5.7 C-CPU Board (05P0729)/C-IF Board (05P0730)

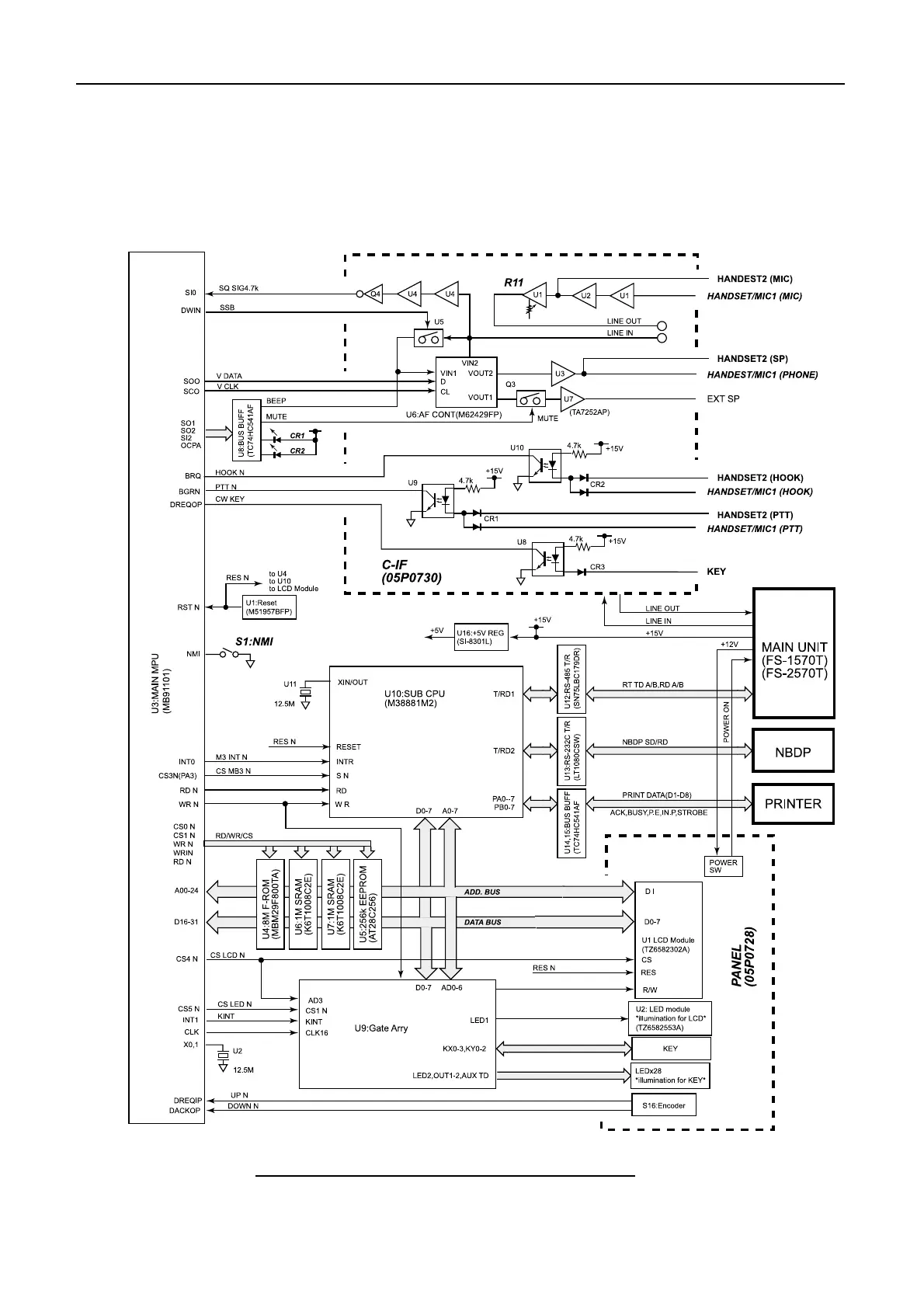

Fig.5.7.1 shows the block diagram of control unit, FS-2570C.
Fig.5.7.1 Block diagram of Control unit, FS-2570C
