2.2 FS-2570T
2-5
2.2 FS-2570T

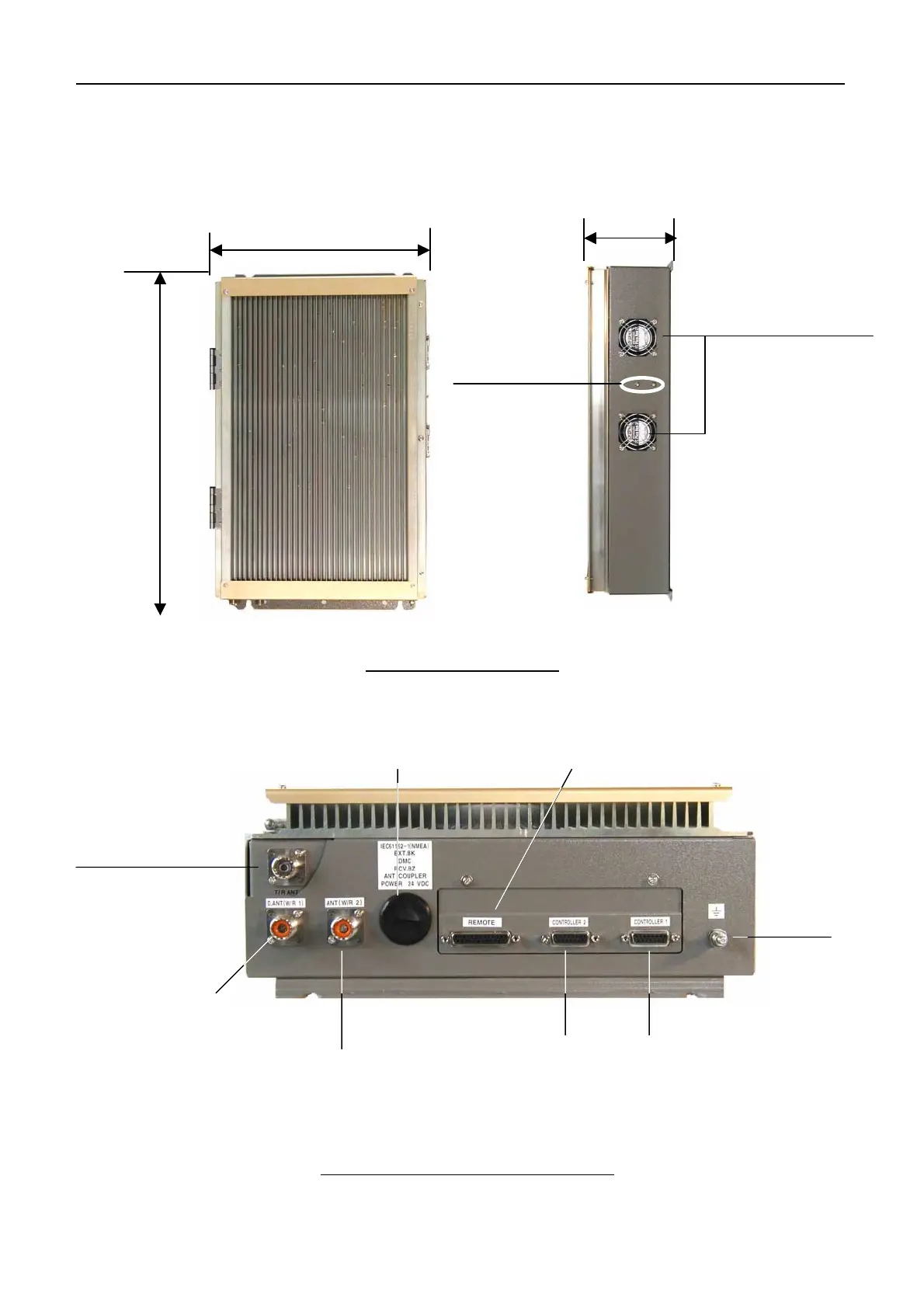

Front view Side view
Fig.2.2.1 Transceiver unit
560
345
Cooling fan
(Operates when the
temperature rises to 45 °C.)
Connected to AT-1560
Connected to DSC Distress/safet
y
watch receiver antenna
Connected to DSC General
frequencies watch receiver antenna
(Option)
Cable inlet
REMOTE
(MODEM, RT program update port)
CONTROLLER-2
(Connected to No.2 FS-2570C)
CONTROLLER-1
(Connected to No.1 FS-2570C)
GND
Note: No.1 FS-2570C has high priority.
(The system power is turned on/off only by No.1 control unit.)
Temperature
sensor for
cooling fun
135
Fig.2.2.2 Transceiver unit, bottom view
