Furuno FS-1570 Service Manual

6.1 Self-test
6-5
6.1.2 RT test
To check RT circuit;
1. Press [1/RT] to show RT menu.
2. Press [3/TEST]. “Tx self test” menu appears and the test is automatically started.
The dummy in the antenna coupler is used during the test.

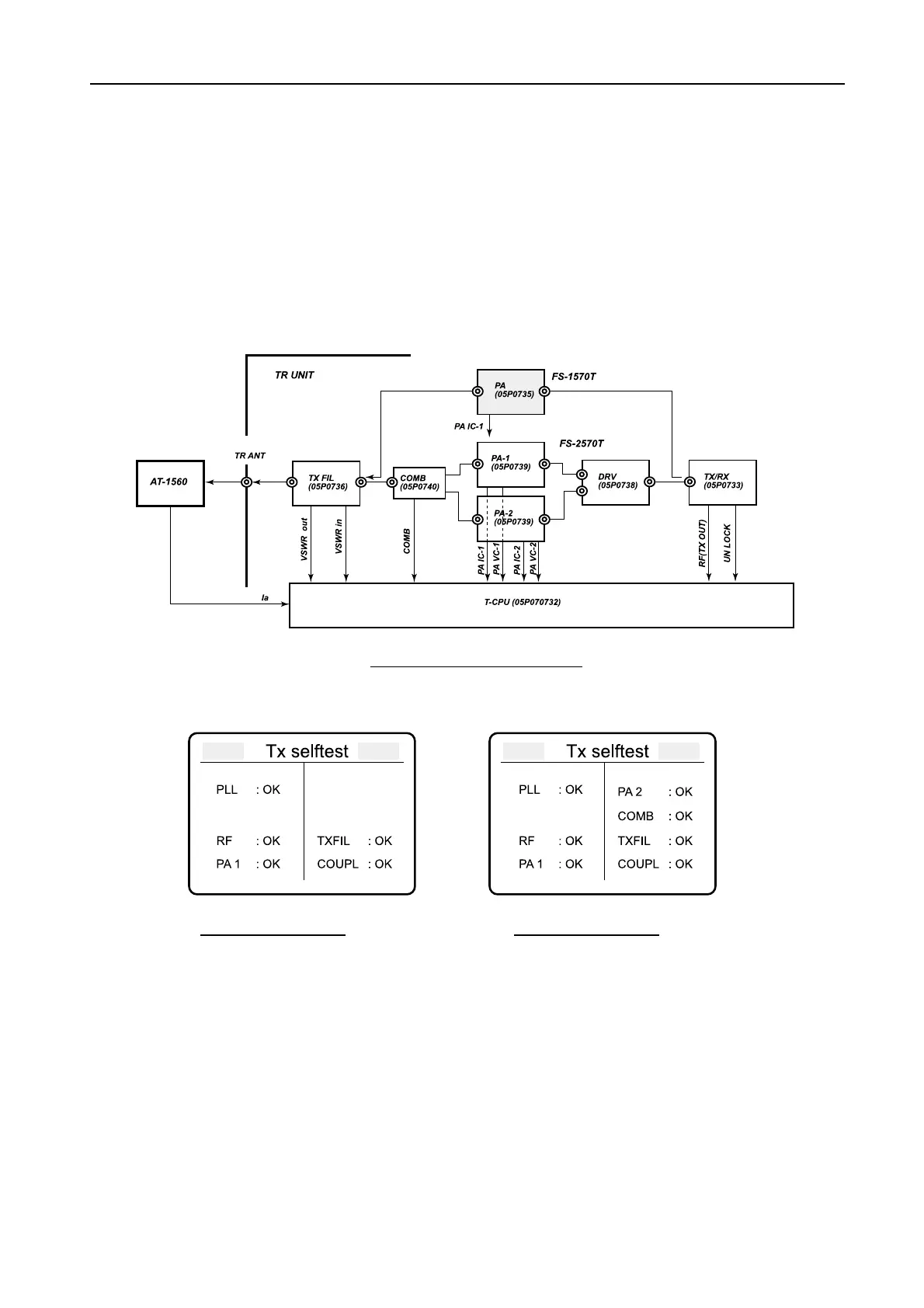

Fig.6.1.3 RT test signal flow
3. The test result looks like the follows. RT test result cannot be printed out.
FS-1570 test result FS-2570 test result
4. Press [CANCEL] to return to RT menu.
