Furuno FS-1570 Service Manual

2.6 Terminal unit, IB-583
2-28
2.6.1 Boards in Terminal Unit
PRINTER
DTE
JUNCTION
CR4: always ON(Not used)
CR5: always ON(Not used)
CR6: always ON(Not used)
CR7: always ON(Not used)
S1, S2, S3 (from left)
Lithium battery
JP1 (To disconnec
t
the battery)
CR3
S5: DIP SW
CR8: always OFF(Not used)
CR9: always OFF(Not used)
S4: DIP SW
Not provided on IB-583
LAN
(Not provided
on IB-583)

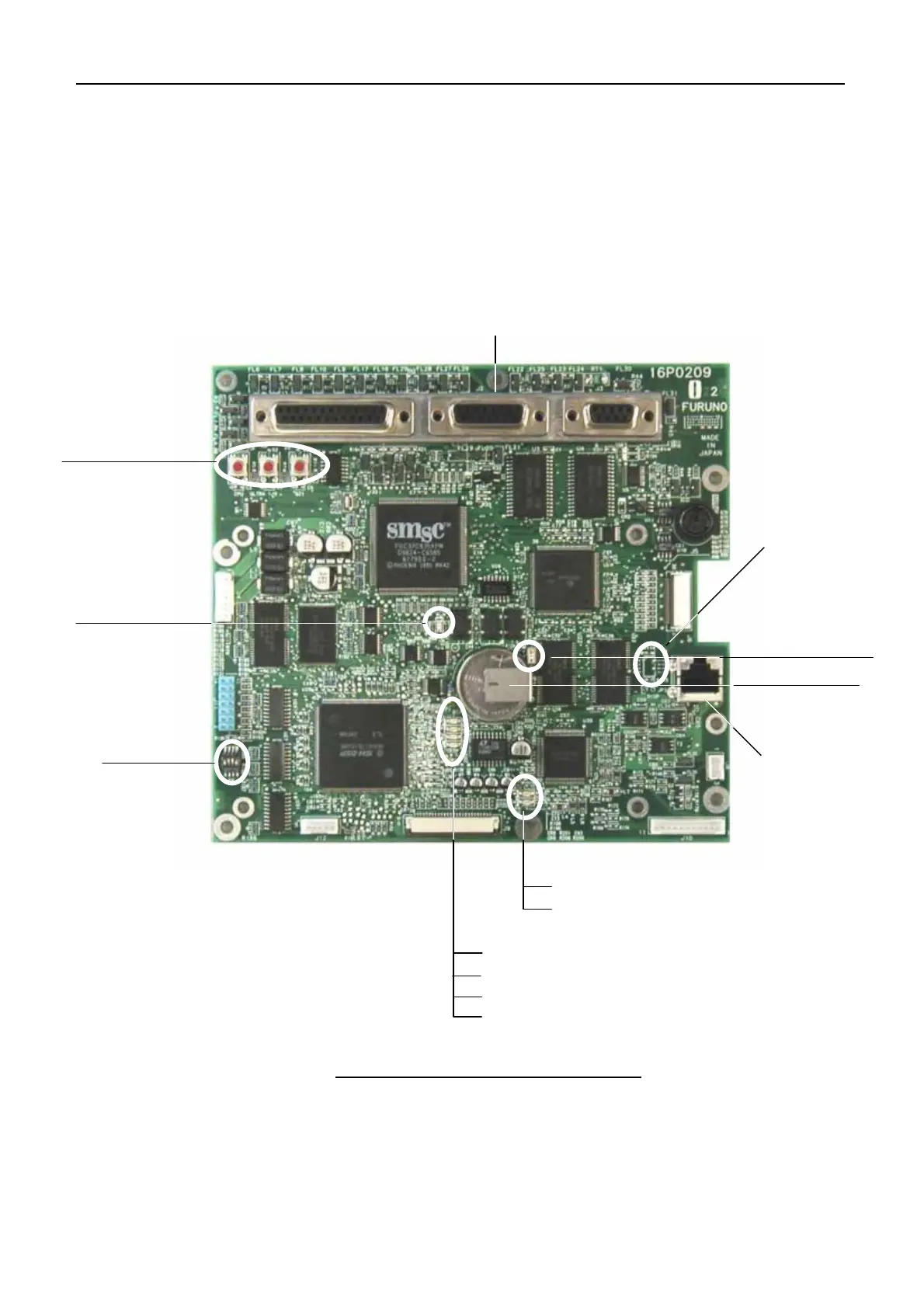

Fig.2.6.8 TERM CPU (16P0209A) board
S1:CPU reset
S2:ULTRA I/O reset
S3:Q2I reset
CPU RUN
Blinking
every second
