Furuno FS-1570 Service Manual

3.4 DIP Switch
3-29
3.4 DIP Switch

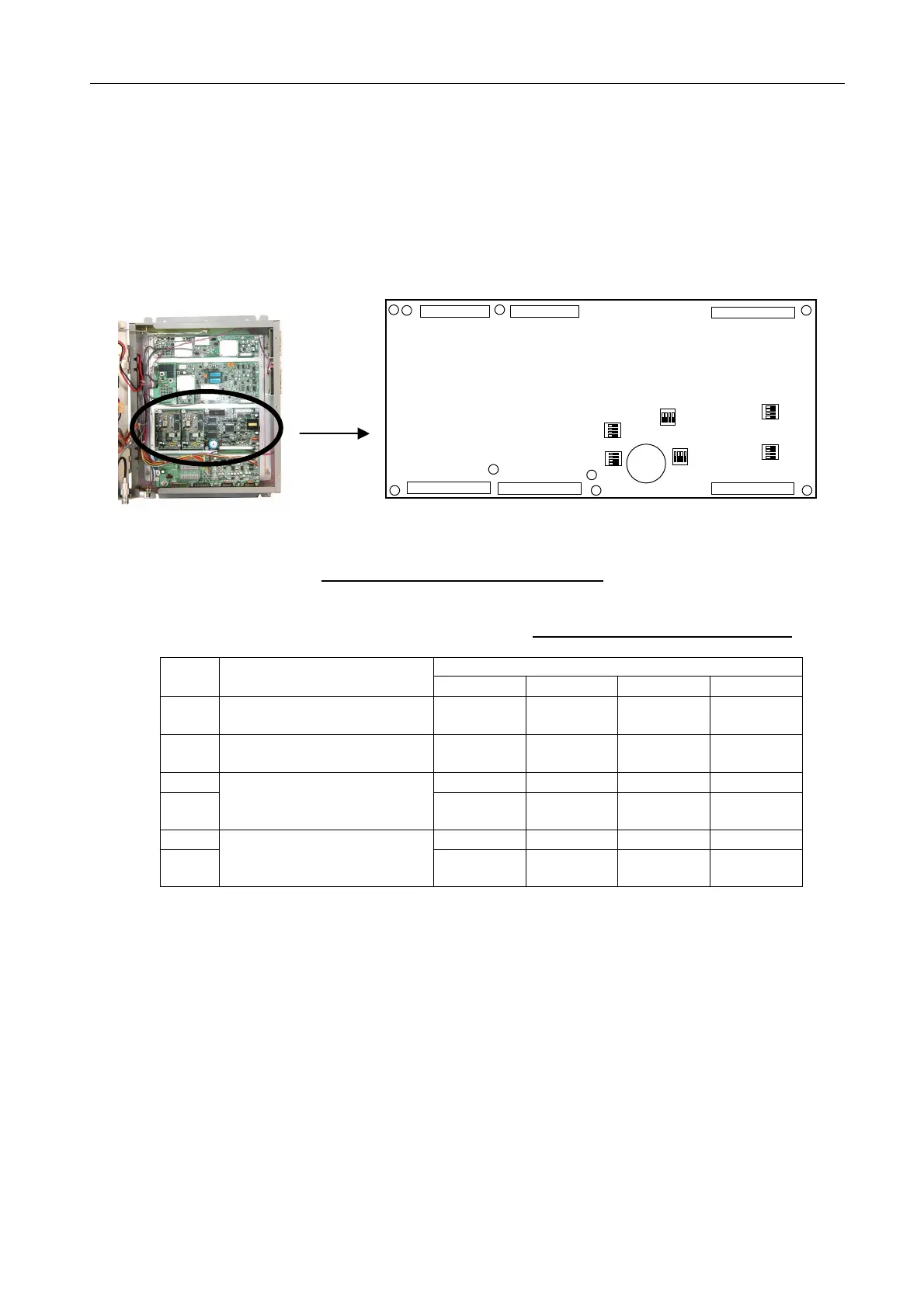

Fig.3.4.1 shows the DIP switch on T-CPU board. Table 3.4.1 lists the function and the
default of the DIP switch.
Fig.3.4.1 DIP switch on T-CPU board
Table 3.4.1 Function of DIP switch
Default Setting
SW Function
#1 #2 #3 #4
S2
Selection of RX data type
(RS-422 or Current Loop)
OFF
(Position)
OFF
(DMC)
OFF
(MIF)
OFF
(N.C)
S3
Selection of MIF data type
(RS-232C or RS-422)
OFF OFF ON ON
S4 ON ON ON ON
S5
Selection of incoming
indicator type
(IC-303-DSC or IC-xxx)
OFF OFF OFF OFF
S6 ON ON ON ON
S7
Selection of distress alert
button type
(DMC-5 or IC-302-DSC)
OFF OFF OFF OFF
J6
J3
J2
J5
05P0732
S5
S4
S2
S3
J4
J1
S6
S7
