Furuno FS-1570 Service Manual

2.3 FS-1570T
2-9
2.3 FS-1570T

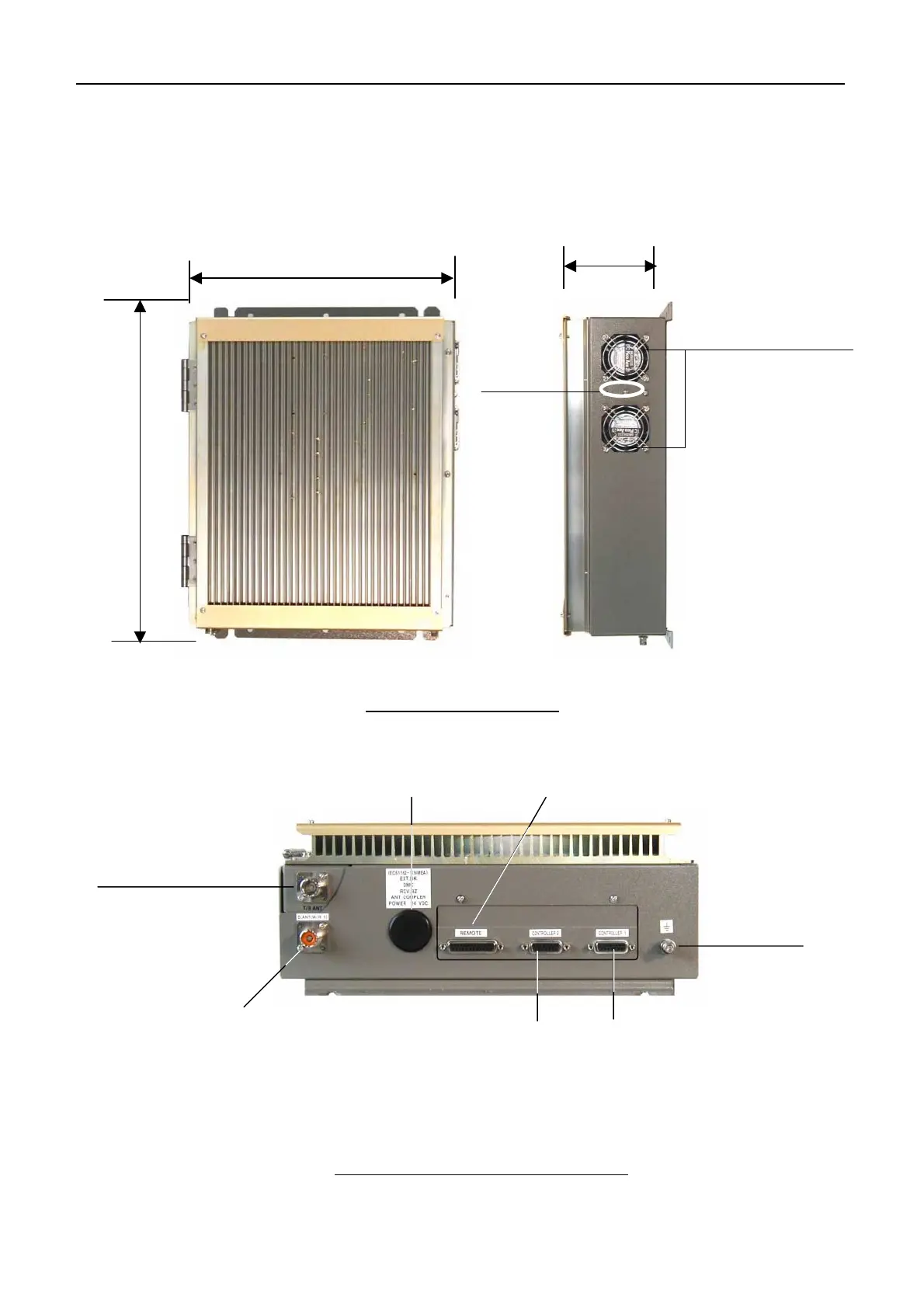

Front view Side view
Fig.2.3.1 Transceiver unit
440
345
135
Connected to AT-1560
Connected to DSC distress/safet
y
watch receiver antenna
Cable inlet
REMOTE
(MODEM and RT program update port)
CONTROLLER-1
(Connected to No.1 FS-2570C)
CONTROLLER-2
(Connected to No.2 FS-2570C)
GND
Note: No.1 FS-2570C has high priority.
(The system power is turned ON/OFF only by No.1 control unit.)
Cooling fan
(Operates when the
temperature rises to 45 °C)
Temperature
sensor for
cooling fan
Fig.2.3.2 Transceiver unit, bottom view
