Furuno FS-1570 Service Manual

3.4 DIP Switch
3-33

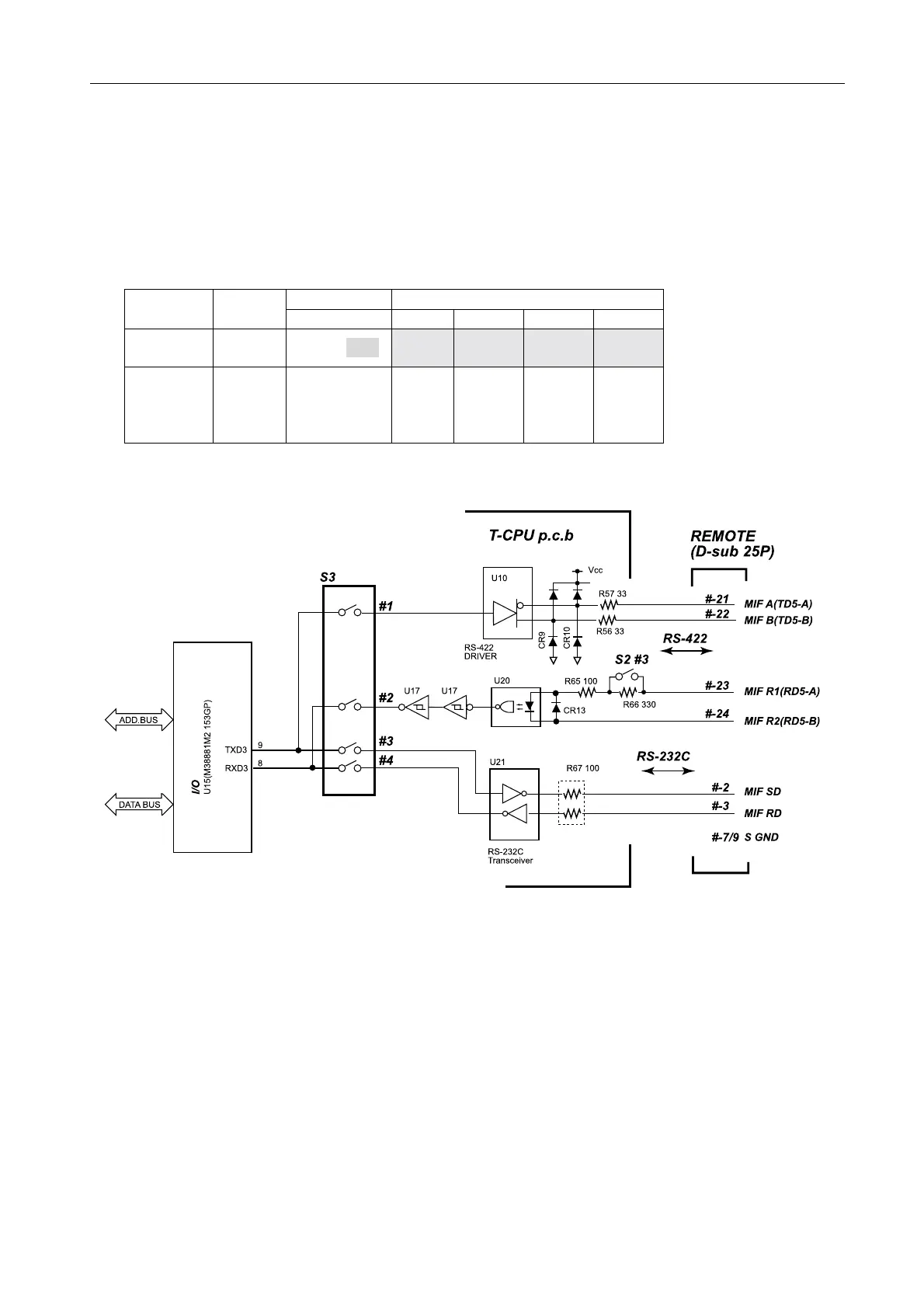

4. Connecting PC
The system can be controlled with the PC connected to “REMOTE” terminal, D-Sub
25P. Depending on the data type from the PC, S2 and S3 is set to as below. Note that pin
numbers to be used are different between data types.
S2 S3
Data Port
#3 #1 #2 #3 #4
RS-232C
MIF SD
MIF RD
ON or OFF OFF OFF ON ON
RS-422
MIF A
MIF B
MIF R1
MIF R2
ON ON ON OFF OFF
* The default is screened.
