Furuno FS-1570 Service Manual

1.2 Configuration of System
1-3
1.2.2 FS-2570 (250W)

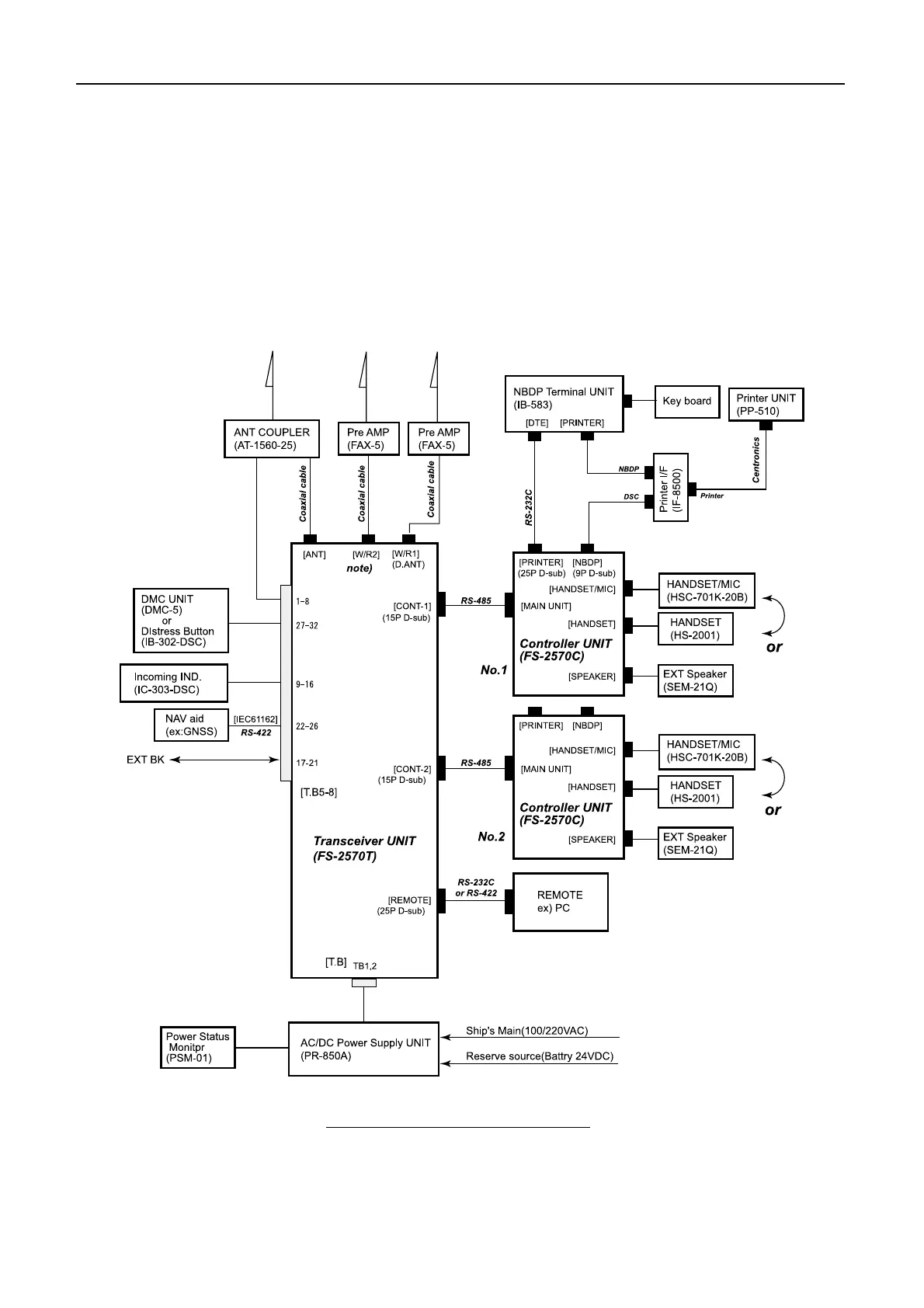

Fig.1.2.2 shows the configuration of FS-2570.
Note)DSC general frequencies watch receiver antenna;
1) Install a DSC watch receiver antenna (FAX-5+2.6 m Whip), or
2) Use MF/HF antenna. When the antenna is used commonly, SSB and NBDP
cannot be used during the scanning of DSC general frequencies.
Fig.1.2.2 Configuration of FS-2570
