1.3 Connection of NBDP terminal, IB-581
1-4
1.3 Connection of NBDP terminal, IB-581
The NBDP terminal IB-581 can be connected to the system by using IF-8500, instead
of IB-583 as below. IB-581 and IB-583 use a different NBDP terminal program.
IB-581 for FS-1570/2570 differs from one for DP-6 terminal program .

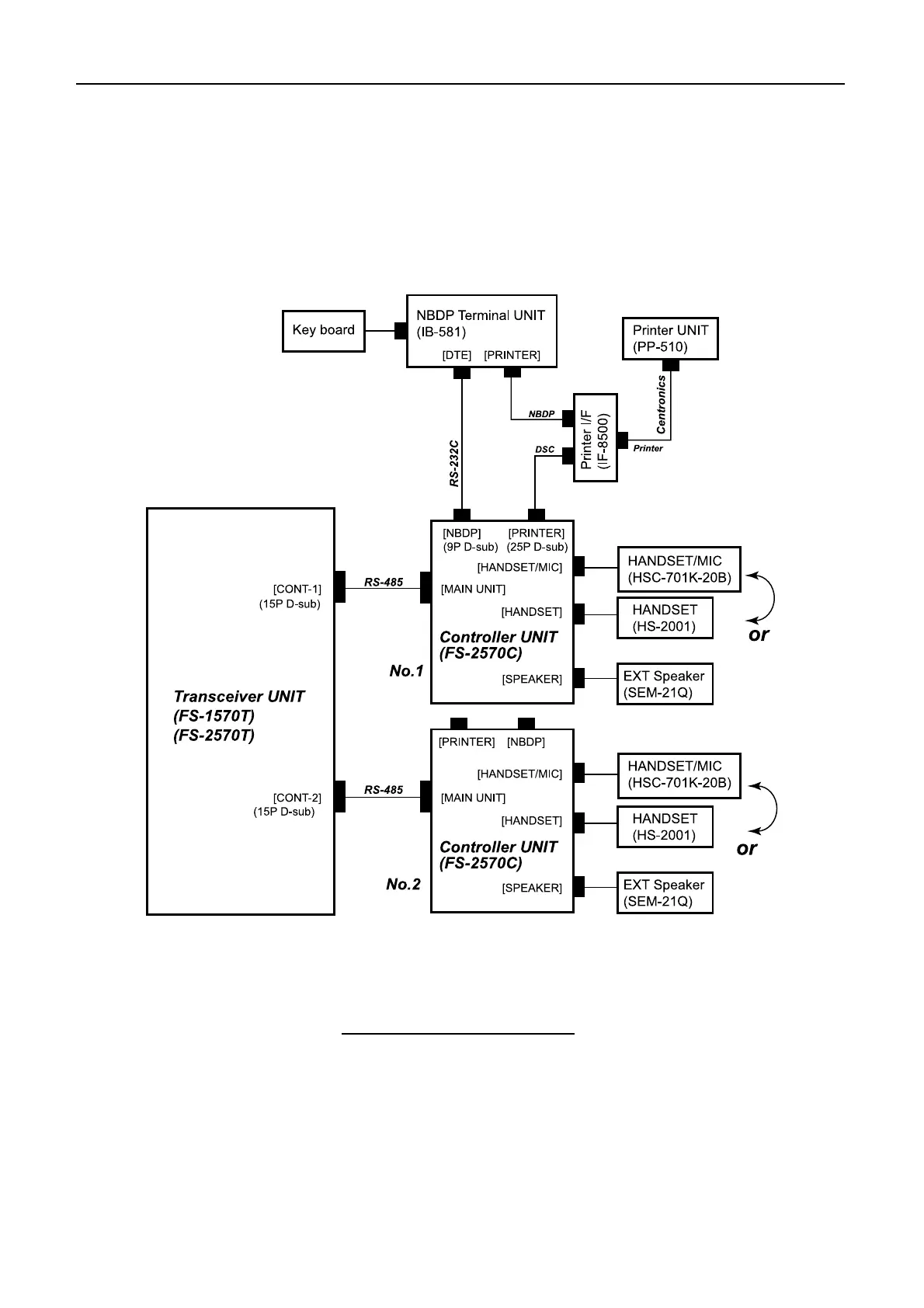

Fig.1.3.1 Connection of IB-581
