3.4 DIP Switch
3-30

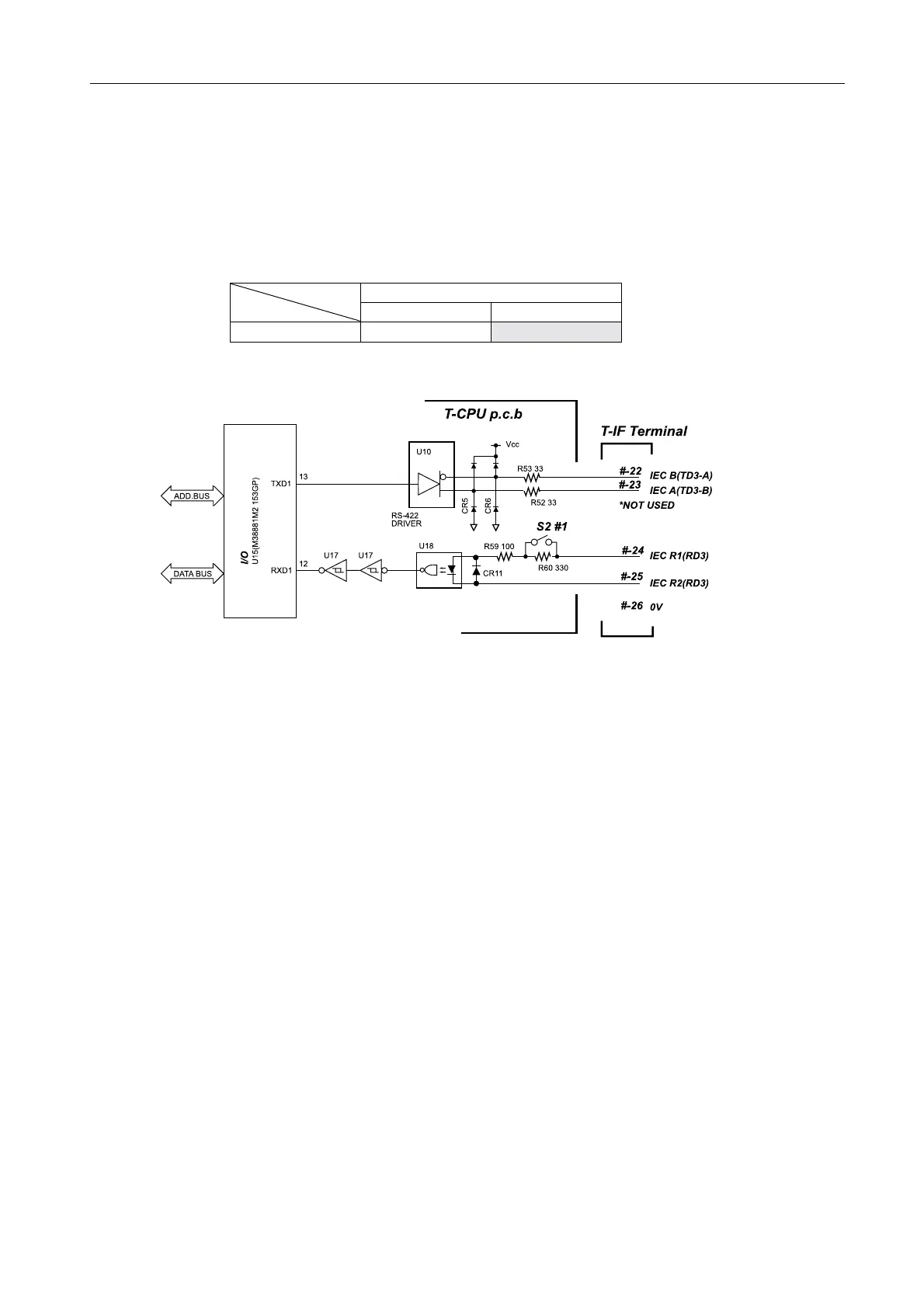

1. Receiving Position data
Either RS-422 or C.Loop signal can be received with the different setting of S2-#1. The
system does not support CIF format. When S2-#1 is set to ON, R60 short circuits to
receive RS-422 signal. IEC TX circuit (#22 and #23 pins) is not used.
RX DATA Spec
DIP SW
RS-422 C. Loop
S2-#1 ON OFF
* The default is screened.
- Position data sentence (IEC-61162-1): GGA>RMC>GLL
- Date and time data sentence: ZDA
To Next Page
