AV-300i Version 2 User’s Guide
—————— Function Description ——————
Ch.1
153

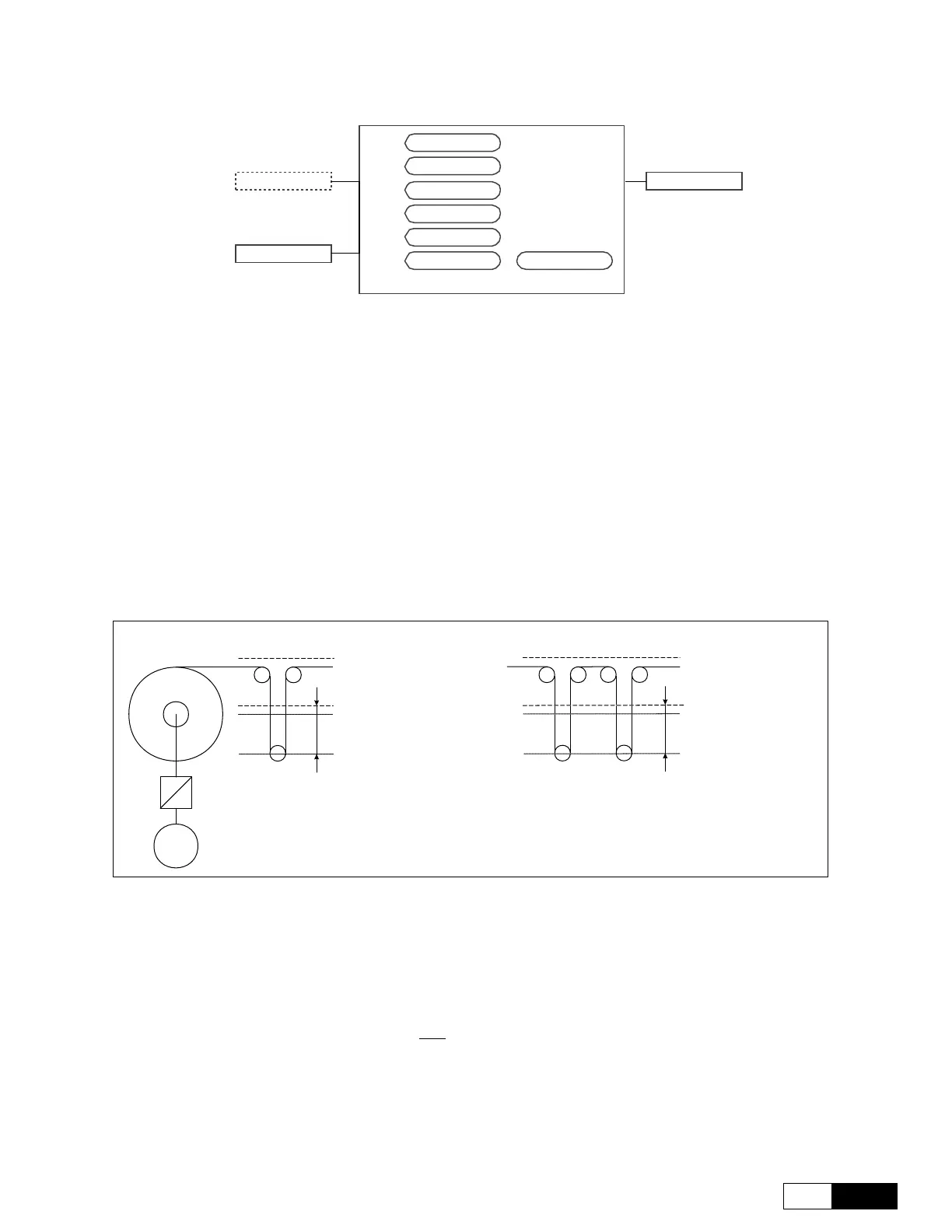

The Diameter Calculation Block is shown in the figure below.
PID MtlPI sel mon
DiaClc start src Diacal PIO
Max deviation
Positioning spd
Gear box r atio
Dancer constant
Diam eter
DCDelta error DCDalta pos
Diameter calc Settings
Max deviation Position of maximum mechanical sealing for the dancer
Positioning spd Positioning speed
Gear box ratio Reduction ratio between motor and winder (<=1)
Dancer constant Measurement of the total material accumulation
Minimum diameter Value of the winder minimum diameter
DiaClc start src Source of the start Diameter Calculation command
Diameter calc Start ?
Diameter calc Press I key
Diameter calc Results
Diameter Calculated diameter
Diacal PIO PI initialization value
DCDelta error Dancer movement
DCDelta pos Winder movement (encoder pulses)
Dancer constant = (
∆
xx2) 2L
M
Gear box ratio
Dancer constant = (
∆
Lx x2) 4
Dancer
Winder/Unwinder
∆
L
electrical 0
Central position
of working
Dancer
Upper limit
switch = +1000 count
Lower limit
switch = -1000 count
∆
L
electrical 0
Central position
of working
Upper limit
switch = +1000 count
Lower limit
switch = -1000 count
Two pitches dancerOne pitch dancer
Figure 1.15.7.1: Diameter Calculation
1.15.7.1 Dancer Constant Measurement
With the dancer placed in a lower limit switch position, perform the self-tuning of the analog input connected to PID fbk src.
Set the Drive keypad on the PID fbk mon parameter.
Measure and multiply by 2 the distance in
mm between the lower mechanical limit switch and the dancer
position, where the PID fbk mon parameter has a 0 value (electric 0 position).
Multiply the calculated value by 2 if the dancer is made of a single pitch, by 4 if it is made of two pitches etc. etc.
as per the above figure.
