GE AV-300I User Manual

GEH-6641E
—————— Block Diagrams ——————
200
Ch.2
SpdZero.vsd
AV-300i AC flux vector
Drive
10/15/99 -- RM
File name:
Issued Date Initials: Revision Date Initials:
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
GE Industrial Systems
Salem, Va. USA
Proprietary Information
Do Not Copy
PRODUCT:
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
ABCDE FGH I J K LMNOPQRS TU ABCDE FGH I J K L

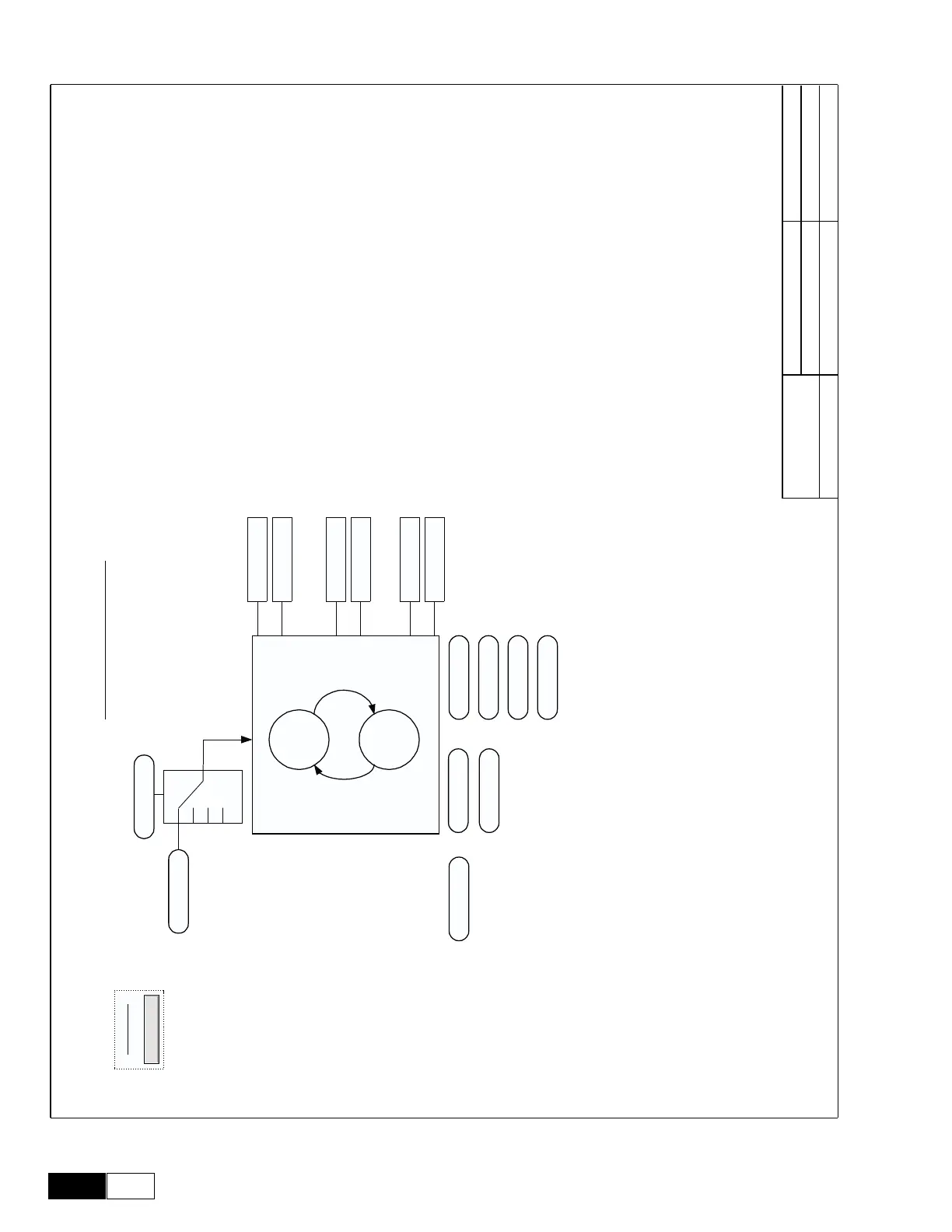

Speed Zero block
Overview
Back
NAVIGATION
04/02/00 -- RNC
.
. . .
Speed0
Gains
Normal
Gains
Ref <> 0Speed = 0
&Ref=0
Spd 0 ref src
Ramp ref
Spd is zero
Int spd 0 ref
0 cnt
Spd 0 enable
Disabled
Spd 0 ref thr
20 rpm
Spd 0 spd delay
500 ms
Spd 0 speed thr
20 rpm
Spd 0 I gain %
10 %
Spd 0 P gain %
10 %
Spd 0 ref delay
1000 ms
Ref is zero Spd is zero dly Ref is zero dly InUse SpdP gain% InUse SpdI gain%
