AV-300i Version 2 User’s Guide
—————— Function Description ——————
Ch.1
71
1.6.3 Analog Output Block (Analog Outputs)
The Blocks of the analog outputs allow to turn a voltage internal signal (or a current signal if the EXP-D20A6
option card is used) into a signal available on the terminal strip. As with the analog inputs, there are a series of
standard outputs on the drive, referred as Std, and a series of outputs available on the expansion cards, referred
as Exp with the “X” suffix. It is possible to obtain
4 expanded analog outputs: 1X, 2X, 3X and 4X.
Their use requires an enabling procedure (enable / disable).
Note! Each analog output has its menu of src, cfg and mon (source, configuration and monitor).
The input of this Block is:
· Analog output 1 src
Description:
I/O CONFIG Analog outputs
Std analog outs
Analog output 1
An out 1 src
An out 1 src
An out 1 cfg
An out 1 scale
An out 1 hi lim
An out 1 lo lim
An out 1 mon
An out 1 mon
Exp ana out en
Analog output 1X
Analog output 2X
Analog output 3X
Analog output 4X
Exp ana out en
I/O CONFIG SAVE PARAMETERS

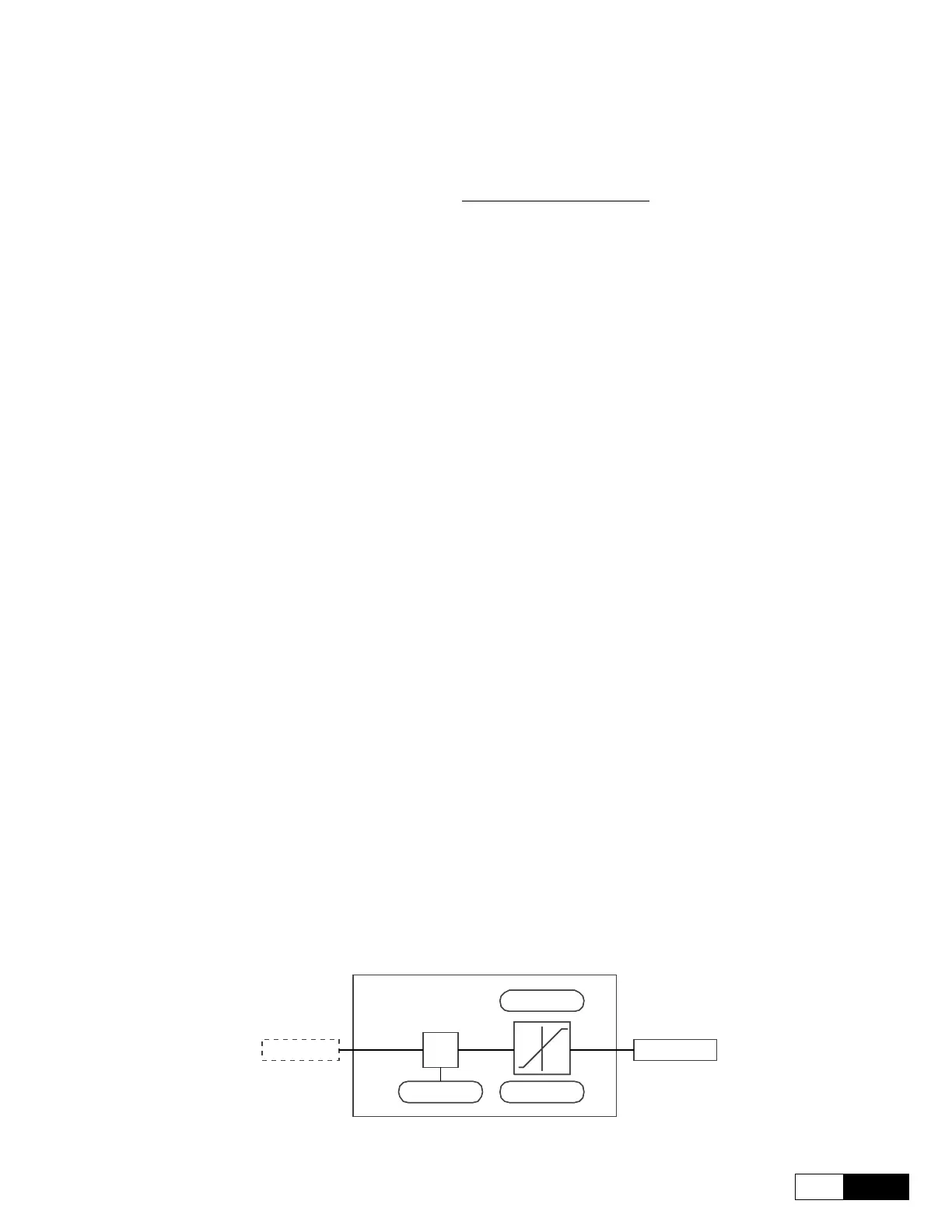

The analog output Block is shown in the figure below.
An out 1 sr c
X
An out 1 l o lim
An out 1 hi li m
An out 1 scale
An out 1 m onAn out 1 sr c
X
An out 1 l o lim
An out 1 hi li m
An out 1 scale
An out 1 m on
