GE AV-300I User Manual

GEH-6641E
—————— Function Description ——————
92
Ch.1
Speed ref src
Speed setpoint
Speed ref 1 src Selection of the source of the speed reference 1
Speed ref 2 src Selection of the source of the speed reference 2
Speed ratio src Selection of the source of speed ratio
Speedref inv src It connects the selected signal to the selector of the multiplier input:
if the signal is 0, multiply by +1, or if the signal is 1, multiply by -1.
Speed ref cfg
Int speed ref 1 Setting of the Int speed ref 1 variable
Int speed ref 2 Setting of the Int speed ref 2 variable
Speed top Speed upper limit (in rpm)
Speed bottom Speed lower limit (in rpm)
Speed ref mon
Ramp out mon Monitor for the output of the Ramp Block
Speed ref 1 mon Speed ref 1 Monitor
Speed ref 2 mon Speed ref 2 Monitor
Jog output Monitor for the output of the Jog Block
Speed draw out Monitor for the Speed draw output
Speed lim state Monitor for the speed Limit state. 1 active limit
Speed setpoint Speed setpoint Monitor
Speed ratio src Source selection
Speed ratio cfg Setting of the speed ratio with a % value
Speed ratio mon Monitor for the speed ratio value

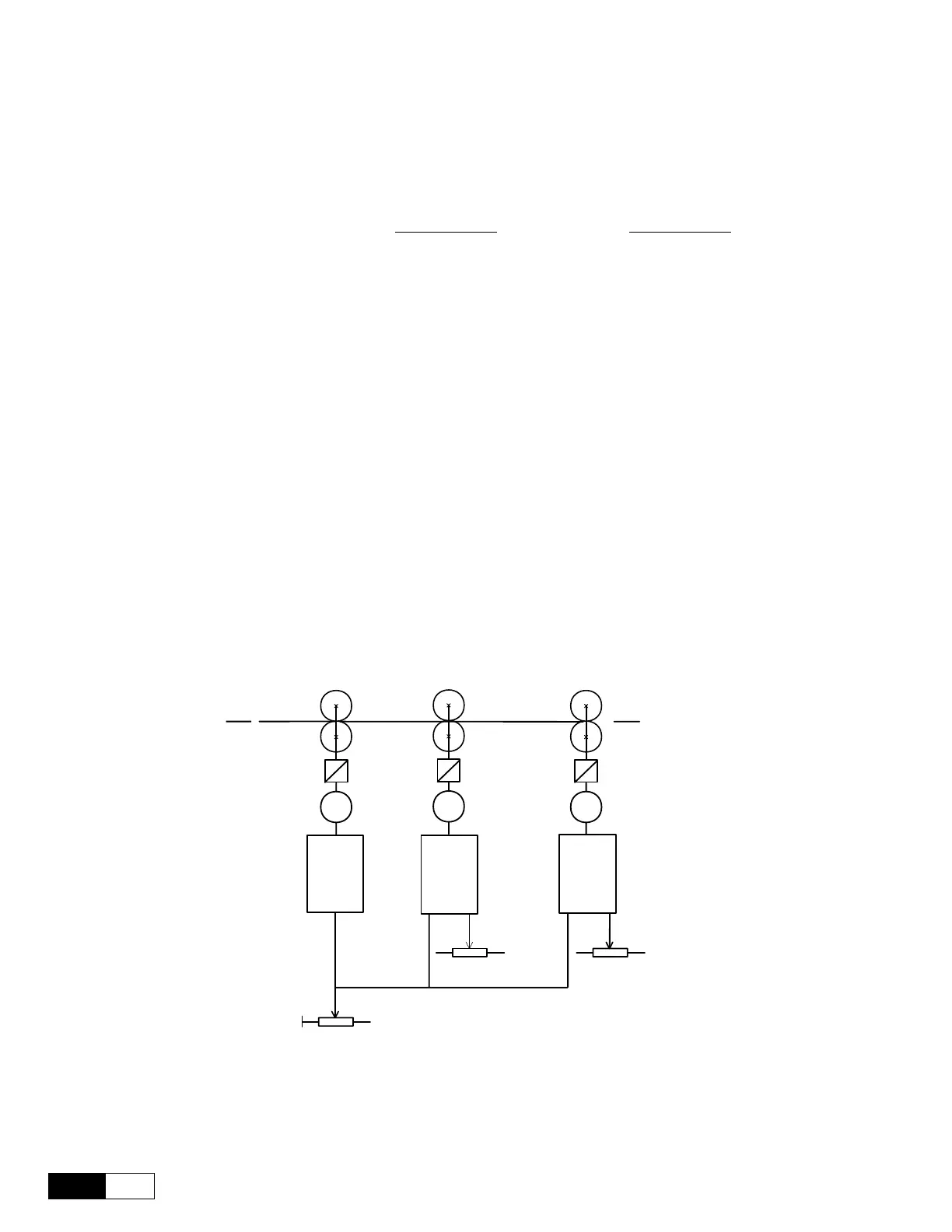

1.8.1.1 Example: Rubber Calender
M
DRIVE A
MASTER = 1000 rpm 1050 rpm 1100 rpm
+
LINE SPEED
DRIVE B
DRIVE C
+
Line speed
ratio1=±5%
Line speed
ratio 2 = ±10%
AN. INPUT
1
AN. INPUT
12
AN. INPUT
12
-
+
-
M
M
Example setting:
DRIVE A (master)
Set: Ramp ref 1 src = An inp 1 output
