AV-300i Version 2 User’s Guide
—————— Block Diagrams ——————
Ch.2
201
AV-300i AC flux vector Drive
10/15/99 -- RM
File name: Issued Date Initials: Revision Date Initials:
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
GE Industrial Systems
Salem, Va. USA
Proprietary Information
Do Not Copy
PRODUCT:
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
ABCDEFGH I J K LMNOPQRST U ABCDEFGH I J K L

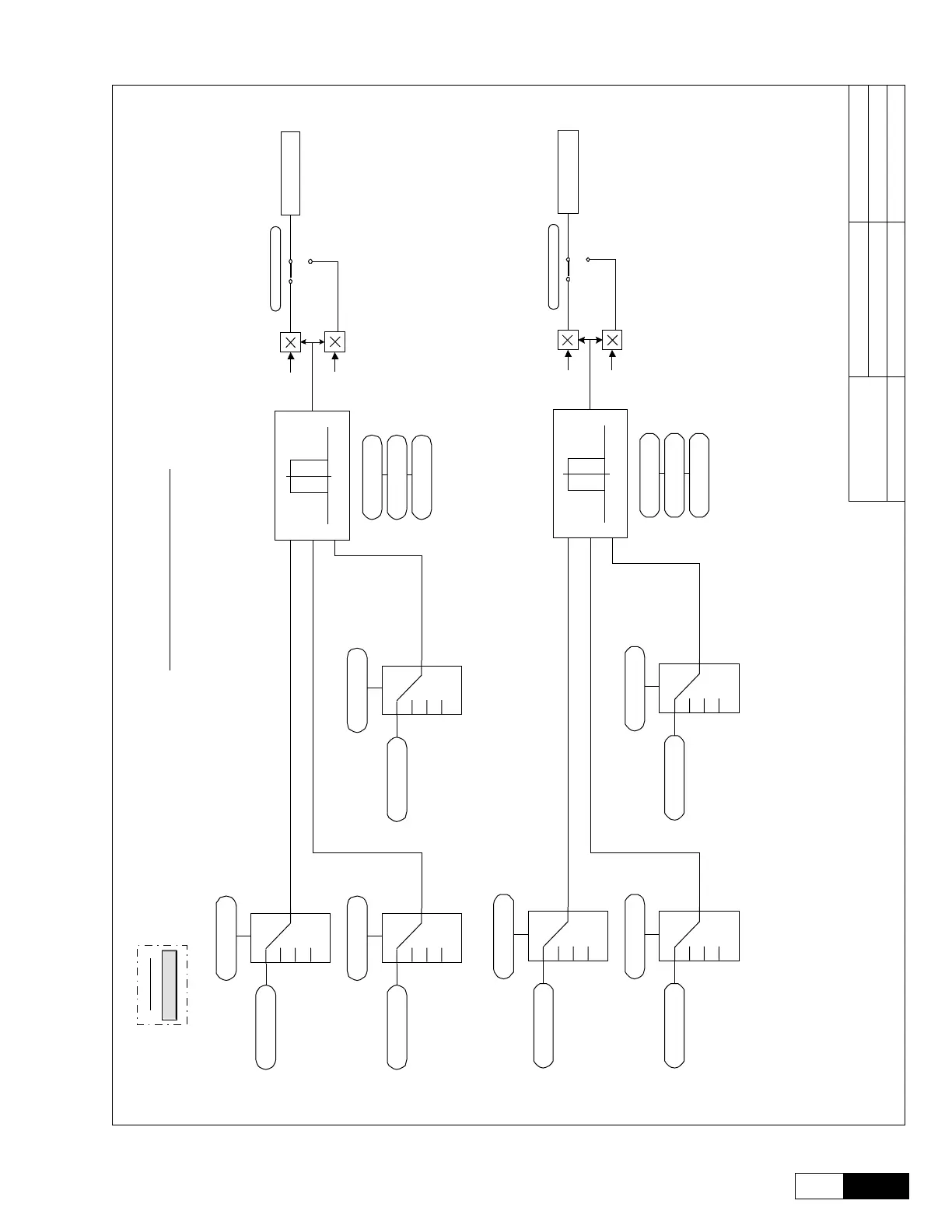

CUSTOM FUNCTIONS
Overview
Back
NAVIGATION
.
. . .
.
. . .
.
. . .
Comparator 1
+1
-1
F
.
. . .
.
. . .
.
. . .
Comparator 2
+1
-1
F
Custom.vsd
07/02/00 -- RNC
Cmp1inp0src
Cmp 1 inp 0
Cmp 1 inp 0
0
Compare 1 output
Cmp1inp1src
Cmp 1 inp 1
Cmp 1 inp 1
0
Cmp1inp2src
Cmp 1 inp 2
Cmp 1 inp 2
0
Cmp 1 function
None
Cmp 1 window
0 cnt
Cmp 1 delay
0s
Cmp 1 inversion
Cmp2inp0src
Cmp 2 inp 0
Cmp 2 inp 0
0
Compare 2 output
Cmp2inp1src
Cmp 2 inp 1
Cmp 2 inp 1
0
Cmp2inp2src
Cmp 2 inp 2
Cmp 2 inp 2
0
Cmp 2 function
None
Cmp 2 window
0 cnt
Cmp 2 delay
0s
Cmp 2 inversion
