Equipment Overview: Equipment Description
2-10 MAC 5000 System — 2000657-057, Revision B
Acquisition Module
:$51,1*
To ensure defibrillator protection and protection
against high-frequency burns, use only the CAM-14
acquisition module with this equipment.
Otherwise, serious injury could result.
á If you enable the Preview before analysis function, press (E)
to view the data. Then, either press (E) again to analyze the
data or press (C) to discard the data.

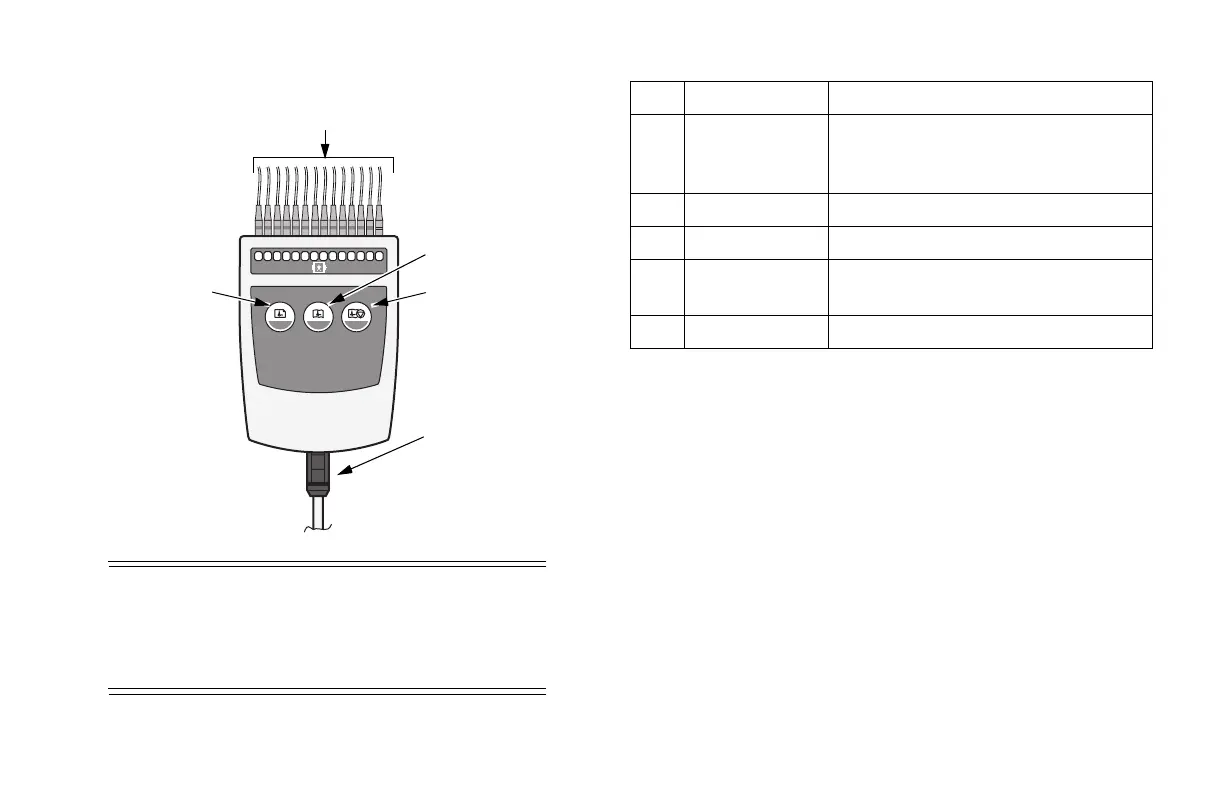

231
N R C1 C2 C3 A1 A2 A3 A4 C4 C5 C6 L F
A
B
C
D
E
161B
Name Description
A leadwires Attach to the patient’s electrodes. The
acquisition module uses either 10 or 14
leadwires.
B rhythm button Press to print a rhythm strip.
C stop writer button Press to stop the writer from printing.
D acquisition
module cable
Insert into the system’s internal acquisition
module connector.
E ECG button Press to record an ECG.
