GE Power Quality Meter Series User Manual

GE Power Management PQM Power Quality Meter 4-27
4 PROGRAMMING 4.3 S2 SYSTEM SETUP
4
4.3.4 SWITCH INPUTS

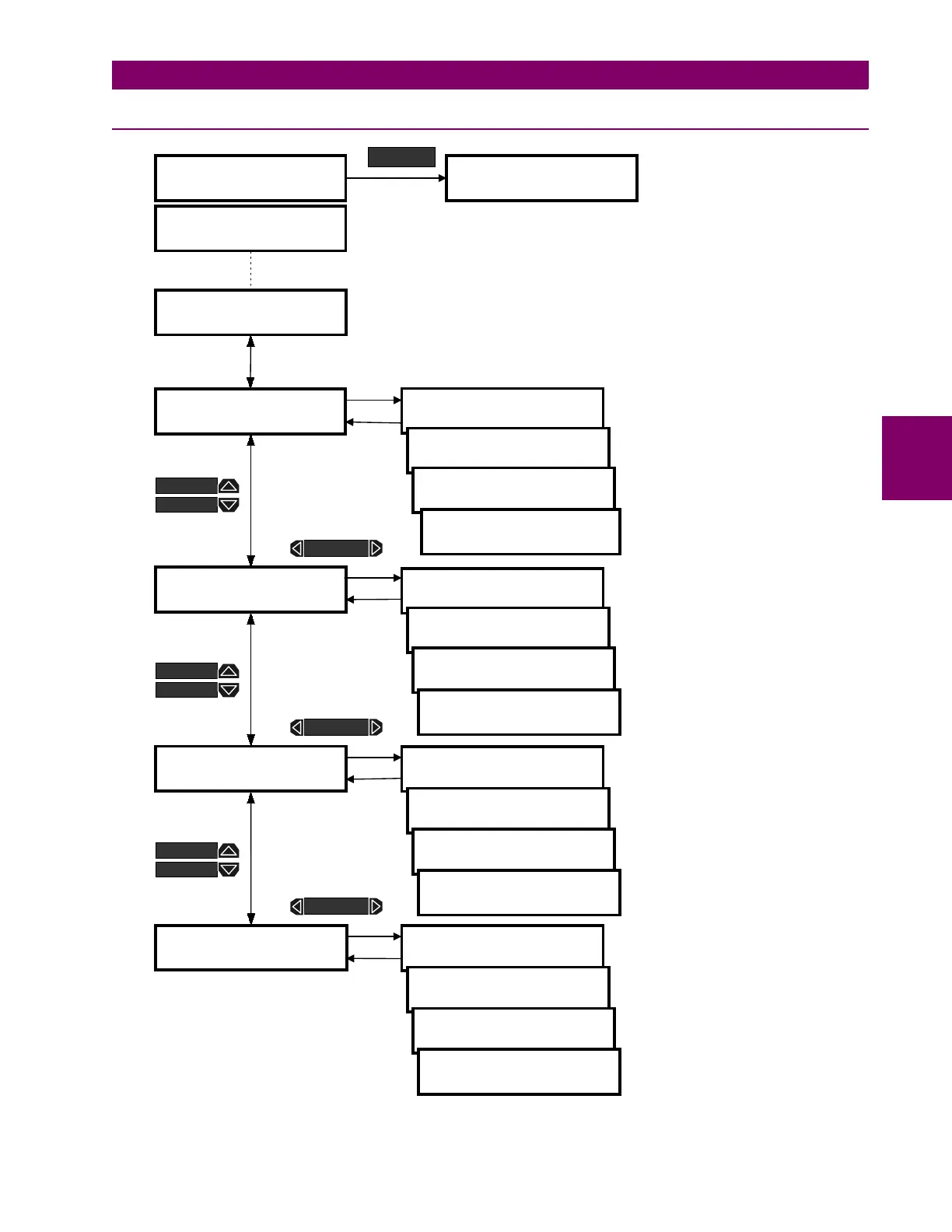

Figure 4–16: SETPOINTS PAGE 2 – SYSTEM SETUP / SWITCH INPUTS
]] SETPOINTS
]] S2 SYSTEM SETUP
]] SETPOINTS
]] S3 OUTPUT RELAYS
SETPOINT
] CURRENT/VOLTAGE
] CONFIGURATION
] ANALOG INPUT
]
SWITCH A NAME:
SWITCH INPUT A
SWITCH A FUNCTION:
NOT USED
Range: 20 alphanumeric characters
SWITCH A ACTIVATION:
OPEN
SWITCH A TIME DELAY:
0.0 s
SWITCH B NAME:
SWITCH INPUT B
SWITCH B FUNCTION:
NOT USED
SWITCH B ACTIVATION:
OPEN
SWITCH B TIME DELAY:
0.0 s
SWITCH C NAME:
SWITCH INPUT C
SWITCH C FUNCTION:
NOT USED
SWITCH C ACTIVATION:
OPEN
SWITCH C TIME DELAY:
0.0 s
Range: 0.0 to 600.0 s; Step 0.1 s
Range: OPEN, CLOSED
Range: see
NOTE above
] SWITCH INPUT A
]
] SWITCH INPUT B
]
] SWITCH INPUT C
]
SWITCH D NAME:
SWITCH INPUT D
SWITCH D FUNCTION:
NOT USED
SWITCH D ACTIVATION:
OPEN
SWITCH D TIME DELAY:
0.0 s
] SWITCH INPUT D
]
NOTE: Range for Switch A, B, C, D Function (below):
NOT USED, ALARM, AUX 1, AUX 2, AUX 3, NEW DEMAND PERIOD,
SETPOINT ACCESS, SELECT ANALOG OUT, SELECT ANALOG IN, PULSE
INPUT 1, PULSE INPUT 2, PULSE INPUT 3, PULSE INPUT 4, CLEAR
ENERGY, CLEAR DEMAND
Range: 20 alphanumeric characters
Range: see
NOTE above
Range: OPEN, CLOSED
Range: 0.0 to 600.0 s; Step 0.1 s
Range: 20 alphanumeric characters
Range: see
NOTE above
Range: OPEN, CLOSED
Range: 0.0 to 600.0 s; Step 0.1 s
Range: 20 alphanumeric characters
Range: see
NOTE above
Range: OPEN, CLOSED
Range: 0.0 to 600.0 s; Step 0.1 s
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
