HEIDENHAIN iTNC 530 163

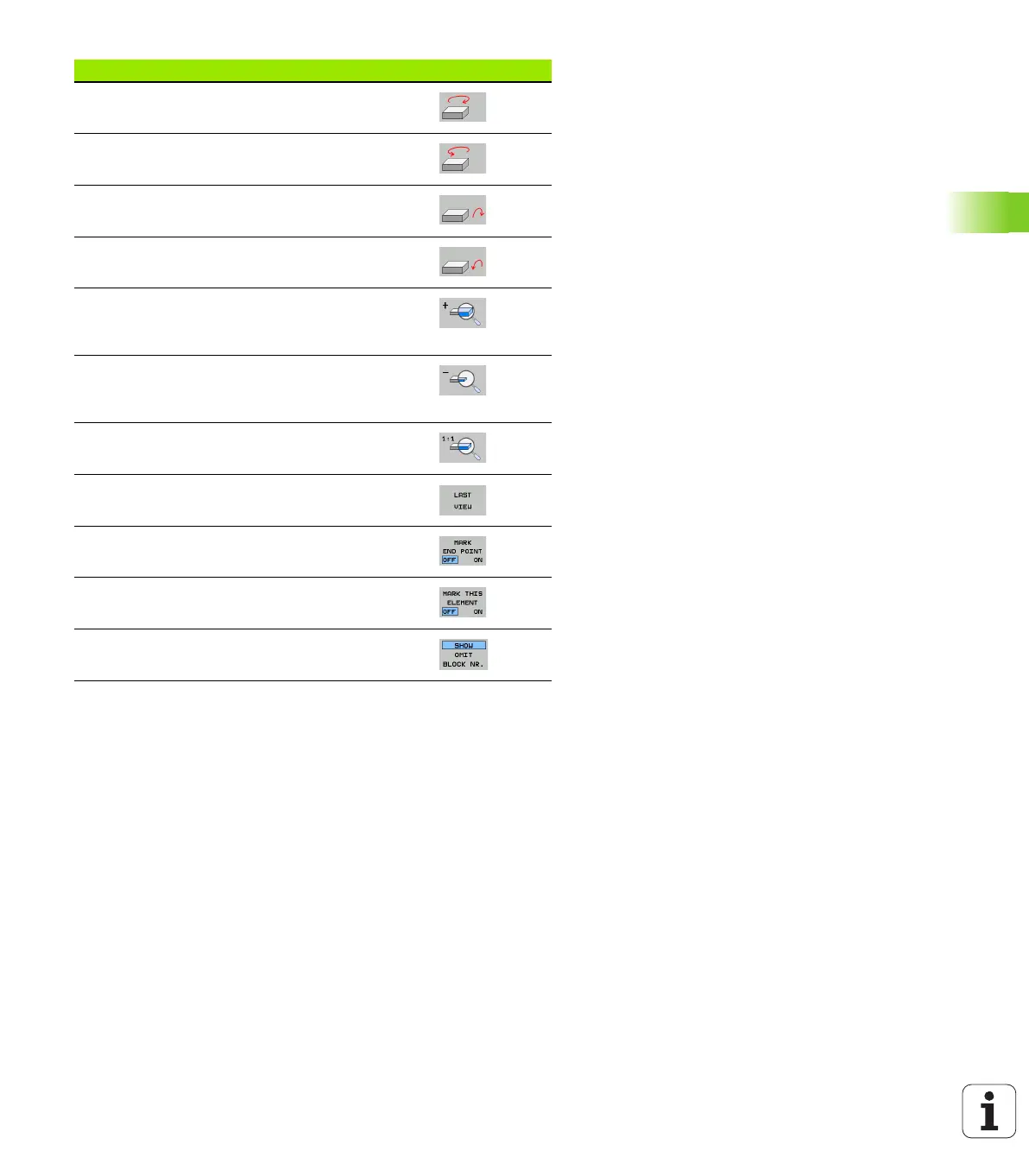

4.5 3-D line graphics (FCL2 function)
Rotate workpiece clockwise
Rotate workpiece counterclockwise
Tilt workpiece backward
Tilt workpiece forward
Magnify the graphic stepwise If the view is
magnified, the TNC shows the letter Z in the
footer of the graphic window
Reduce the graphic stepwise If the view is
reduced, the TNC shows the letter Z in the footer
of the graphic window
Show workpiece at original size
Show workpiece in the last active view
Show/hide programmed end points with a dot on
the line
Do or do not highlight the selected NC block of
the 3-D line graphics in the left window
Do or do not show block numbers
Function Soft key

HEIDENHAIN ITNC 530 Specifications

General

Control Type	CNC
Look-ahead	Yes
Spindle control	Yes
Touch probe cycles	Yes
Operating voltage	24 V DC
Programming	Conversational and DIN/ISO programming
Interpolation	Linear, Circular, Helical
Data Interface	Ethernet, USB, RS-232
Memory	1 GB
Programming Language	HEIDENHAIN plain language
Operating Modes	Manual, Automatic, MDA
Software Options	Various software options available
