HEIDENHAIN ITNC 530 User Manual

HEIDENHAIN iTNC 530 57

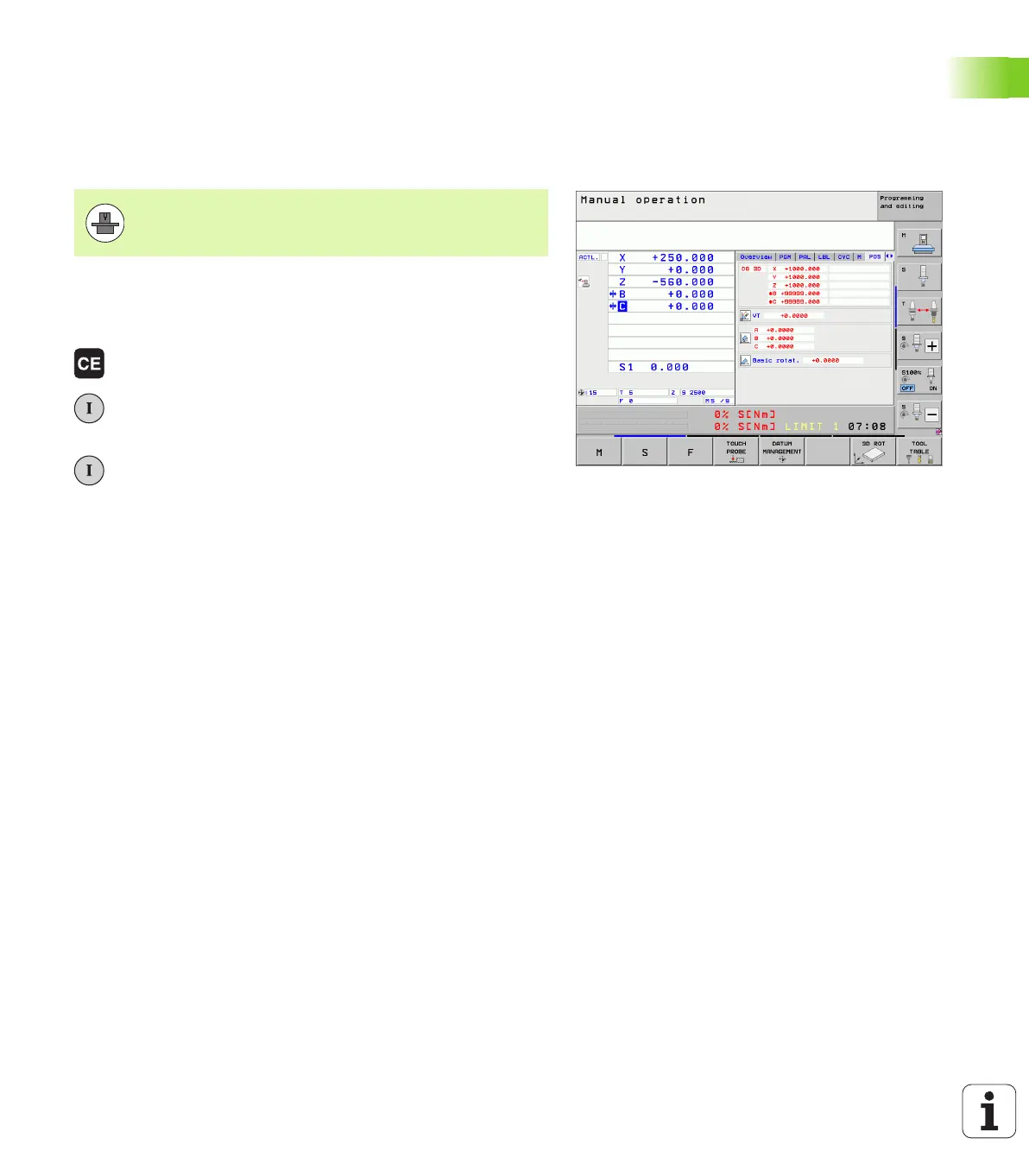

1.2 Machine switch-on
1.2 Machine switch-on
Acknowledging the power interruption and
moving to the reference points
 Switch on the power supply for control and machine. The TNC starts
the operating system. This process may take several minutes. Then
the TNC will display the message "Power interrupted" in the screen
header
 Press the CE key: The TNC compiles the PLC program
 Switch on the control voltage: The TNC checks
operation of the emergency stop circuit and goes into
the reference run mode
 Cross the reference points manually in the displayed
sequence: For each axis press the machine START
button. If you have absolute linear and angle encoders
on your machine there is no need for a reference run
The TNC is now ready for operation in the Manual Operation mode.
Further information on this topic
 Traversing the reference marks: See "Switch-on", page 564
 Operating modes: See "Programming and Editing", page 83
Switch-on and crossing the reference points can vary
depending on the machine tool. Your machine manual
provides more detailed information.

HEIDENHAIN ITNC 530 Specifications

General

Control Type	CNC
Look-ahead	Yes
Spindle control	Yes
Touch probe cycles	Yes
Operating voltage	24 V DC
Programming	Conversational and DIN/ISO programming
Interpolation	Linear, Circular, Helical
Data Interface	Ethernet, USB, RS-232
Memory	1 GB
Programming Language	HEIDENHAIN plain language
Operating Modes	Manual, Automatic, MDA
Software Options	Various software options available
